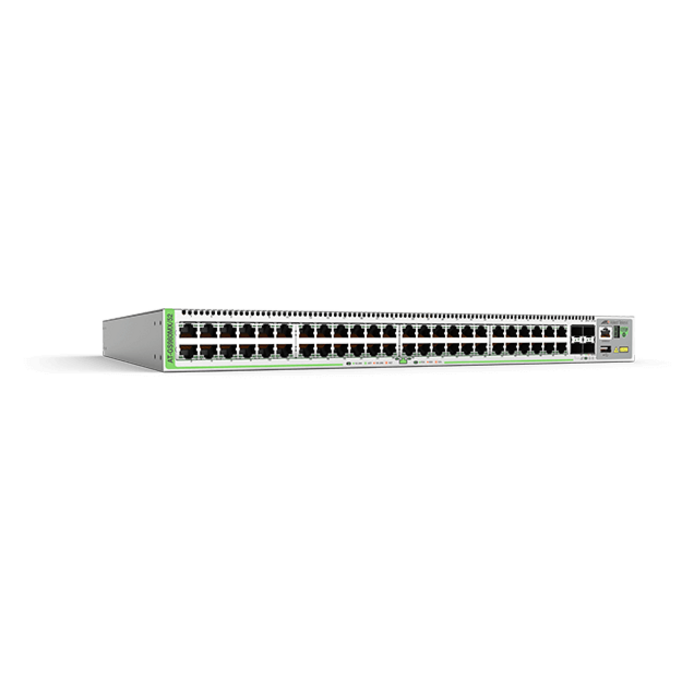

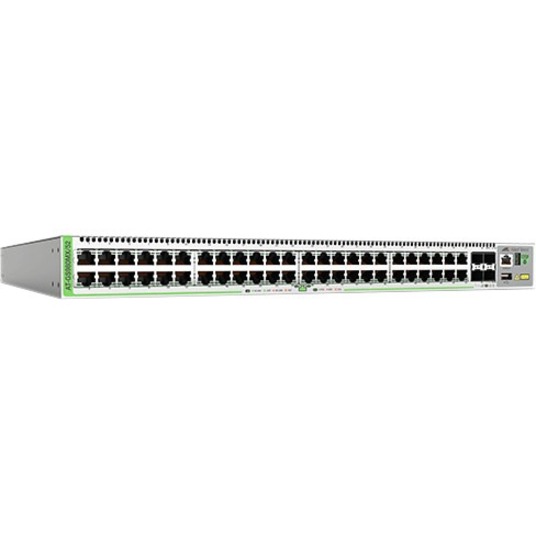

Allied Telesis CentreCom GS980MX/52 Layer 3 Switch

Stackable Multi-Gigabit Layer 3 Lite Switches

The Allied Telesis Centre COM GS980MX Series of Layer 3 Gigabit switches feature high-capacity, resiliency and easy management. Power over Ethernet models with Multi-Gigabit support make them an ideal solution for high-speed connectivity at the network edge.

Overview

Allied Telesis GS980MX Series are high-performing, feature-rich, and versatile for today's networks. With Gigabit/Multi-Gigabit ports and 10 Gigabit uplinks, plus the power of Allied Telesis Virtual Chassis Stacking (VCStack?), the GS980MX Series enable flexible deployment and a resilient solution.

The Power over Ethernet models offer 2.5G and 5G Multi-Gigabit ports to support connecting and powering high-speed Wi-Fi 6 wireless networks, and other high bandwidth applications. The GS980MX/10HSm can provide up to 90 Watts (PoE++) per port. This enables powering high power devices such as high resolution PTZ cameras with heater/blowers for outdoor applications, enhanced infrared lighting, and more.

Specifications | Performance

• 10KB L2 and 9KB L3 jumbo frames

• 4094 configurable VLANs

• Up to 16K MAC addresses

• 1GB DDR3 SDRAM

• 256MB NAND flash memory

• Packet Buffer memory: 1.5MB

Expandability

• Stack up to 4 units in a VCStack

Diagnostic tools

• Active Fiber Monitoring detects tampering on optical links

• Built-In Self test (BIST)

• Cable fault locator (TDR)

• Find-me device locator

• Automatic link flap detection and port shutdown

• Optical Digital Diagnostic Monitoring (DDM)

• Ping polling for IPv4 and IPv6

• Port mirroring

• Trace Route for IPv4 and IPv6

• Uni-Directional Link Detection (UDLD)

IP Features

• Equal Cost Multi Path (ECMP) routing

• Static routing and RIP for IPv4

• Static routing for IPv6

• Device management over IPv6 networks with SNMPv6, Telnetv6, SSHv6

• IPv6 hardware ACLs

• Log to IPv6 hosts with Syslog v6

• IPv6 Ready certified

Management

• Front panel 7-segment LED provides at-a-glance status and fault information

• Allied Telesis Autonomous Management Framework (AMF) enables powerful centralized management and zero-touch device installation and recovery

• Manage the GS980MX Series with Vista Manager EX-our graphical single-pane-of-glass monitoring and management tool for AMF networks, which also supports wireless and third party devices

• AMF Security (AMF-Sec) enables a self-defending network-managing the GS980MX Series (or other AMF switches) to automatically block the spread of malware by quarantining suspect end user devices

• Console management port on the front panel for ease of access
