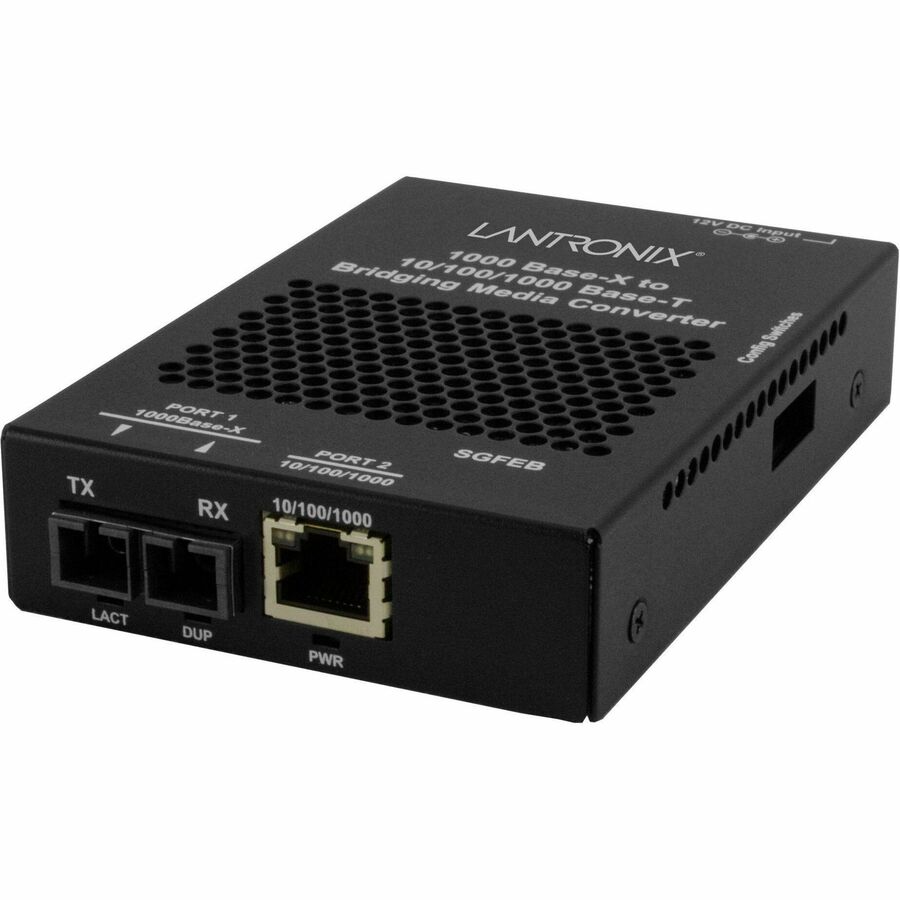

Stand-alone Gigabit Ethernet Media and Rate Converter 10/100/1000Base-T to 1000Base-SX/LX
10/100/1000B-T to 1000BASE-LX SM LC 10km with EU Pwr Supply
- SKU
- SGFEB1019-130-EU
- Category
- Transceivers/Media Converters
MSRP$803.00
$582.84
Save 27%Back ordered — ships when restocked.
Genuine Transition Networks through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- SGFEB1019-130-EU
- Category
- Transceivers/Media Converters
Overview
The SGFEB Series is a stand-alone media converter that provides an interface between 10/100/1000Base-T ports and 1000Base-SX/LX ports, allowing users to integrate fiber optic cabling into 10/100/1000 copper environments. Operating at Layer 2, the data link layer, this converter not only converts copper to fiber, it also provides rate conversion allowing legacy 10/100 copper devices to connect to 1000Base-SX/LX fiber. NDAA Compliant, TAA Compliant
Highlights
- Auto Negotiation
- Auto-MDI/MDIX
- Link Pass Through
- Far End Fault FEF
- Remote Fault Detect
- Provides rate conversion while also increasing transmission distances
- Supports multimode or single mode fiber
- Versions available with fixed SC or LC optics, as well as modular SFP optics
- Long haul transmission distances are supported with a variety of SFP modules
- SFP ports support dual speeds: 100/1000/SGMII
- Multiport versions provide 3 or 4 port switch functionality or provide redundant fiber links
- Supports IEEE 802.3az Energy Efficient Ethernet
Specifications
| Package Contents |
|
|---|---|
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | SGFEB1019-130-EU |
| Maximum Distance Supported | 10 km |
| Power Source | Power Supply |
| Limited Warranty | Lifetime |
| Weight (Approximate) | 2 lb |
| Form Factor | Wall Mountable, Standalone, Rail-mountable |
| Manufacturer | Lantronix, Inc |
| Product Model | SGFEB1019-130 |
| Product Name | Stand-alone Gigabit Ethernet Media and Rate Converter |
| Network Technology | 1000Base-LX, 10/100/1000Base-T |
| Power Consumption | 2.20 W |
| Product Series | SGFEB |
| Brand Name | Lantronix |
| Height | 1" |
| Width | 3.3" |
| Depth | 4.8" |
| Ethernet Technology | Gigabit Ethernet |
| USB | No |
| DVI | No |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Management Port | No |
| Number of LC Ports | 1 |
| Media Type Supported | Twisted Pair, Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Total Number of Ports | 2 |
| LC Port Type | Duplex |
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE) |
| Fiber Optic Cable Wavelength | 1310 nm |
