Stand-alone Fast Ethernet Remotely Managed NID 10/100/1000Base-T to 100Base-FX with OAM/IP-Based Management
Transition Networks

Stand-alone Fast Ethernet Remotely Managed NID 10/100/1000Base-T to 100Base-FX with OAM/IP-Based Management

10/100/1000BASET TO 100BASELX10, SC SM, 3.3V W/NA

SKU
S2220-1014-NA
Category
Transceivers/Media Converters

MSRP$1,058.00

$768.30

Save 27%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Transition Networks through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
S2220-1014-NA
Category
Transceivers/Media Converters

Overview

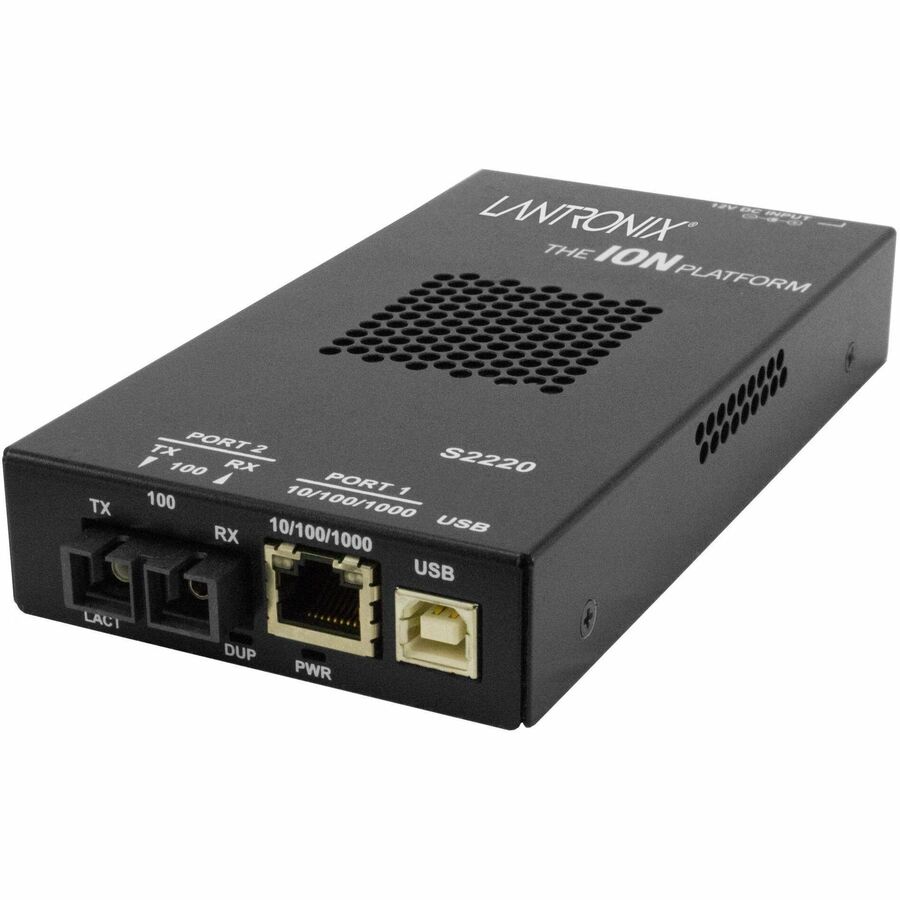

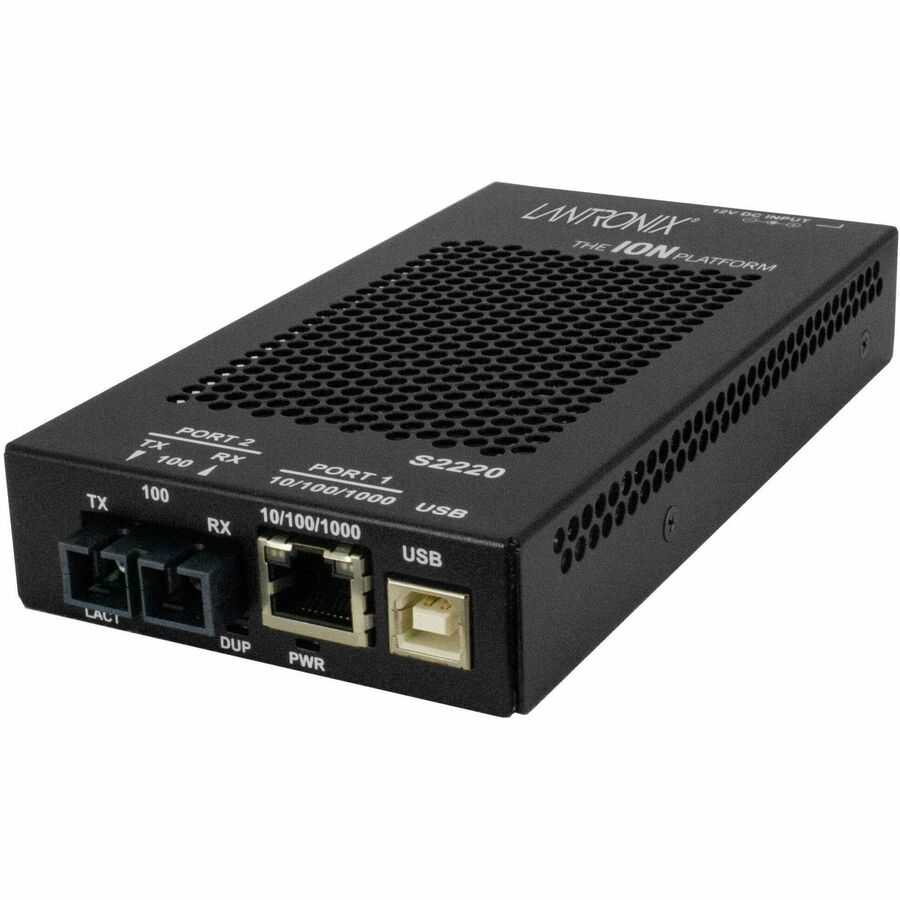

The ION S2220 is a stand-alone managed Network Interface Device NID that provides an interface between 10/100/1000Base-T ports and 100Base-FX ports, allowing users to manage their links while integrating fiber optic cabling into 10/100/1000 copper environments. NDAA Compliant, TAA Compliant

Highlights

  • As a remotely managed device, can be managed individually via an IP address or it can be managed in-band, over the fiber when linked to a C2220 card installed in a managed ION chass
  • Advanced features like IEEE 802.3ah Link OAM, VLAN, QoS, SSH/SSL, jumbo frame support, and bandwidth allocation
  • Offers a variety of methods for the secure delivery of Ethernet services in business and mobile backhaul applications

Specifications

Package Contents
  • S2220-1014 Media Converter Power Supply (North America)
Product TypeTransceiver/Media Converter
Manufacturer Part NumberS2220-1014-NA
Maximum Distance Supported10 km
Power SourcePower Supply
Limited WarrantyLifetime
Weight (Approximate)2 lb
Form FactorStandalone
ManufacturerLantronix, Inc
Product ModelS2220-1014
Product NameS2220-1014 Media Converter
Network Technology10/100/1000Base-T, 100Base-LX
Product SeriesS2220
Brand NameLantronix
Country of OriginTaiwan
Height1"
Width3.3"
Depth6.5"
Ethernet TechnologyGigabit Ethernet
USBYes
Number of Network (RJ-45) Ports1
Network (RJ-45)Yes
Number of SC Ports1
Fiber Mode SupportedSingle-mode
Total Number of Ports2
TAA CompliantYes
Fiber Optic Cable Wavelength1310 nm
