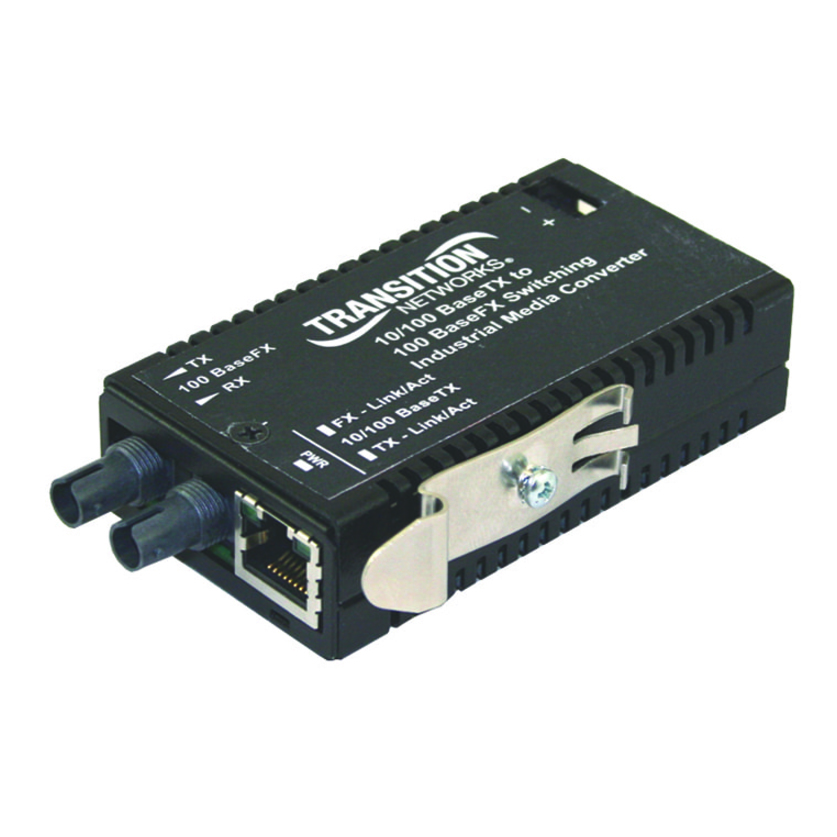

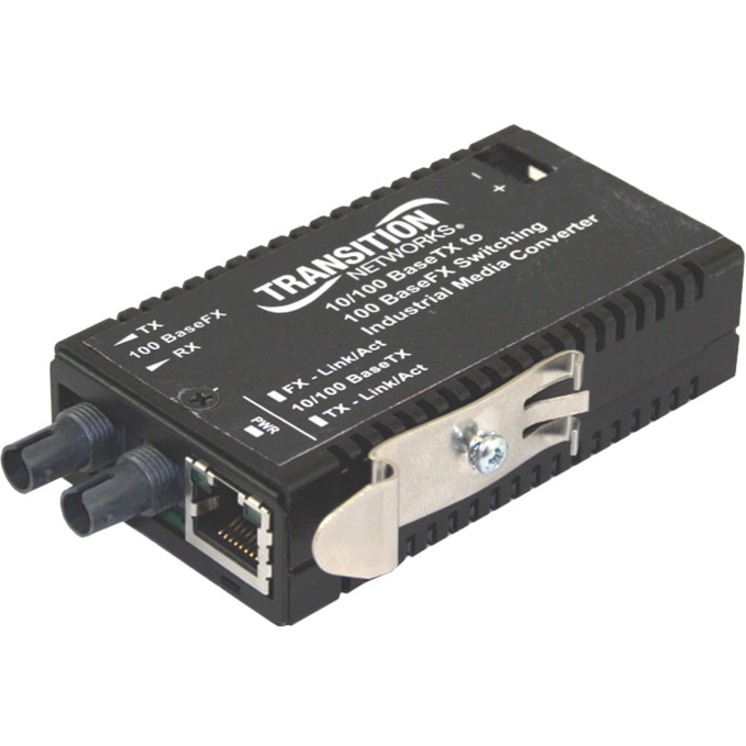

Transition Networks M/E-ISW Transceiver/Media Converter
Transition Networks

Transition Networks M/E-ISW Transceiver/Media Converter

1 x Network (RJ-45) - 1 x ST Ports - DuplexST Port - Multi-mode - 1300 nm Fiber - Fast Ethernet - 10/100Base-TX, 100Base-FX - 2 km - Power Supply - Rail-mountable, Wall Mountable

SKU
M/E-ISW-FX-02
Category
Transceivers/Media Converters

MSRP$230.00

$167.00

Save 27%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Transition Networks through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
M/E-ISW-FX-02
Category
Transceivers/Media Converters

Overview

The M/E-ISW Series is a hardened Fast Ethernet Mini media converter that provides a cost effective, plug-and-play media conversion between 10/100Base-TX ports and 100Base-FX ports for hardened or outdoor 10/100 environments. With its supported operating temperature range of -40°C to 75°C, the Mini offers a space saving alternative for converting copper to fiber in extreme environments.

Highlights

  • Unit and Port LEDs provide quick status
  • Auto-Negotiation
  • Fixed Full-Duplex on fiber
  • Auto-MDI/MDIX
  • Link Pass Through
  • Active Link Pass Through on SFP version
  • Automatic Link Restoration
  • Far-End-Fault (FEF)
  • DC and AC power inputs via terminal block
  • Includes barrel connector pig-tail cable

Specifications

Package Contents
  • M/E-ISW Transceiver/Media Converter
  • Barrel Connector Pig-tail Cable
  • DIN Rail Clip and Velcro
Product TypeTransceiver/Media Converter
Manufacturer Part NumberM/E-ISW-FX-02
Maximum Distance Supported2 km
Power SourcePower Supply
Limited WarrantyLifetime
Weight (Approximate)2 lb
Form FactorRail-mountable, Wall Mountable
ManufacturerLantronix, Inc
Product NameM/E-ISW Transceiver/Media Converter
Network Technology10/100Base-TX, 100Base-FX
Product SeriesM/E-ISW
Brand NameTransition Networks
Country of OriginTaiwan
Height0.9"
Width1.8"
Depth3.3"
Environmentally FriendlyYes
Ethernet TechnologyFast Ethernet
Number of Network (RJ-45) Ports1
Network (RJ-45)Yes
Number of ST Ports1
Media Type SupportedTwisted Pair, Optical Fiber
Fiber Mode SupportedMulti-mode
Total Number of Ports2
ST Port TypeDuplex
Environmental ComplianceRestriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
Fiber Optic Cable Wavelength1300 nm
