Transition Networks ION Gigabit Ethernet Media and Rate Converter Module
Transition Networks

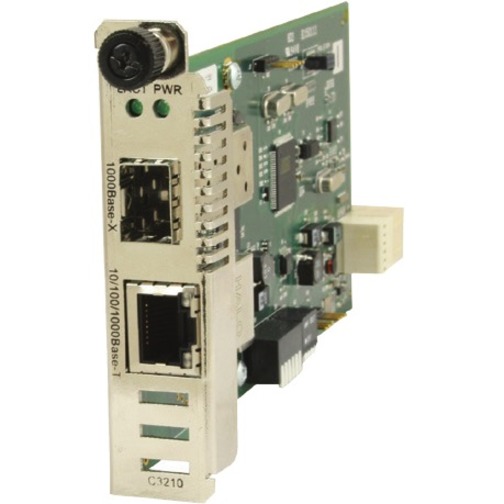

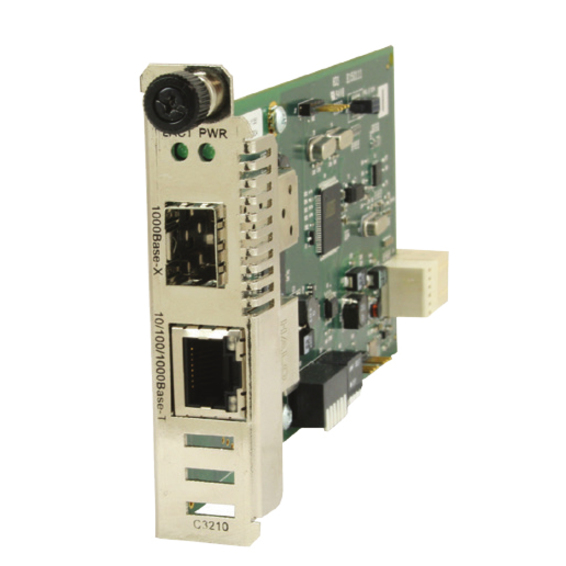

Transition Networks ION Gigabit Ethernet Media and Rate Converter Module

1 x Network (RJ-45) - Multi-mode - 850 nm Fiber - Gigabit Ethernet - 10/100/1000Base-T, 1000Base-SX - 0.55 km - 1 x Expansion Slots - SFP - 1 x SFP Slots - DC - Internal

SKU
C3210-1039
Category
Transceivers/Media Converters

MSRP$605.00

$439.04

Save 27%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Transition Networks through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
C3210-1039
Category
Transceivers/Media Converters

Overview

The ION C3210 device provides an interface between 10/100/1000Base-T ports and 1000Base-SX/LX ports allowing users to integrate fiber optic cabling into 10/100/1000Base-T copper environments.

Operating at Layer 2, this converter not only converts copper to fiber, it also does Rate conversion, converting 10/100/1000Base-T copper to 1000Base fiber.

Applications include: integrate fiber into copper based networking environments and bridging legacy 10/100 devices into a Gigabit Backbone.

Highlights

  • Copper and Fiber Auto-Negotiation
  • Switch Selectable Speeds
  • Auto-MDI/MDIX
  • Link Pass Through
  • Remote Fault Detect
  • Pause
  • Automatic Link Restoration
  • IEEE 802.1P QoS, IPv4 TOS/DiffServ, IPv6 traffic class
  • IEEE 802.1q Port VLAN, tagging and doubling tagging (Q in Q)
  • Field Upgradeable Firmware

Specifications

Product TypeTransceiver/Media Converter
Manufacturer Part NumberC3210-1039
Maximum Distance Supported0.55 km
Power SourceDC
Limited WarrantyLifetime
Weight (Approximate)1 lb
Form FactorInternal
ManufacturerLantronix, Inc
Product ModelC3210-1039
Product NameION Gigabit Ethernet Media and Rate Converter Module
Network Technology10/100/1000Base-T, 1000Base-SX
Product SeriesC3210
Brand NameTransition Networks
Expansion Slot TypeSFP
Country of OriginUnited States
Height3.4"
Width0.9"
Depth6.5"
Environmentally FriendlyYes
Ethernet TechnologyGigabit Ethernet
Number of Network (RJ-45) Ports1
Network (RJ-45)Yes
Number of SFP Slots1
Media Type SupportedTwisted Pair, Optical Fiber
Fiber Mode SupportedMulti-mode
Total Number of Ports1
Total Number of Expansion Slots1
Environmental ComplianceWaste Electrical and Electronic Equipment Directive (WEEE), Restriction of Hazardous Substances (RoHS)
Fiber Optic Cable Core/Cladding Specification62.5/125 µm, 50/125 µm
Fiber Optic Cable Wavelength850 nm
