Taoglas Spartan MA650.ST 2in1 Permanent Mount GPS/GLONASS/GALILEO & 3G/2G, SMA(M)
Taoglas

Taoglas Spartan MA650.ST 2in1 Permanent Mount GPS/GLONASS/GALILEO & 3G/2G, SMA(M)

Range - UHF - 824 MHz to 960 MHz, 1710 MHz to 2170 MHz, 1575.42 MHz, 1602 MHz - 4.5 dBi - Vehicle, Outdoor, GPS, GLONASS, Cellular Network - Black - Direct Mount - Omni-directional - SMA Connector

SKU
MA650.ST.AB.003.DZ
Category
Antennas

MSRP$148.61

$139.84

Save 6%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Taoglas through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
MA650.ST.AB.003.DZ
Category
Antennas

Overview

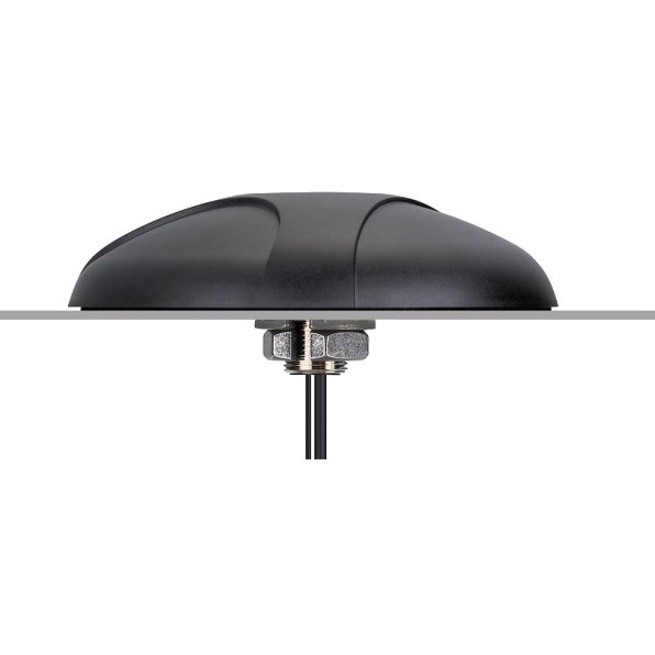

The Spartan MA650.ST antenna is an omnidirectional, heavy-duty, fully IP69K and IP67 waterproof external M2M antenna for use in telematics, transportation, and remote monitoring applications.

This unique antenna delivers powerful 3G/2G antenna technology and GPS/GLONASS/GALILEO for next generation high bandwidth telematics navigation systems.

We have packed 2 high efficiency and gain antennas in an extremely robust IP69K direct mount antenna package. The antenna has its own ground-plane and can radiate on any mounting environment like metal or plastic without affecting performance. The cables are low loss allowing for lengths of up to 5 meters (16 ' and 4.85 "), critical for buses, trains and other commercial transport applications.

For industries such as commercial vehicle telematics, remote monitoring, smart meter systems, construction equipment, at only 40mm high, the Spartan provides an unobtrusive, robust, rugged antenna that is durable even in extreme environments.

Customized cable length and connector versions are available upon request.

Highlights

  • 1 x 3G/2G Antenna (824~960MHz, 1710~2170MHz)
  • 0.3m NFC200 Coaxial Cable with SMA(M) Connector
  • 1 x GPS/GLONASS/GALILEO 1575.42/1602MHz Antenna
  • 0.3m RG174 Coaxial Cable with SMA(M) Connector
  • IP69K and IP67 Waterproof
  • High Efficiency / Peak Gain Outdoor Antenna
  • Advanced RF Design and Materials
  • Heavy Duty - Integrated Metal Base/ Ground-plane
  • Dims: 147.5mm: Height 35.6mm
  • Custom cables and connectors available

Specifications

Application/UsageVehicle, Outdoor, GPS, GLONASS, Cellular Network
Product TypeAntenna
Manufacturer Part NumberMA650.ST.AB.003.DZ
Packaged Quantity100
Weight (Approximate)1.26 lb
Connector TypeSMA
Form FactorDirect Mount
ManufacturerTaoglas
Product NameSpartan MA650.ST 2in1 Permanent Mount GPS/GLONASS/GALILEO & 3G/2G, SMA(M)
Product LineSpartan
Brand NameTaoglas
Diameter5.83"
Country of OriginTaiwan
Height1.42"
Environmentally FriendlyYes
DirectivityOmni-directional
Frequency Band TypeUHF
Product ColorBlack
Operating Frequency Range824 MHz to 960 MHz, 1710 MHz to 2170 MHz, 1575.42 MHz, 1602 MHz
Antenna Gain (Isotropic)4.5 dBi
