Taoglas Spartan MA650.ST 2in1 Permanent Mount GPS/GLONASS/GALILEO & 3G/2G, Fakra C & D
Taoglas

Taoglas Spartan MA650.ST 2in1 Permanent Mount GPS/GLONASS/GALILEO & 3G/2G, Fakra C & D

824 MHz to 960 MHz, 880 MHz to 960 MHz, 1710 MHz to 1880 MHz, 1850 MHz to 1990 MHz, 1920 MHz to 2170 MHz, 1575.42 MHz, 1602 MHz - Vehicle, Outdoor, GPS, GLONASS, Cellular Network - Black - Screw Mount - Omni-directional - FAKRA Connector

SKU
MA650.ST.AB.002.DZ
Category
Antennas

MSRP$148.61

$139.84

Save 6%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Taoglas through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
MA650.ST.AB.002.DZ
Category
Antennas

Overview

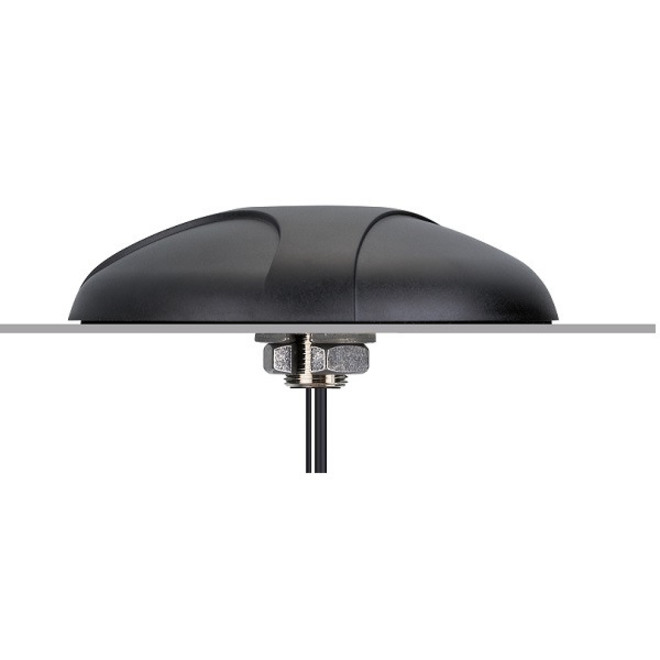

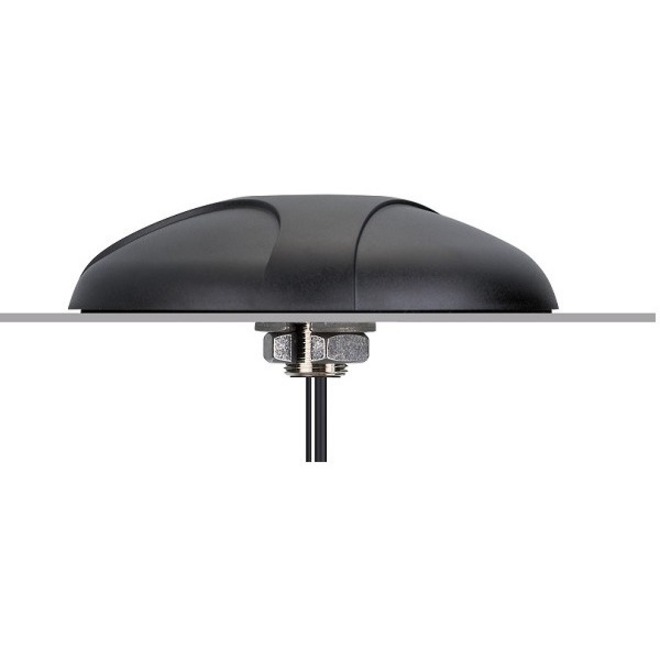

The Spartan MA650.ST antenna is an omnidirectional, heavy-duty, fully IP69K and IP67 waterproof external M2M antenna for use in telematics, transportation, and remote monitoring applications.

This unique antenna delivers powerful 3G/2G antenna technology and GPS/GLONASS/GALILEO for next generation high bandwidth telematics navigation systems.

We have packed 2 high efficiency and gain antennas in an extremely robust IP69K direct mount antenna package. The antenna has its own ground-plane and can radiate on any mounting environment like metal or plastic without affecting performance. The cables are low loss allowing for lengths of up to 5 meters (16 ' and 4.85 "), critical for buses, trains and other commercial transport applications.

For industries such as commercial vehicle telematics, remote monitoring, smart meter systems, construction equipment, at only 40mm high, the Spartan provides an unobtrusive, robust, rugged antenna that is durable even in extreme environments. This model is specific designed for automotive market with Fakra Jack generation II connectors which provide high connector reliability in vibrant usage application.

Customized cable length and connector versions are available upon request.

Highlights

  • 1 x 3G/1G Antenna (824~960MHz,
  • 1710~2170MHz)
  • 0.3m NFC200 Coaxial Cable
  • Fakra Jack Connector Code D Violet
  • 1 x GPS/GLONASS/GALILEO 1575.42/1602MHz Antenna
  • 0.3m RG174 Coaxial Cable
  • Fakra Jack Connector Code C Blue
  • IP69K and IP67 Waterproof
  • High Efficiency / Peak Gain Outdoor Antenna
  • Advanced RF Design and Materials

Specifications

Application/UsageVehicle, Outdoor, GPS, GLONASS, Cellular Network
Product TypeAntenna
Manufacturer Part NumberMA650.ST.AB.002.DZ
Weight (Approximate)1.26 lb
Connector TypeFAKRA
Form FactorScrew Mount
ManufacturerTaoglas
Product ModelMA650.ST
Product NameSpartan MA650.ST 2in1 Permanent Mount GPS/GLONASS/GALILEO & 3G/2G, Fakra C & D
Product LineSpartan
Brand NameTaoglas
Diameter5.83"
Country of OriginTaiwan
Height1.42"
Environmentally FriendlyYes
DirectivityOmni-directional
Product ColorBlack
Operating Frequency Range824 MHz to 960 MHz, 880 MHz to 960 MHz, 1710 MHz to 1880 MHz, 1850 MHz to 1990 MHz, 1920 MHz to 2170 MHz, 1575.42 MHz, 1602 MHz
