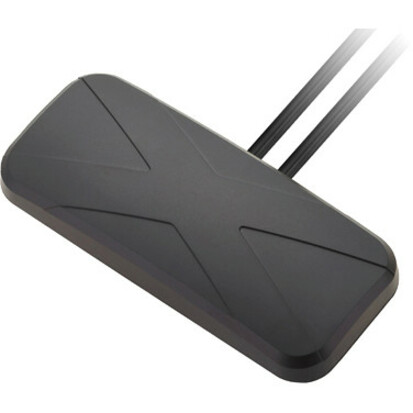

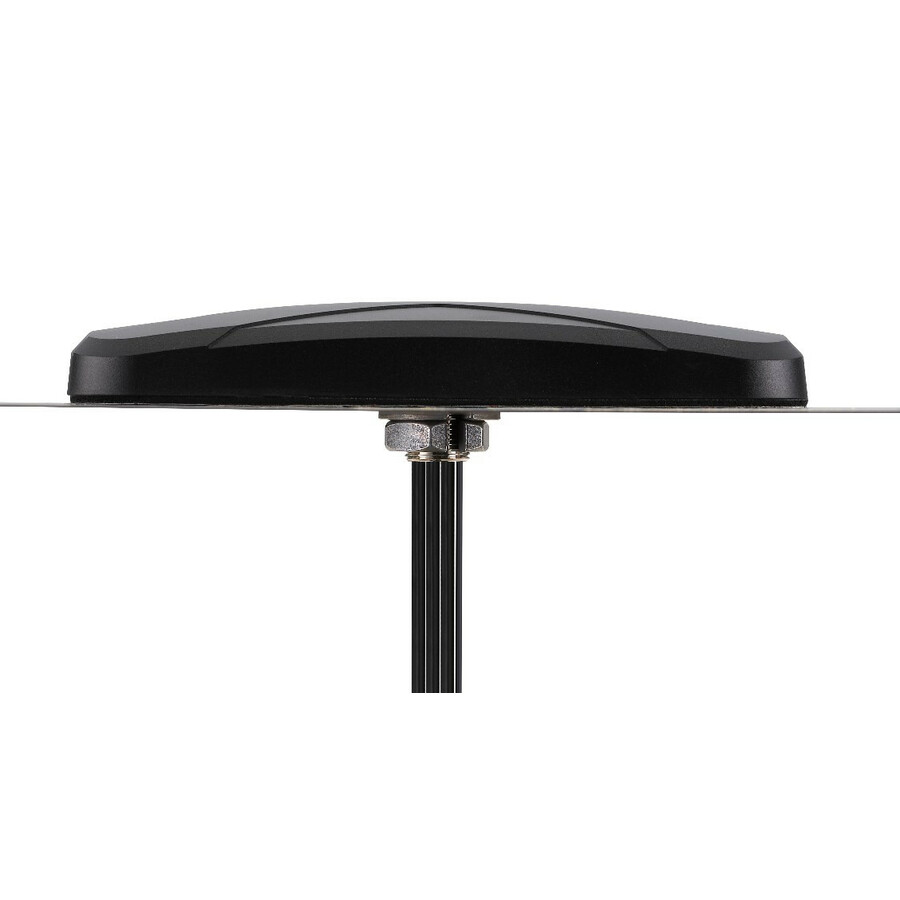

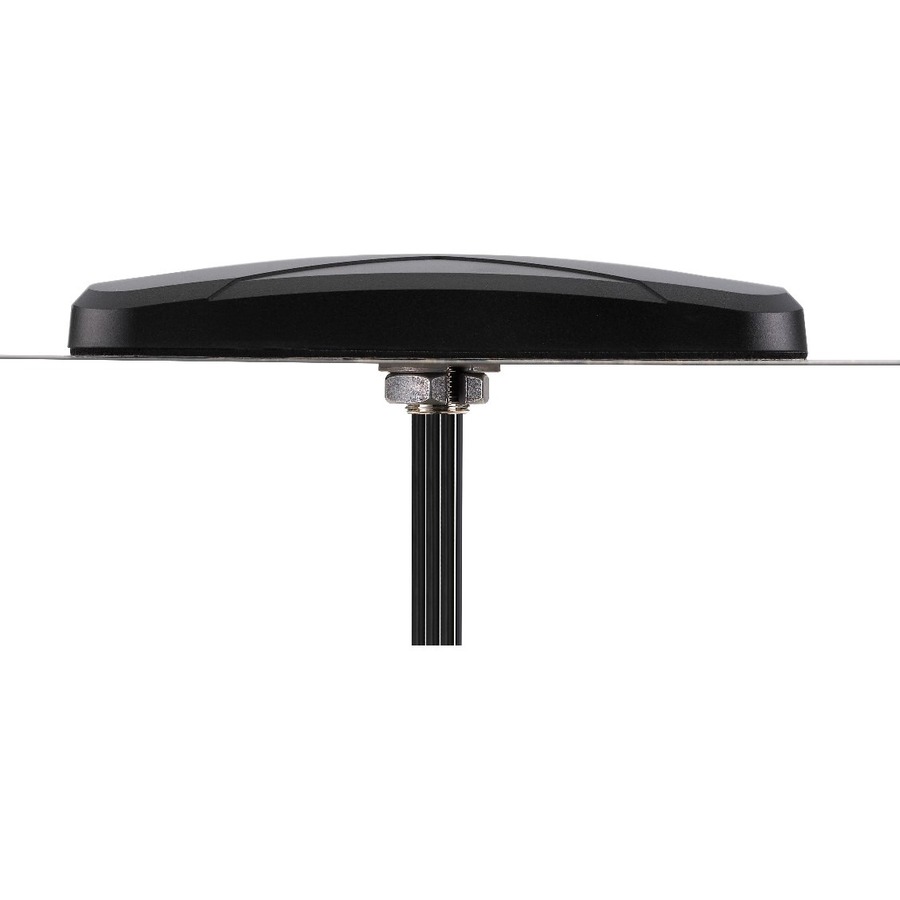

Taoglas Storm MA411 3in1 Permanent Mount GNSS & 4G/3G/2G 2*MIMO Antenna
698 MHz to 803 MHz, 824 MHz to 894 MHz, 880 MHz to 960 MHz, 1710 MHz to 1880 MHz, 1850 MHz to 1990 MHz, 1920 MHz to 2170 MHz, 2490 MHz to 2690 MHz, 3300 MHz to 3600 MHz, 1575.42 MHz, 1602 MHz, 1561.098 MHz - GPS, GLONASS, Cellular Network - Black - Screw Mount - FAKRA Connector
- SKU
- MA411.A.LBI.001
- Category
- Antennas
MSRP$144.47
$106.80
Save 26%Back ordered — ships when restocked.
Genuine Taoglas through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- MA411.A.LBI.001
- Category
- Antennas
Overview
The Storm MA411 antenna is a low profile, heavy-duty, fully IP67 waterproof external M2M antenna for use in worldwide telematics applications which require best in class LTE and GNSS performance. You will never be out of touch with this extremely robust antenna.
At only 31mm high, the Storm is the world's lowest profile global telematics antenna solution. It delivers powerful worldwide 4G LTE MIMO antenna technology while also covering the 3G and 2G bands, plus GPS-GLONASS-GALILEO-BeiDou for next generation location accuracy.
Typical applications
- Automotive and Heavy Equipment Vehicle Tracking and Telematics
- Remote Asset and Pipeline Monitoring
- HD Video over LTE
- First Responder and Emergency Services
LTE 4G applications demand high speed data uplink and downlink. High efficiency and high gain MIMO antennas are necessary to achieve the required signal to noise ratio and throughput required to solve these challenges. Taoglas also takes care to have high isolation between the two MIMO antennas to prevent self-interference. Low loss cables are used to keep efficiency high over long cable lengths. The MA411 does not require a ground plane. In contrast, smaller MIMO antennas with poorer quality thinner cables will have much reduced efficiency and isolation, which would lead to a large drop in system throughput or drops, and may indeed not make a system connection at all.
The GPS-GLONASS-GALILEO-BeiDou active antenna has been carefully designed to work well on GPS, GLONASS, GALILEO and BeiDou bands, leading to higher location accuracy and stability of tracking in urban environments.
Cable length and connector types are customizable. Contact your regional Taoglas sales office for support. Conformity is declared under the following standard:
Conformity is declared under the following standard: EN55022 Class B
This is to declare that the product listed above conform to the EMC directive 2014/30/EU.
Highlights
- 2* LTE MIMO Antennas
- 698~960MHz/1710~2170MHz/
- 2490~2690MHz/3300~3600MHz
- Worldwide 4G Bands including 3G and 2G
- 1* GPS-GLONASS-GALILEO-BeiDou Antenna
- Screw-Mount [Permanent Mount]
- Aerodynamic, Super Low-profile Vandal Resistant Housing
- IP67 Enclosure
- Dims: 216.24*93.25*30.95mm

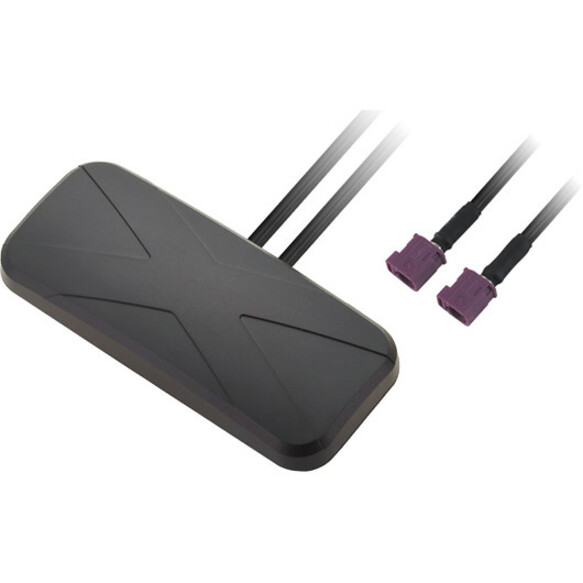

- 0.3M low loss cable with Fakra connectors as standard
Specifications
| Application/Usage | GPS, GLONASS, Cellular Network |
|---|---|
| Product Type | Antenna |
| Manufacturer Part Number | MA411.A.LBI.001 |
| Packaged Quantity | 100 |
| Weight (Approximate) | 14.64 oz |
| Connector Type | FAKRA |
| Form Factor | Screw Mount |
| Manufacturer | Taoglas |
| Product Model | MA411 |
| Product Name | Storm MA411 3in1 Permanent Mount GNSS & 4G/3G/2G 2*MIMO Antenna |
| Product Line | Storm |
| Brand Name | Taoglas |
| Country of Origin | Taiwan |
| Height | 1.22" |
| Width | 3.67" |
| Depth | 8.51" |
| Environmentally Friendly | Yes |
| Product Color | Black |
| Operating Frequency Range | 698 MHz to 803 MHz, 824 MHz to 894 MHz, 880 MHz to 960 MHz, 1710 MHz to 1880 MHz, 1850 MHz to 1990 MHz, 1920 MHz to 2170 MHz, 2490 MHz to 2690 MHz, 3300 MHz to 3600 MHz, 1575.42 MHz, 1602 MHz, 1561.098 MHz |
