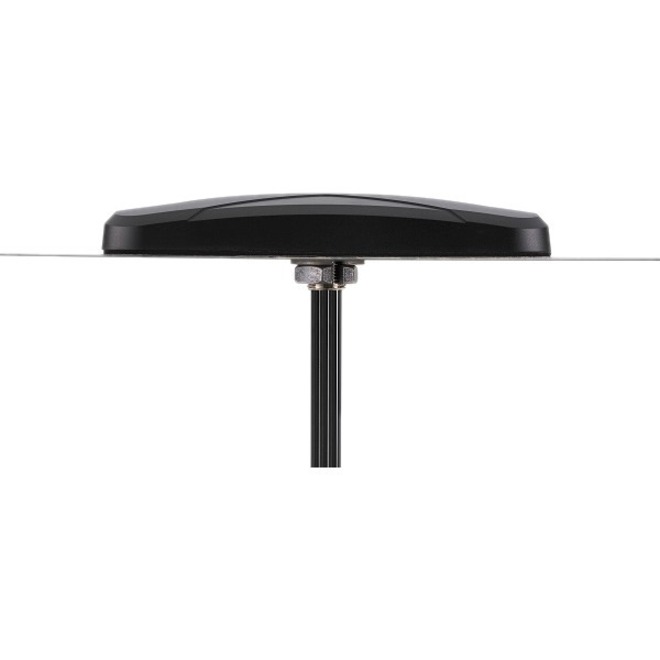

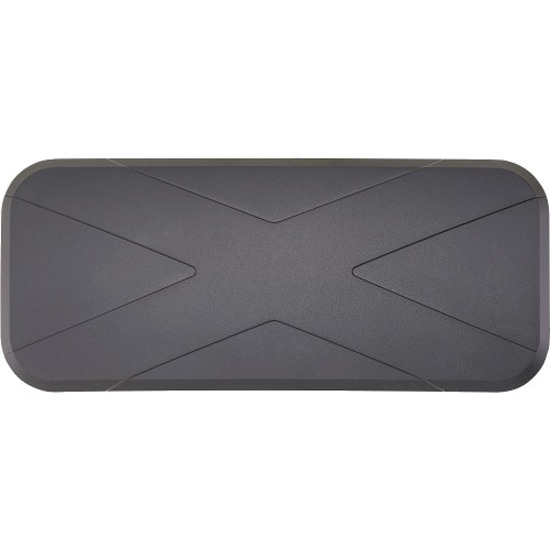

Taoglas Storm MA410 4in1 Permanent Mount GNSS, 2 LTE MIMO & L Band 1621MHz Antenna

The Storm MA410 antenna is a low profile, heavy - duty, fully IP67 waterproof external M2M antenna for use in worldwide telematics applications which combine Global Cellular, Location a nd Satellite Communications. MA 410 delivers best in class LTE, GNSS and Iridium antenna performance. You will never be ou t of touch with this extremely robust antenna.

At only 31mm high, the Storm is the world's lowest profile global telematics antenna solution. It delivers powerful worldwide 4G LTE MIMO antenna technology while also covering the 3G and 2G bands, plus GPS - GLONASS - GALILEO - BeiDou for next generation location accuracy, and 1621MHz L- band antenna for global satellite communications.

Typical applications

- High speed data links with a need for satellite communication as fallback

- Automotive and Heavy Equipment Vehicle Tracking and Telematics

- Remote Asset and Pipeline Monitoring

- HD Video over LTE

- First Responder and Emergency Services

- Global data communications/IoT

LTE 4G applications demand high speed data uplink and downlink. High efficiency and h igh gain MIMO antennas are necessary to achieve the required signal to noise ratio and throughput required to solve these challenges. Taoglas also takes care to have high isolation between the two MIMO antennas to prevent self - interference. The MA410 do es not require a ground plane . Low loss cables are used to keep efficiency high over long cable lengths.

The GPS - GLONASS - GALILEO - BeiDou active antenna receives efficiently on all three bands, leading to higher location accuracy and stability of tracking in u rban environments. Finally, a low axial ratio Satellite L Band 1621MHz Antenna is also embedded, providing connectivity for Satellite L Band systems, enabling global coverage, and back - up in case of cellular network failure. Cable length and connector type s are customizable. Contact your regional Taoglas sales office for support.
