Taoglas Phoenix GSA.8827 LTE I-Bar Adhesive Antenna, SMA(M), 1M RG-174
Taoglas

Taoglas Phoenix GSA.8827 LTE I-Bar Adhesive Antenna, SMA(M), 1M RG-174

703 MHz to 803 MHz, 824 MHz to 894 MHz, 880 MHz to 960 kHz, 1710 MHz to 1880 MHz, 1575.42 MHz to 1575.45 MHz, 1850 MHz to 1990 MHz, 1710 MHz to 2170 MHz, 2490 MHz to 2690 MHz - Cellular Network, GPS, Wireless Data Network - Black - Adhesive Mount - Omni-directional - SMA Connector

SKU
GSA.8827.A.101111
Category
Antennas

$23.88

Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Taoglas through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
GSA.8827.A.101111
Category
Antennas

Overview

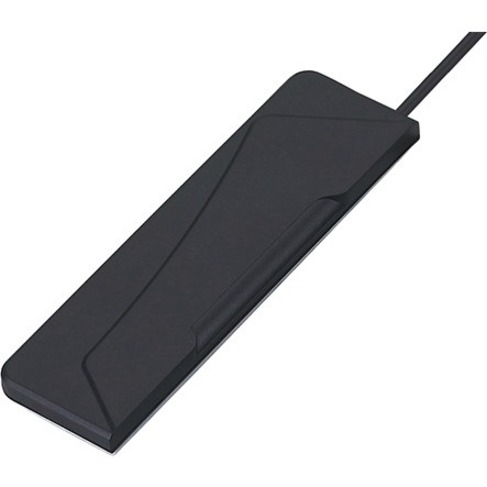

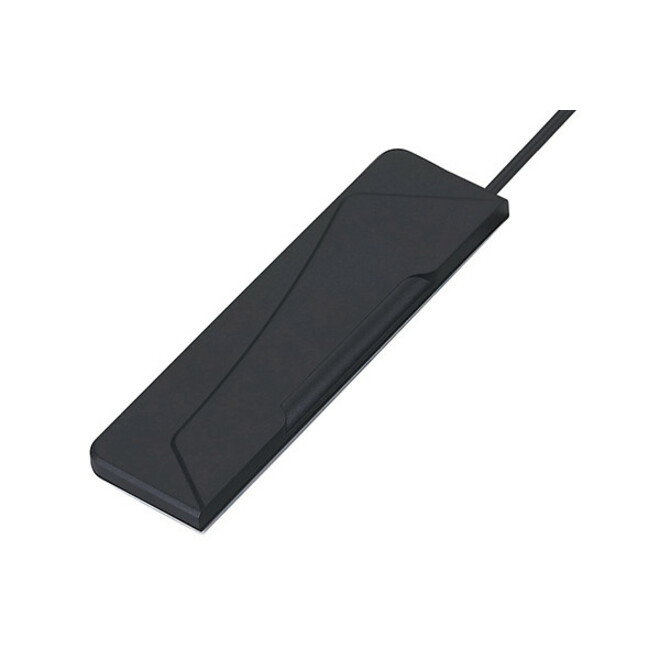

The GSA.8827 Phoenix Ultra-Wideband I-Bar antenna is a robust high efficiency cellular antenna for use with all 4G/3G/2G cellular modules worldwide.

Its slim-line design allows for covert and convenient installation in automotive vehicles, its omnidirectional gain across all bands ensures constant reception and transmission. GSA.8827 is manufactured and tested in a TS16949 first tier automotive approved facility, and it has gone through full PPAP design, reliability and quality audits.

The Phoenix finds its application particularly in first-tier automotive application, aftermarket and telematics.

With its unique ultra-wide band dipole design, the Phoenix has exceptional industry performance characteristics considering its very low profile at 7.7mm and has a compact size of only 105mm*30mm.

This antenna is designed to be mounted on glass or plastic (not on metal). It comes with strong 3M double-sided adhesive for a permanent and secure fix to your vehicle interior. The antenna is UV Resistant. Cable lengths and connectors are fully customizable.

Highlights

  • LTE / GSM / CDMA /DCS /PCS / WCDMA / UMTS /
  • HSDPA / GPRS / EDGE / GPS / Wi-Fi
  • 698MHz to 960MHz, 1575.42MHz,
  • 1710MHz to 2700Mhz
  • 1M RG-174 cable with SMA(M) connector
  • Ingress protection rating IP65
  • Low profile for easy installation
  • Fully customizable cable length and connector
  • 105mm*30*7.7mm
  • RoHS compliant

Specifications

Application/UsageCellular Network, GPS, Wireless Data Network
Product TypeAntenna
Manufacturer Part NumberGSA.8827.A.101111
Packaged Quantity1
Weight (Approximate)1.76 oz
Connector TypeSMA
Form FactorAdhesive Mount
ManufacturerTaoglas
Product NamePhoenix GSA.8827 LTE I-Bar Adhesive Antenna, SMA(M), 1M RG-174
Product LinePhoenix
Product SeriesGSA.8827
Brand NameTaoglas
Country of OriginTaiwan
Height4.13"
Width1.18"
Depth0.30"
Environmentally FriendlyYes
DirectivityOmni-directional
Product ColorBlack
Operating Frequency Range703 MHz to 803 MHz, 824 MHz to 894 MHz, 880 MHz to 960 kHz, 1710 MHz to 1880 MHz, 1575.42 MHz to 1575.45 MHz, 1850 MHz to 1990 MHz, 1710 MHz to 2170 MHz, 2490 MHz to 2690 MHz
