Taoglas Ulysses Ultra-Low Profile Miniature Magnet Mounted GPS-GLONASS-GALILEO Antenna
Taoglas

Taoglas Ulysses Ultra-Low Profile Miniature Magnet Mounted GPS-GLONASS-GALILEO Antenna

Range - UHF - 1575 MHz to 1610 MHz - 27 dBi - GLONASS, GPS, Outdoor - Black - Magnetic Mount - SMA Connector

SKU
AA.162.301111
Category
Antennas

MSRP$25.47

$22.72

Save 11%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Taoglas through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
AA.162.301111
Category
Antennas

Overview

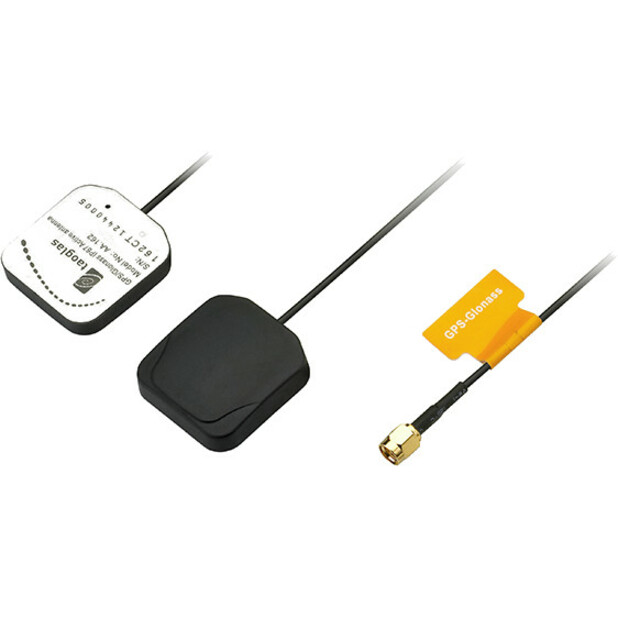

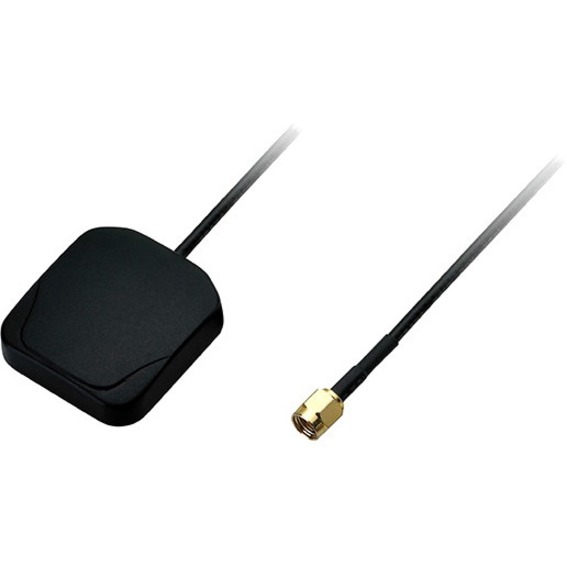

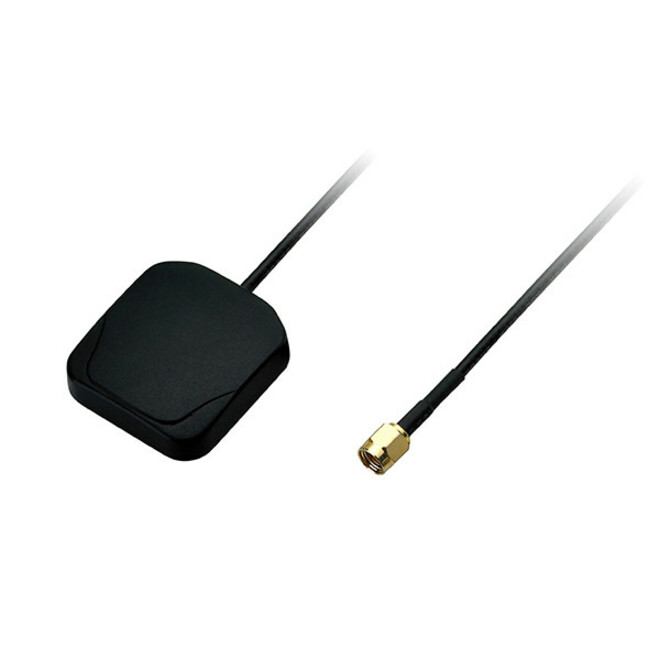

The Ulysses miniature super low profile (only 10mm in height) GNSS antenna is designed for applications which require high positioning accuracy by combining signals from GPS, GALILEO and GLONASS systems. A high gain wide-band patch antenna on an integral ground delivers reliable performance. Fully IP67 waterproof rating allows use in outdoors environments. Front end SAW filter configuration eliminates potential LNA burn-out from nearby out of band radiated power bursts from other antennas that may be co-located nearby.

The antenna is manufactured to strict first tier Automotive quality controlled manufacturing process in TS16949 approved facility.

Highlights

  • 1575MHz - 1610MHz
  • 1.8-5.5V
  • 3m RG174 SMA(M)
  • IP67 Rated
  • Dims: 40x38x10mm
  • Custom cables and connectors available
  • RoHS Compliant

Specifications

Application/UsageGLONASS, GPS, Outdoor
Product TypeAntenna
Manufacturer Part NumberAA.162.301111
Packaged Quantity1
Weight (Approximate)2.08 oz
Connector TypeSMA
Form FactorMagnetic Mount
ManufacturerTaoglas
Product NameUlysses Ultra-Low Profile Miniature Magnet Mounted GPS-GLONASS-GALILEO Antenna
Package TypeBulk
Product LineUlysses
Brand NameTaoglas
Country of OriginTaiwan
Height0.39"
Width1.49"
Environmentally FriendlyYes
Frequency Band TypeUHF
Product ColorBlack
Operating Frequency Range1575 MHz to 1610 MHz
Antenna Gain (Isotropic)27 dBi
