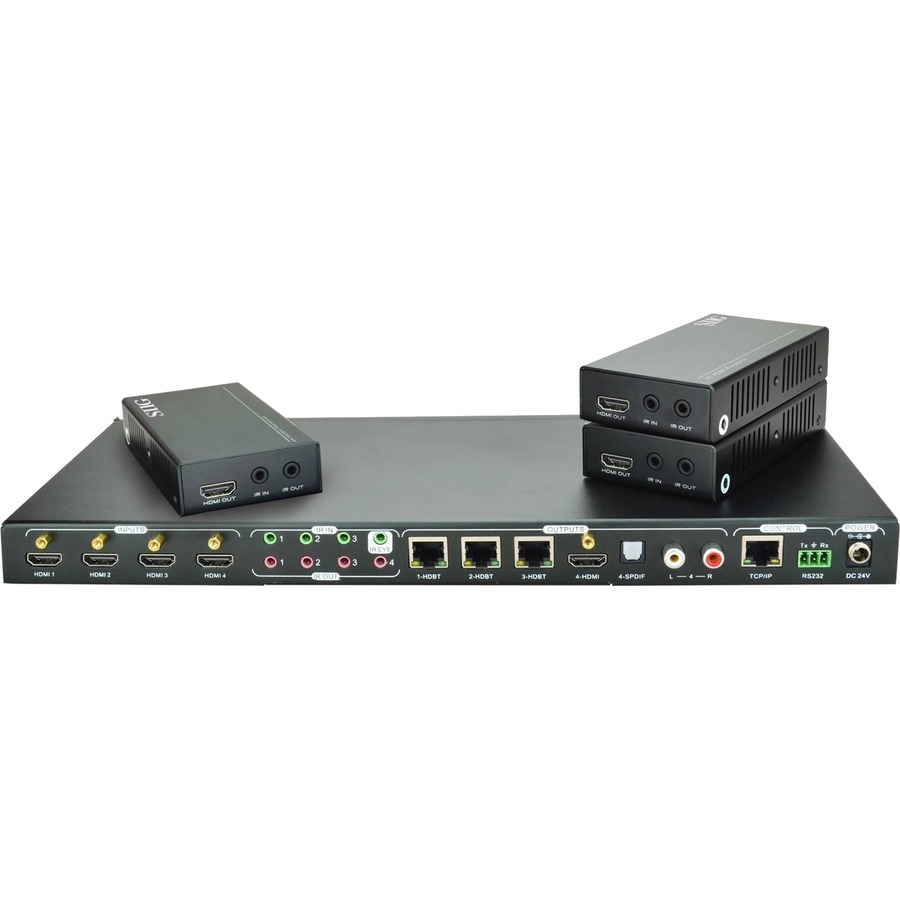

SIIG HDMI HDBaseT 4x4 4K Matrix Kit
SIIG

SIIG HDMI HDBaseT 4x4 4K Matrix Kit

230ft (70m) @1080p & 131ft (40m) @4K Resolution

SKU
CE-H23W11-S1
Category
Video Switchboxes

MSRP$1,699.00

$947.39

Save 44%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine SIIG through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
CE-H23W11-S1
Category
Video Switchboxes

Overview

Allows you to select and switch between any of the 4 HDMI source devices to display on any of the 4 HDMI displays simultaneously

• Select and switch between any of the 4 HDMI source devices to any of the 4 HDMI displays simultaneously

• HDBaseT outputs supports transmission distances up to 230ft (70m) @1080p and 131ft (40m) @4K resolution

• Compliant with HDMI 1.4 and HDCP 2.2

• Supports up to 4K @30Hz YUV 4:2:0 and 1080p 3D resolution

• 3 HDBaseT outputs over CAT cables with 3 included Receivers and 1 HDMI output

• Supports Bi-directional IR control, PoC, powerful EDID management, and manual and auto-detect HDCP management

• Rack-mountable metal housing

• Firmware upgradable through the Micro USB port

Highlights

  • Quickly and easily connect with the display
  • 4096 x 2160 resolution for high-quality video delivery

Specifications

Package Contents
  • HDMI HDBaseT 4x4 4K Matrix Kit
  • 3 x HDBaseT Receiver
  • Power Adapter
  • IR Emitter Cable
  • IR Receiver Cable
  • IR Remote Control (without battery)
  • RS-232 Cable (Phoenix to 9-pin D-Sub)
  • 2 x Transmitter Mounting Ears
  • 6 x Screw
  • 4 x Transmitter Trapezoidal Plastic Pads
  • 6 x Receiver Mounting Ears
  • 6 x Screw
  • 12 x Receiver Round Plastic Pads
  • User Manual
Product TypeAudio/Video Switchbox
Device SupportedDisplay, Computer, Gaming Console, Blu-ray Disc Player, DVD Player
Manufacturer Part NumberCE-H23W11-S1
Limited Warranty3 Year
Weight (Approximate)4.41 lb
Connectivity TechnologyCable
Form FactorRack-mountable
ManufacturerSIIG, Inc
Product NameHDMI HDBaseT 4x4 4K Matrix Kit
Brand NameSIIG
Country of OriginChina
Height1.1"
Width14.2"
Depth5.9"
Graphics Modes4K
Environmentally FriendlyYes
Maximum Video Resolution4096 x 2160
Maximum Operating Distance229.66 ft
Number of USB Ports1
Number of HDMI Inputs4
Number of HDMI Outputs1
HDMI InYes
HDMI OutYes
Media Type SupportedTwisted Pair
Number of Displays Supported4
Number of Input Devices Supported4
Connectivity (RJ-45)Yes
Number of Connectivity (RJ-45) Ports4
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
