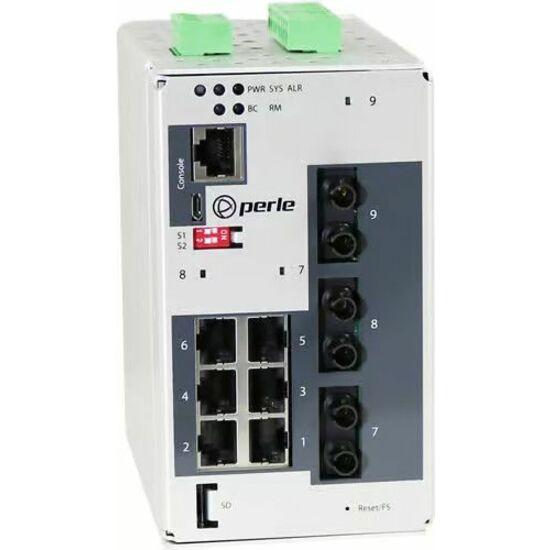

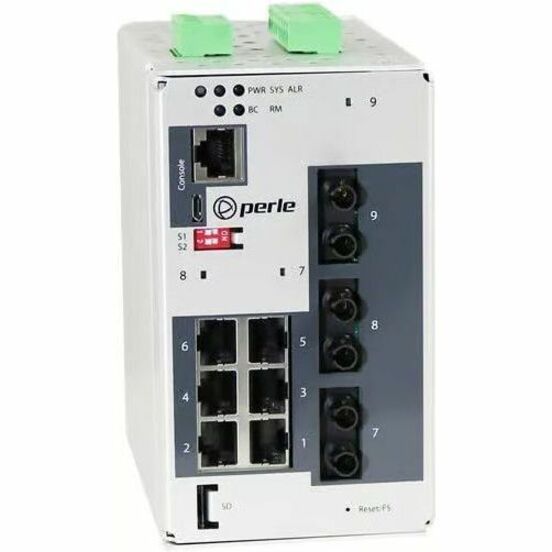

Perle IDS-509F3-T2SD20-SD40 - Industrial Managed Ethernet Switch
9 Ports - Manageable - Gigabit Ethernet, Fast Ethernet - 10/100/1000Base-T, 100Base-LX - 3 Layer Supported - Single-mode - Twisted Pair, Optical Fiber - Rail-mountable, Panel-mountable, Wall Mountable, Compact
- SKU
- 07014020
- Category
- Switches & Bridges
MSRP$2,328.00
$1,798.18
Save 23%Back ordered — ships when restocked.
Genuine Perle Systems through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- 07014020
- Category
- Switches & Bridges
Overview
The IDS-509F is a 9 port Managed Ethernet Switch that can operate in industrial environments providing advanced performance and enabling real-time deterministic network operation. Choose any combination of 10/100/1000-Base-T Ethernet copper ports and 100Base-X fiber ports to meet the needs of your environment.
In addition to extending links over greater distances, utilizing fiber is critical in industrial plants where high levels of electromagnetic interference or EMI is a common phenomenon. This interference can cause corruption of data over copper-based Ethernet links. Data transmitted over fiber optic cable however is completely immune to this type of noise ensuring optimal data transmission across the plant floor.
Perle Industrial-grade Ethernet Switches are designed to stand up to extreme temperatures, surges, vibrations, and shocks found in industrial automation, government, military, oil and gas, mining and outdoor applications.
With over 78 models, the Perle IDS-509F offers a choice of connectors, fiber types, temperature support and operating distances.
Perle's Fast Setup feature provides simple Plug and Play installation to get your Ethernet devices networked immediately. The familiar Command Line Interface (CLI),via in-band Telnet or the out-band serial console port,will be appreciated by CCNA(Cisco Certified Network Associate) and CCNP(Cisco Certified Network Professional) trained engineers.
The PRO feature set in the IDS-509F is ideal for sophisticated environments where additional extensive security and network integration functionality is required.
• TACACS+ and RADIUS authentication, authorization and accounting (AAA) security services
• SSH, SNMPv3, Telnet and HTTPS secure management sessions
• IP address and IP Port number Management Access Lists(ACL)
• Password Strength Checking
• Protection of User Access Ports through IEEE 802.1x Authentication and Port Security
• Advanced protocols to optimize the performance and intelligence of the network: LLDP, GVRP, Voice VLANs, MSTP, GMRP, IPv4 IGMP Snooping and IPv6 MLD Snooping
Highlights
- Effectively increases available bandwidth on your network
- Terminal Block plug/connector type for convenient Ethernet Switch usage with added power supply dependability
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 9 ports
- Can work as layer 3 routing for scalable network design
- Rail-mountable form factor allows hassle-free and easy usage with increased efficiency
- Management capability provides control over setup and configuration of your network
- Gigabit Ethernet port for ultra-fast network speeds
- Supports optical fiber cable to span longer distances and provided high data transmission rates between servers and network components
Specifications
| Product Type | Ethernet Switch |
|---|---|
| Input Voltage | 12 V DC, 24 V DC, 48 V DC, 9.6 V DC, 6 V DC, 24 V AC |
| Manufacturer Part Number | 07014020 |
| Power Source | AC/DC, Power Supply |
| Layer Supported | 3 |
| Weight (Approximate) | 1.41 lb |
| Features | Plug and Play, Fanless, IP20 |
| Form Factor | Rail-mountable, Panel-mountable, Wall Mountable, Compact |
| Manufacturer | Perle Systems, Inc |
| Product Model | IDS-509F3-T2SD20-SD40 |
| Product Name | IDS-509F3-T2SD20-SD40 - Industrial Managed Ethernet Switch |
| Network Technology | 10/100/1000Base-T, 100Base-LX |
| Product Series | IDS-509F |
| Brand Name | Perle |
| Plug/Connector Type | Terminal Block |
| Country of Origin | Canada |
| Height | 4.8" |
| Width | 5.1" |
| Depth | 3" |
| Manageable | Yes |
| Maximum Data Transfer Rate | 128 MB/s |
| Ethernet Technology | Gigabit Ethernet, Fast Ethernet |
| Network (RJ-45) | Yes |
| Media Type Supported | Twisted Pair, Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Total Number of Network Ports | 9 |
| Port/Expansion Slot Details | 6 x 10/100/1000Base-T Gigabit Ethernet RJ-45 Network Port, 2 x 100Base-LX Duplex ST Connector, 1 x 100Base-LX Duplex SC Connector |
| Redundant Power Supply Supported | Yes |
| Networking Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ad, IEEE 802.1ab |
| Product Material | Metal |
| Fiber Optic Cable Wavelength | 1310 nm |
