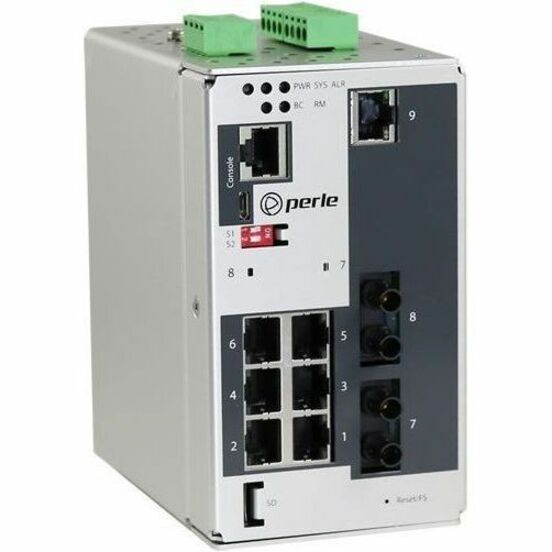

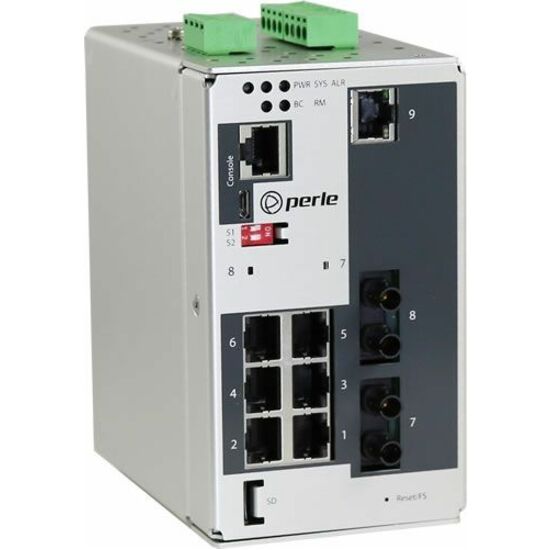

Perle IDS-509F3-T2MD2-SD40 - Industrial Managed Ethernet Switch

The IDS-509F is a 9 port Managed Ethernet Switch that can operate in industrial environments providing advanced performance and enabling real-time deterministic network operation. Choose any combination of 10/100/1000-Base-T Ethernet copper ports and 100Base-X fiber ports to meet the needs of your environment. In addition to extending links over greater distances, utilizing fiber is critical in industrial plants where high levels of electromagnetic interference or EMI is a common phenomenon. This interference can cause corruption of data over copper-based Ethernet links. Data transmitted over fiber optic cable however is completely immune to this type of noise ensuring optimal data transmission across the plant floor.

Perle Industrial-grade Ethernet Switches are designed to stand up to extreme temperatures, surges, vibrations, and shocks found in industrial automation, government, military, oil and gas, mining and outdoor applications.

With over 78 models, the Perle IDS-509F offers a choice of connectors, fiber types, temperature support and operating distances.

Perle's Fast Setup feature provides simple Plug and Play installation to get your Ethernet devices networked immediately. The familiar Command Line Interface (CLI), via in-band Telnet or the out-band serial console port, will be appreciated by CCNA (Cisco Certified Network Associate) and CCNP (Cisco Certified Network Professional) trained engineers.

The PRO feature set in the IDS-509F is ideal for sophisticated environments where additional extensive security and network integration functionality is required

• TACACS+ and RADIUS authentication, authorization and accounting (AAA) security services

• SSH, SNMPv3, Telnet and HTTPS secure management session

• IP address and IP Port number Management Access List (ACL)

• Password Strength Checking

• Protection of User Access Ports through IEEE 802.1X Authentication and Port Security

• Advanced Protocol to optimize the performance and intelligence of the network: LLDP, GVRP, Voice VLANs, MSTP, GMRP, IPv4 IGMP Snooping and IPv6 MLD Snooping

MRP (IEC62439-2), PROFINET, Modbus TCP, management VLAN, QoS, RMON, N:1 port mirroring and local alert log, are only a few of the comprehensive management functions supported in the IDS-509. In addition, the switch can be managed with an IPv6 address.

The IDS-509F, which comes in a variety of models, are rugged fan-less switches that are hardened to provide superior reliability in -10 to 60°C, or harsh extended operating temperatures from -40 to 75°C. Every component on every industrial (XT) model has been designed and tested to handle operating temperatures between -40 and 75C.

All Perle Industrial Ethernet Switches only use high-end components from the leading chip manufacturers to ensure the highest level of durability and reliability. In addition, all units have a corrosion resistance aluminum case and dual redundant power input with reverse polarity and overload protection.

Perle has been designing industrial hardware for over 35 years and have used this expertise to design the toughest Ethernet switches on the market.

IDS-509F Industrial Managed DIN Rail Switch Features | Simple deployment
