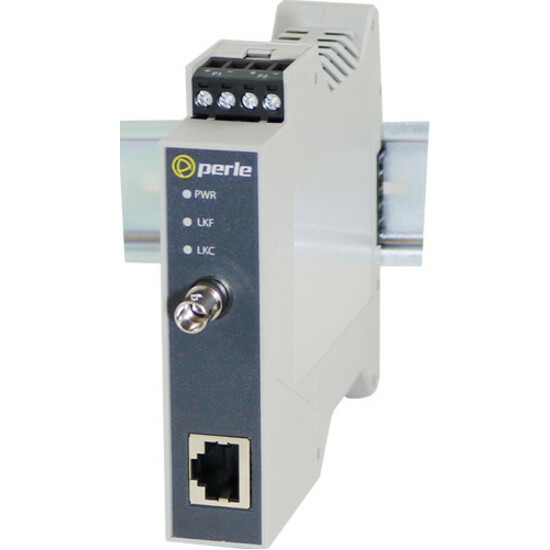

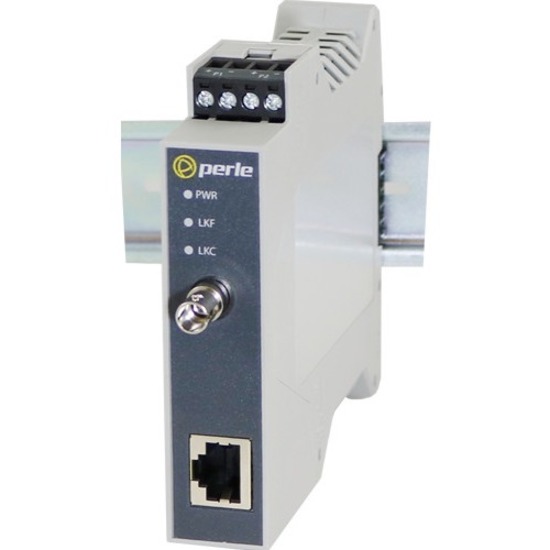

Perle SR-100-ST20D Transceiver/Media Converter
Perle Systems

Perle SR-100-ST20D Transceiver/Media Converter

1 x Network (RJ-45) - 1 x ST Ports - SimplexST Port - Single-mode - 1310 nm, 1550 nm Fiber - Fast Ethernet - 100Base-TX, 100Base-BX, 100Base-BX-D - 20 km - AC Adapter - Rail-mountable

SKU
05091170
Category
Transceivers/Media Converters

MSRP$433.00

$334.45

Save 23%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Perle Systems through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
05091170
Category
Transceivers/Media Converters

Overview

Perle SR-100 DIN Rail Media Converters transparently connect UTP copper to fiber. These Fast Ethernet Media Converters provide an economical path to:

• extend the distance of an existing network by linking CAT5/6/7 cabling to multimode or single mode fiber

• extend the life of non-fiber based equipment by enabling data transmission from 100Base-TX devices over fiber

• extend the distance between two copper-based devices or networks

• protect Ethernet data from EMI noise and interference by inter-connecting your copper-Ethernet devices over fiber in industrial plants.

Some SR-100 Media Converters are also available with an SFP slot or support for -40C to +75C (-40F to +167F) extended operating temperatures.

Network Administrators can rest assured with Perle's advanced features such as Auto-Negotiation, Auto-MDIX, Link Pass-Through, Far End Fault, and Pause which make the end to end link completely transparent. This allows for more efficient troubleshooting and less on-site maintenance. These cost and time saving features, along with a lifetime warranty and free worldwide technical support, make SR-100 Fast Ethernet Media Converters the smart choice for IT professionals.

Highlights

  • 100Base-TX to 100Base-X Fiber Media Converters
  • Link copper to multimode or single mode fiber
  • Dual or Single fiber ST/SC connectors
  • Extend network distances up to 120km
  • Advanced Features: Link Pass-Through, Far-End Fault, Auto-MDIX
  • Triple Power Input: Dual Terminal block power connector & T-Bus

Specifications

Product TypeTransceiver/Media Converter
Manufacturer Part Number05091170
Maximum Distance Supported20 km
Power SourceAC Adapter
Limited WarrantyLifetime
Weight (Approximate)4.23 oz
Form FactorRail-mountable
ManufacturerPerle Systems, Inc
Product ModelSR-100-ST20D
Product NameSR-100-ST20D Transceiver/Media Converter
Network Technology100Base-TX, 100Base-BX, 100Base-BX-D
Product SeriesSR-100
Brand NamePerle
Country of OriginTaiwan
Height0.9"
Width4.5"
Depth3.9"
Environmentally FriendlyYes
Ethernet TechnologyFast Ethernet
Number of Network (RJ-45) Ports1
Network (RJ-45)Yes
Number of ST Ports1
Media Type SupportedTwisted Pair, Optical Fiber
Fiber Mode SupportedSingle-mode
Total Number of Ports2
ST Port TypeSimplex
Environmental ComplianceRestriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Fiber Optic Cable Core/Cladding Specification9/125 µm
Fiber Optic Cable Wavelength1310 nm, 1550 nm
