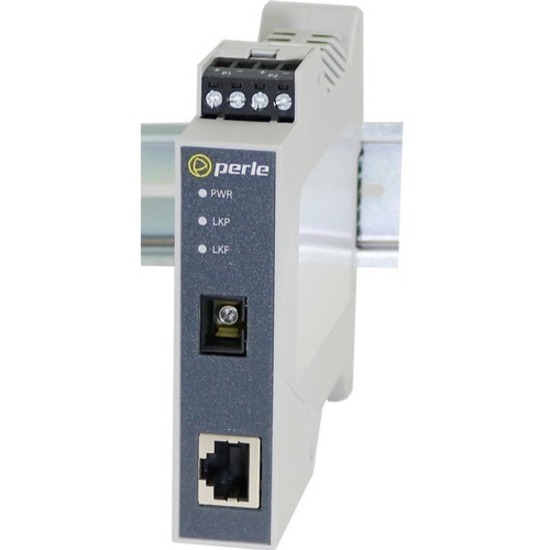

Perle SR-100-SC2D Transceiver/Media Converter
1 x Network (RJ-45) - 1 x SC Ports - SimplexSC Port - Multi-mode - 1310 nm, 1550 nm Fiber - Fast Ethernet - 100Base-TX, 100Base-BX, 100Base-BX-D - 2 km - AC Adapter - Rail-mountable
- SKU
- 05091140
- Category
- Transceivers/Media Converters
MSRP$448.00
$346.05
Save 23%Back ordered — ships when restocked.
Genuine Perle Systems through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- 05091140
- Category
- Transceivers/Media Converters
Overview
Perle SR-100 DIN Rail Media Converters transparently connect UTP copper to fiber. These Fast Ethernet Media Converters provide an economical path to:
• extend the distance of an existing network by linking CAT5/6/7 cabling to multimode or single mode fiber
• extend the life of non-fiber based equipment by enabling data transmission from 100Base-TX devices over fiber
• extend the distance between two copper-based devices or networks
• protect Ethernet data from EMI noise and interference by inter-connecting your copper-Ethernet devices over fiber in industrial plants.
Some SR-100 Media Converters are also available with an SFP slot or support for -40C to +75C (-40F to +167F) extended operating temperatures.
Network Administrators can rest assured with Perle's advanced features such as Auto-Negotiation, Auto-MDIX, Link Pass-Through, Far End Fault, and Pause which make the end to end link completely transparent. This allows for more efficient troubleshooting and less on-site maintenance. These cost and time saving features, along with a lifetime warranty and free worldwide technical support, make SR-100 Fast Ethernet Media Converters the smart choice for IT professionals.
Highlights
- 100Base-TX to 100Base-X Fiber Media Converters
- Link copper to multimode or single mode fiber
- Dual or Single fiber ST/SC connectors
- Extend network distances up to 120km
- Advanced Features: Link Pass-Through, Far-End Fault, Auto-MDIX
- Triple Power Input: Dual Terminal block power connector & T-Bus
Specifications
| Product Type | Transceiver/Media Converter |
|---|---|
| Manufacturer Part Number | 05091140 |
| Maximum Distance Supported | 2 km |
| Power Source | AC Adapter |
| Limited Warranty | Lifetime |
| Weight (Approximate) | 4.23 oz |
| Form Factor | Rail-mountable |
| Manufacturer | Perle Systems, Inc |
| Product Model | SR-100-SC2D |
| Product Name | SR-100-SC2D Transceiver/Media Converter |
| Network Technology | 100Base-TX, 100Base-BX, 100Base-BX-D |
| Product Series | SR-100 |
| Brand Name | Perle |
| Country of Origin | Taiwan |
| Height | 0.9" |
| Width | 4.5" |
| Depth | 3.9" |
| Environmentally Friendly | Yes |
| Ethernet Technology | Fast Ethernet |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Number of SC Ports | 1 |
| Media Type Supported | Twisted Pair, Optical Fiber |
| Fiber Mode Supported | Multi-mode |
| Total Number of Ports | 2 |
| SC Port Type | Simplex |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Fiber Optic Cable Core/Cladding Specification | 62.5/125 µm, 50/125 µm, 85/125 µm, 100/140 µm |
| Fiber Optic Cable Wavelength | 1310 nm, 1550 nm |
