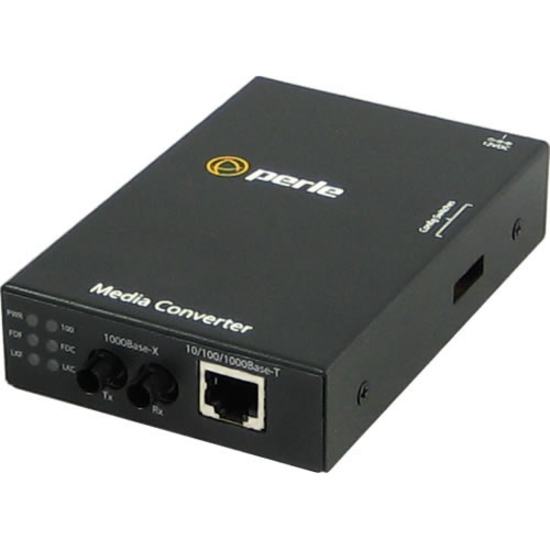

Perle S-1110-XT 10/100/1000 to Fiber Industrial Temperature Media Converter
Perle Systems

Perle S-1110-XT 10/100/1000 to Fiber Industrial Temperature Media Converter

1 x Network (RJ-45) - 1 x ST Ports - 10/100/1000Base-T, 1000Base-LX/LH - 10 km - Rail-mountable, Rack-mountable, Wall Mountable

SKU
05090710
Category
Transceivers/Media Converters

MSRP$1,082.00

$835.76

Save 23%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Perle Systems through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
05090710
Category
Transceivers/Media Converters

Overview

The S-1110-XT Industrial Temperature Media Converters address the need for transparently connecting 10/100/1000 Ethernet equipment that operate in extreme temperatures to fiber optic cable. The S-1110-XT Media Converters will operate in industrial grade temperatures of -40F to +167F (-40C to +75C) . Equipment found in traffic management, oil and gas pipelines, weather tracking, industrial and outdoor applications must function in temperatures that cannot be supported by a commercial based media converter. Boasting this extended temperature feature along with a rugged steel casing, the S-1110-XT Media Converter provides an economical path to extend the distance between two industrial devices subjected to harsh environments and severe temperatures such as security cameras, wireless access points, alarms, traffic controllers, sensors and tracking devices.

Highlights

  • For efficient encoding/decoding of data into light pulses and then sending them to the other end as electrical signals for a dependable photoelectric conversion
  • Supports optical fiber cable for durable performance, minimal signal loss, and fast data transfers to greater distances
  • Expand your network capabilities with this 2 transceiver/media converter
  • With 10/100/1000Base-T technology get up to 1000Mbps data transfer rate over optical fiber cable
  • The Rail-mountable provides convenient installation

Specifications

Product TypeTransceiver/Media Converter
Manufacturer Part Number05090710
Maximum Distance Supported10 km
Limited WarrantyLifetime
Weight (Approximate)11.20 oz
Form FactorRail-mountable, Rack-mountable, Wall Mountable
ManufacturerPerle Systems, Inc
Product ModelS-1110-S2ST10-XT
Product NameS-1110-XT 10/100/1000 to Fiber Industrial Temperature Media Converter
Network Technology10/100/1000Base-T, 1000Base-LX/LH
Brand NamePerle
Country of OriginCanada
Height1"
Width3.1"
Depth4.7"
Environmentally FriendlyYes
Ethernet TechnologyGigabit Ethernet
USBNo
DVINo
Number of Network (RJ-45) Ports1
Network (RJ-45)Yes
Management PortNo
Number of ST Ports1
Media Type SupportedTwisted Pair, Optical Fiber
Fiber Mode SupportedSingle-mode
Total Number of Ports2
ST Port TypeDuplex
Environmental ComplianceRegistration, Evaluation, Authorization and Restriction of Chemicals (REACH), Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
