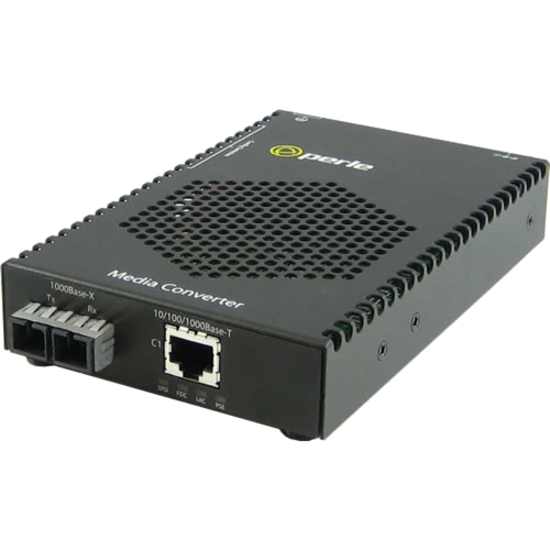

Perle S-1110P-S2SC10-XT Media Converter
Perle Systems

Perle S-1110P-S2SC10-XT Media Converter

1x PoE (RJ-45) Ports - 1 x SC Ports - Single-mode, Multi-mode - 10/100/1000Base-T, 1000Base-LX/LH - 10 km - Desktop, Rail-mountable, Rack-mountable, Wall Mountable

SKU
05090520
Category
Transceivers/Media Converters

MSRP$1,489.00

$1,150.13

Save 23%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Perle Systems through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
05090520
Category
Transceivers/Media Converters

Overview

The S-1110P-XT Industrial Temperature PoE Media Converters address the need for transparently connecting 10/100/1000 Ethernet equipment that operate in extreme temperatures to fiber while providing Power over Ethernet ( PoE ) to standards-based PoE and PoE+ compliant devices.

The S-1110P-XT PoE Media Converters will operate in industrial grade temperatures of -40F to +167F (-40C to +75C). Equipment found in traffic management, oil and gas pipelines, weather tracking, industrial and outdoor applications must function in temperatures that cannot be supported by a commercial based media converter. Boasting this extended temperature feature along with a rugged steel casing, the S-1110P-XT Media Converter provides an economical path to extend the distance between two industrial devices subjected to harsh environments and severe temperatures such as security cameras, wireless access points, alarms, traffic controllers, sensors and tracking devices.

Highlights

  • Supports twisted pair cables for durability and improved signal transfer while ensuring smooth and seamless data transfer
  • Attach multiple devices together or expand the number of devices connected to your existing network by using 2 transceiver/media converter
  • With 10/100/1000Base-T technology get up to 1000Mbps data transfer rate over twisted pair cable
  • The Desktop provides convenient installation

Specifications

Package Contents
  • S-1110P-S2SC10-XT Media Converter
  • Power Strain Relief Strap
Product TypeTransceiver/Media Converter
Manufacturer Part Number05090520
Maximum Distance Supported10 km
Limited WarrantyLifetime
Weight (Approximate)1 lb
Form FactorDesktop, Rail-mountable, Rack-mountable, Wall Mountable
ManufacturerPerle Systems, Inc
Product ModelS-1110P-S2SC10-XT
Product NameS-1110P-S2SC10-XT Media Converter
Network Technology10/100/1000Base-T, 1000Base-LX/LH
Brand NamePerle
Country of OriginCanada
Height1"
Width3.7"
Depth5.9"
Environmentally FriendlyYes
USBNo
DVINo
Management PortNo
Number of PoE (RJ-45) Ports1
Number of SC Ports1
Media Type SupportedOptical Fiber, Twisted Pair
Fiber Mode SupportedSingle-mode, Multi-mode
Total Number of Ports2
SC Port TypeDuplex
Environmental ComplianceRegistration, Evaluation, Authorization and Restriction of Chemicals (REACH), Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
Fiber Optic Cable Core/Cladding Specification50/125 µm, 62.5/125 µm
