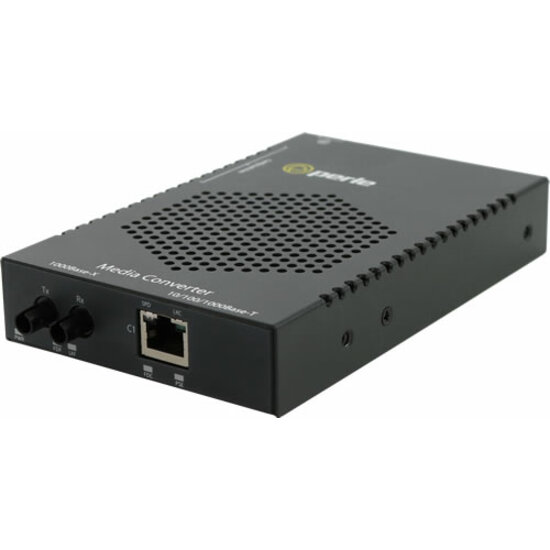

Perle S-1110HP-ST40 Transceiver/Media Converter
1 x Network (RJ-45) - 1 x ST Ports - DuplexST Port - Single-mode - 1310 nm Fiber - Gigabit Ethernet - 1000Base-EX, 10/100/1000Base-T - 40 km - Rack-mountable, Rail-mountable, Wall Mountable, Standalone
- SKU
- 05079434
- Category
- Transceivers/Media Converters
MSRP$2,579.00
$1,992.05
Save 23%Back ordered — ships when restocked.
Genuine Perle Systems through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- 05079434
- Category
- Transceivers/Media Converters
Overview
Perle S-1110HP Fiber Media Converters transparently connect copper to fiber while providing up to 100 Watts of IEEE 802.3bt compliant Hi-PoE PSE power to standards-based compliant devices such as pan-tilt-zoom (PTZ) security cameras with heaters, LED lighting in building management, and 802.11ax/ac wireless access points.
Perle Hi-PoE Media Converters are classified as Power Sourcing Equipment (PSE). While using standard UTP cables that carry Ethernet data, Perle Hi-PoE media converters provide power to Powered Devices (PDs) that support the IEEE 802.3bt PoE standard (up to 100W of power) or pre-standard solutions including UPoE, 4PPoE, PoE++, UltraPoE, 4 Pair PoE, etc. As this standard is fully backwards compatible with the existing IEEE 802.3af PoE and IEEE 802.3at PoE+ standards, all of those PD's are also supported. The S-1110HP Fiber Media Converter features single or dual 10/100/1000Base-T RJ45 ports to power one or two PD's per converter.
S-1110HP Fiber Media Converters come with fixed fiber ports that support multimode or single mode fiber with dual ST/SC connectors or single strand fiber SC connectors.
• extend the life of non-fiber based equipment by enabling data transmission from 10/100/1000Base-T devices over 1000Base-X fiber
• extend the distance of an existing network by linking CAT5/6/7 cabling to multimode or single mode fiber up to 160km
• protect Ethernet data from EMI noise and interference by inter-connecting your copper-Ethernet devices over fiber.
Network Administrators can "see-everything" with Perle's advanced features such as Auto-Negotiation, Auto-MDIX, Link Pass-Through, Fiber Fault Alert, and Loopback. This allows for more efficient troubleshooting and less on-site maintenance. These cost and time saving features, along with a lifetime warranty and free worldwide technical support, make Perle S-1110HP PoE Media Converters the smart choice for IT professionals.
S-1110HP-XT PoE Media Converters are also available with support for -40C to +75C (-40F to +167F) extended operating temperature ranges
Highlights
- 10/100/1000Base-T to 100/1000Base-X Fiber
- Dual Fiber SC/ST or Single Fiber SC Connectors
- Supplies IEEE 802.3bt Hi-PoE PSE (up to 100W) power
- Compatible with IEEE 802.3af PoE and IEEE 802.3at PoE+ PoE devices
- Dual or Single 10/100/1000Base-T PoE ports
- Advanced features: PD Reset, Fiber redundancy, Smart Link Pass-Through, Fiber Fault Alert, Auto-MDIX and Loopback
Specifications
| Product Type | Transceiver/Media Converter |
|---|---|
| Manufacturer Part Number | 05079434 |
| Maximum Distance Supported | 40 km |
| Limited Warranty | Lifetime |
| Weight (Approximate) | 14.11 oz |
| Form Factor | Rack-mountable, Rail-mountable, Wall Mountable, Standalone |
| Manufacturer | Perle Systems, Inc |
| Product Model | S-1110HP-ST40 |
| Product Name | S-1110HP-ST40 Transceiver/Media Converter |
| Network Technology | 1000Base-EX, 10/100/1000Base-T |
| Product Series | S-1110HP |
| Brand Name | Perle |
| Country of Origin | Canada |
| Height | 1" |
| Width | 5.9" |
| Depth | 3.7" |
| Environmentally Friendly | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Number of ST Ports | 1 |
| Media Type Supported | Twisted Pair, Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Total Number of Ports | 2 |
| ST Port Type | Duplex |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Restriction of Hazardous Substances (RoHS) |
| Fiber Optic Cable Wavelength | 1310 nm |
