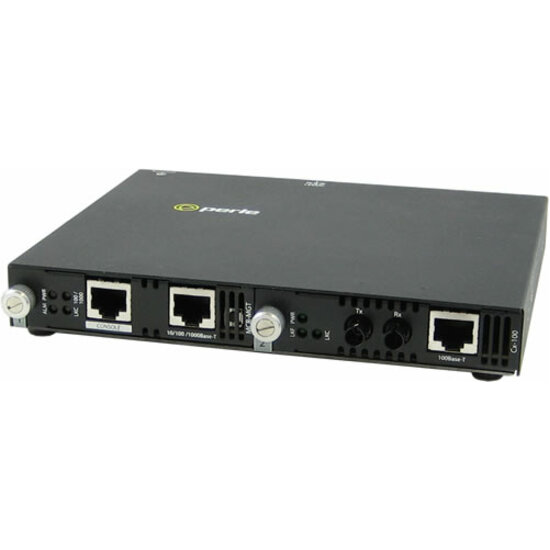

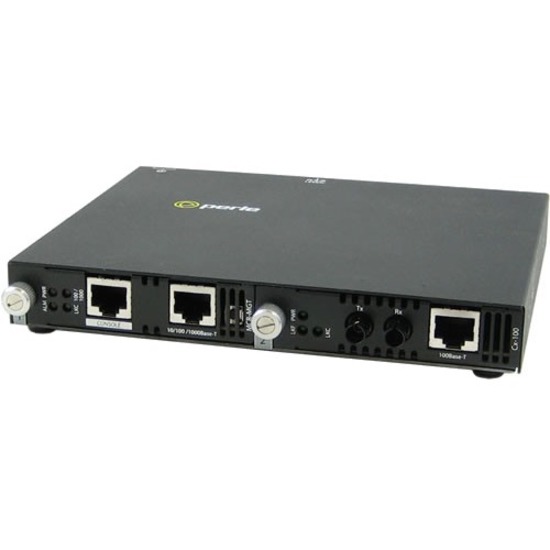

Perle SMI-100-S1ST20D - Fast Ethernet IP Managed Media Converter
1 x Network (RJ-45) - 1 x ST Ports - Management Port - Single-mode - 1310 nm, 1550 nm Fiber - Fast Ethernet - 10/100Base-T, 100Base-BX - 20 km - AC Adapter - Rack-mountable, Rail-mountable, Wall Mountable, Desktop
- SKU
- 05071284
- Category
- Transceivers/Media Converters
MSRP$1,065.00
$822.62
Save 23%Back ordered — ships when restocked.
Genuine Perle Systems through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- 05071284
- Category
- Transceivers/Media Converters
Overview
Perle's advanced line of Managed Fast Ethernet Media Converters , transparently connects UTP ethernet copper to multimode or single mode fiber. While providing an economical means of extending your existing copper based network connection, these media converters are SNMP manageable to enable complete control and status viewing of your fiber links.
Perle Fast Ethernet Managed Media Converters come standard with extensive cost and time saving features. In addition, a lifetime warranty and free worldwide technical support make Perle's Managed Fast Ethernet Converters the smart choice for IT professionals.
Highlights
- With Optical Fiber cable, get the desired data transfer rate up to a required distance
- Attach multiple devices together or expand the number of devices connected to your existing network by using 2 transceiver/media converter
- With 10/100Base-T technology get up to 100Mbps data transfer rate over twisted pair cable
- With Wall mounting feature, you can conveniently install the device while keeping the wires and cables organized
Specifications
| Package Contents |
|
|---|---|
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | 05071284 |
| Maximum Distance Supported | 20 km |
| Power Source | AC Adapter |
| Limited Warranty | Lifetime |
| Weight (Approximate) | 1.59 lb |
| Form Factor | Rack-mountable, Rail-mountable, Wall Mountable, Desktop |
| Manufacturer | Perle Systems, Inc |
| Product Model | SMI-100-S1ST20D |
| Product Name | SMI-100-S1ST20D - Fast Ethernet IP Managed Media Converter |
| Network Technology | 10/100Base-T, 100Base-BX |
| Brand Name | Perle |
| Country of Origin | Canada |
| Height | 0.9" |
| Width | 6.9" |
| Depth | 5.7" |
| Environmentally Friendly | Yes |
| Ethernet Technology | Fast Ethernet |
| USB | No |
| DVI | No |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Management Port | Yes |
| Number of ST Ports | 1 |
| Media Type Supported | Optical Fiber, Twisted Pair |
| Fiber Mode Supported | Single-mode |
| Total Number of Ports | 2 |
| Fiber Optic Cable Core/Cladding Specification | 9/125 µm |
| Fiber Optic Cable Wavelength | 1310 nm, 1550 nm |
