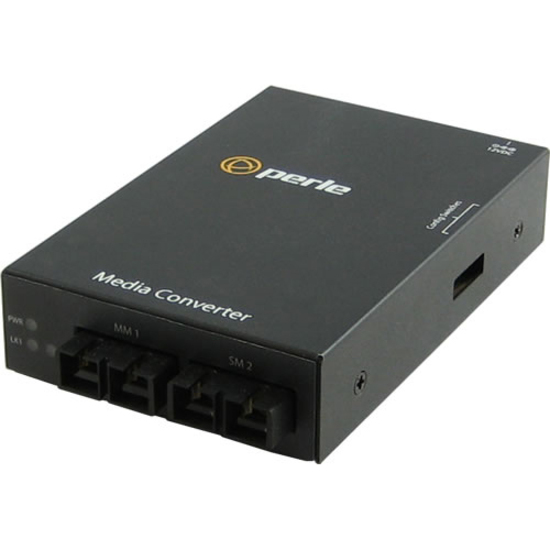

Perle S-1000MM-S2SC160 Media Converter
2 x SC Ports - 1000Base-ZX, 1000Base-SX - 160 km - Rack-mountable, Wall Mountable, Rail-mountable
- SKU
- 05060444
- Category
- Transceivers/Media Converters
MSRP$4,934.00
$3,811.09
Save 23%Back ordered — ships when restocked.
Genuine Perle Systems through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- 05060444
- Category
- Transceivers/Media Converters
Overview
Installed in a high density Perle Media Converter Chassis, Perle's feature rich CM-1000MM Gigabit Fiber to Fiber Managed Media Converter Modules enable transparent fiber extension of 1000Base-SX multimode fiber to 1000Base-SX multimode or 1000Base-LX/EX/ZX/BX single mode fiber.
Perle's advanced features make the end to end fiber link completely transparent. This allows for more efficient troubleshooting and less on-site maintenance. When used with a Media Converter Management Module in the chassis, configuration and monitoring of the fiber ports can be performed. In addition, a lifetime warranty and free worldwide technical support make Perle's CM-1000MM Gigabit Fiber to Fiber Managed Media Converter Modules the smart choice for IT professionals.
Whether you need to extend multimode to multimode or multimode to single mode, Perle has an extensive range of CM-1000MM Gigabit Fiber to Fiber Managed Media Converter Modules to meet your fiber conversion requirement.
Highlights
- Expand your network capacity and fulfill requirement with this 2 transceiver/media converter
- With 1000Base-ZX technology get up to 1000Mbps data transfer rate over optical fiber cable
- The Rack-mountable provides convenient installation
Specifications
| Package Contents |
|
|---|---|
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | 05060444 |
| Maximum Distance Supported | 160 km |
| Limited Warranty | Lifetime |
| Weight (Approximate) | 10.56 oz |
| Form Factor | Rack-mountable, Wall Mountable, Rail-mountable |
| Manufacturer | Perle Systems, Inc |
| Product Model | S-1000MM-S2SC160 |
| Product Name | S-1000MM-S2SC160 Media Converter |
| Network Technology | 1000Base-ZX, 1000Base-SX |
| Brand Name | Perle |
| Country of Origin | Canada |
| Height | 1" |
| Width | 3.1" |
| Depth | 4.7" |
| Environmentally Friendly | Yes |
| Number of SC Ports | 2 |
| Total Number of Ports | 2 |
| SC Port Type | Duplex |
| Fiber Optic Cable Core/Cladding Specification | 62.5/125 µm, 50/125 µm |
