Peplink

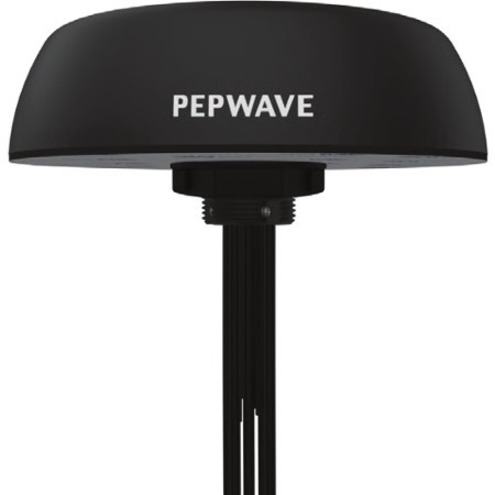

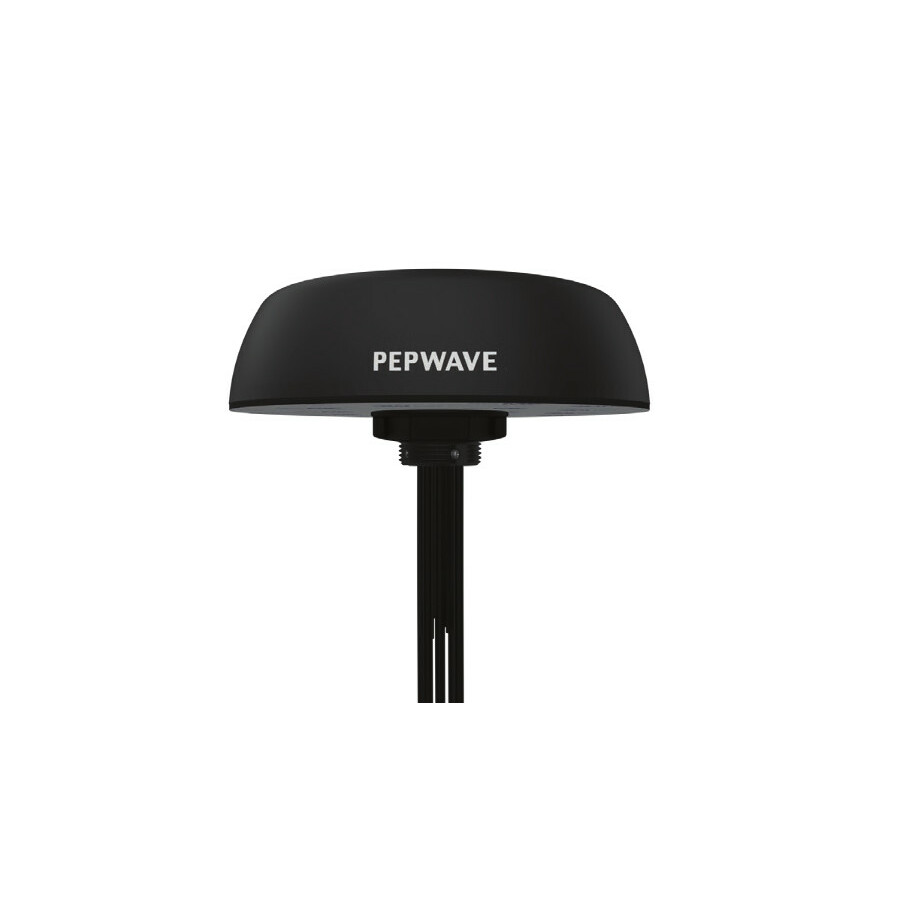

Pepwave 7-in-1 Cellular & Wi-Fi Antenna System with GPS Receiver
617 MHz to 960 MHz, 1710 MHz to 2700 MHz, 3400 MHz to 4200 MHz, 5000 MHz to 6000 MHz, 1561 MHz to 1602 MHz - 28 dB - Cellular Network, GPS, Wireless Data Network - Black - Wall/Panel, Pole - Omni-directional - QMA Connector
- SKU
- ANT-MB-42G-Q-B-1
- Category
- Antennas
MSRP$299.00
$263.72
Save 12%Back ordered
Back ordered — ships when restocked.
Genuine Peplink through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- ANT-MB-42G-Q-B-1
- Category
- Antennas
Highlights
- Built for 5G: Omni-directional 4x4 MIMO mobile antenna for the best performance.
- C-Band support: Exceptional performance in 3.3 and 4.2 GHz frequency range allowing to get a massive throughout speed boost.
- Ultra wide bandwidth: Wide frequency range (600-6000MHz) supporting LTE and 5G
- Wi-Fi: 2x2 MIMO dual band (2.4GHz & 5GHz) high gain omnidirectional antennas
- Robust design: IP68 rated, low profile and durable housing in Black or White color options.
Specifications
| Application/Usage | Cellular Network, GPS, Wireless Data Network |
|---|---|
| Package Contents |
|
| Product Type | Antenna |
| Manufacturer Part Number | ANT-MB-42G-Q-B-1 |
| Connector Type | QMA |
| Form Factor | Wall/Panel, Pole |
| Manufacturer | Peplink |
| Product Name | 7-in-1 Cellular & Wi-Fi Antenna System with GPS Receiver |
| Product Line | Mobility |
| Brand Name | Pepwave |
| Diameter | 8.19" |
| Height | 2.28" |
| Environmentally Friendly | Yes |
| Antenna Gain | 28 dB |
| Directivity | Omni-directional |
| Product Color | Black |
| Voltage Standing Wave Ratio (VSWR) | < 2.5 |
| Operating Frequency Range | 617 MHz to 960 MHz, 1710 MHz to 2700 MHz, 3400 MHz to 4200 MHz, 5000 MHz to 6000 MHz, 1561 MHz to 1602 MHz |
