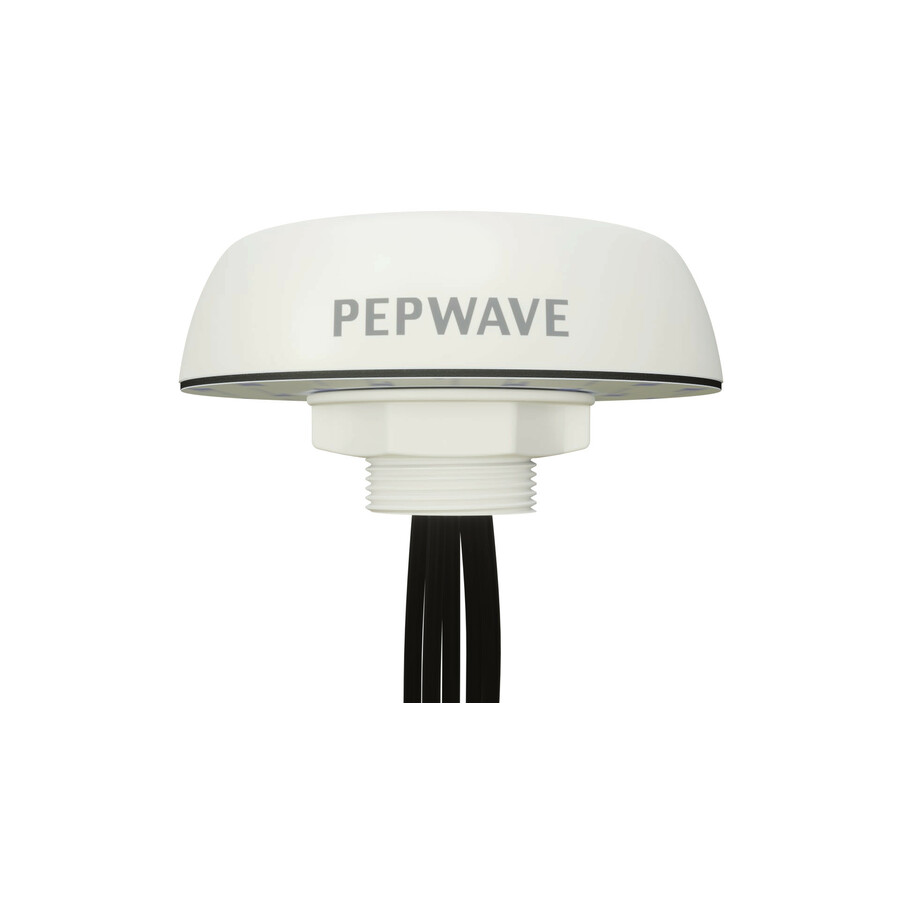

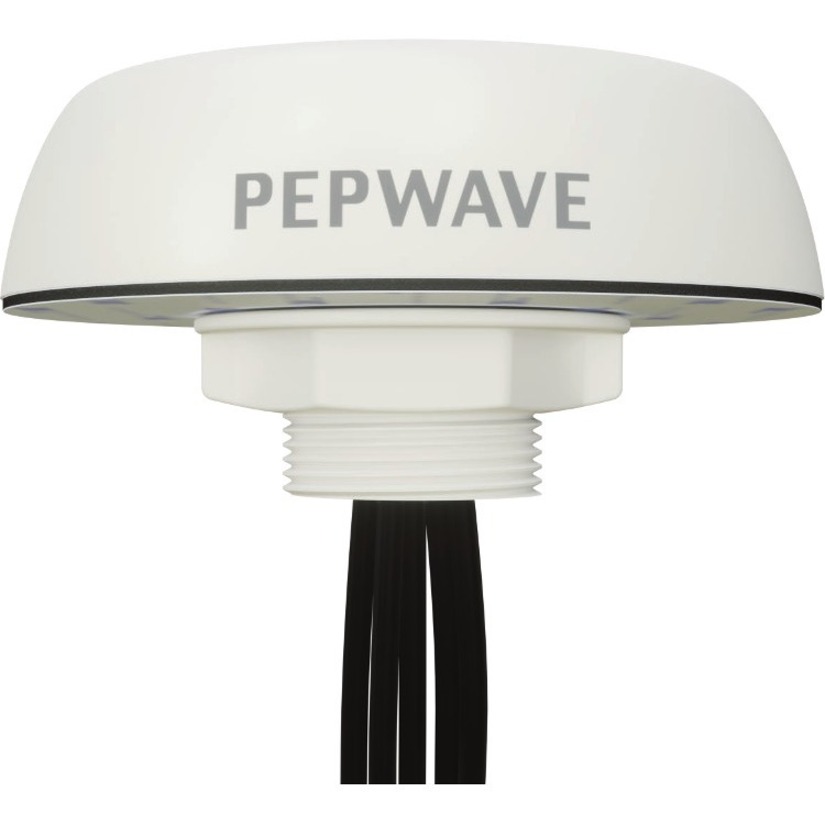

Pepwave 5-in-1 Cellular and Wi-Fi Antenna System with GPS Receiver
617 MHz to 960 MHz, 1710 MHz to 2700 MHz, 3400 MHz to 4200 MHz, 5000 MHz to 6000 MHz, 1561 MHz to 1602 MHz - 28 dB - Cellular Network, GPS, Wireless Data Network - White - Wall/Panel, Pole - QMA Connector
- SKU
- ANT-MB-22G-Q-W-1
- Category
- Antennas
MSRP$249.00
$219.62
Save 12%Back ordered — ships when restocked.
Genuine Peplink through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- ANT-MB-22G-Q-W-1
- Category
- Antennas
Overview
The Peplink Mobility 22G is a 5 in 1 antenna built for mobile applications. It supports 2x2 cellular MIMO for high bandwidth and solid reliability, dual-band (2.4GHz & 5GHz) Wi-Fi and GPS. It is also 5G ready and supports a wide range of global cellular frequencies. The GPS receiver is equipped with high gain LNA, making it ideal for location tracking.
The Mobility 22G has a solid housing made of UV stable plastic materials. Two color options are available (black and white) to fit different deployments. For easier installation, the antenna comes with different cable length options.
Applications
• Public Safety and mission critical connectivity
• Mobile healthcare
• Transportation Connectivity
Highlights
- 5-in-1 cellular and Wi-Fi antenna system with GPS receiver
- 2x2 Cellular frequencies:600-6000 MHz
- 2x2 Wi-Fi frequencies:2400-2500 MHz & 5000-6000 MHz
- Durable and UV-stable housing
- Black or white color options
- IP68 rated
Specifications
| Application/Usage | Cellular Network, GPS, Wireless Data Network |
|---|---|
| Package Contents |
|
| Product Type | Antenna |
| Manufacturer Part Number | ANT-MB-22G-Q-W-1 |
| Connector Type | QMA |
| Form Factor | Wall/Panel, Pole |
| Manufacturer | Peplink |
| Product Name | 5-in-1 Cellular and Wi-Fi Antenna System with GPS Receiver |
| Product Line | Mobility |
| Brand Name | Pepwave |
| Diameter | 5.12" |
| Height | 1.42" |
| Environmentally Friendly | Yes |
| Antenna Gain | 28 dB |
| Product Color | White |
| Voltage Standing Wave Ratio (VSWR) | < 2.5 |
| Operating Frequency Range | 617 MHz to 960 MHz, 1710 MHz to 2700 MHz, 3400 MHz to 4200 MHz, 5000 MHz to 6000 MHz, 1561 MHz to 1602 MHz |
