RAM Mounts Tough-Dock Power + Data with Latch for Zebra ET4x 10" Tablet
National Products

RAM Mounts Tough-Dock Power + Data with Latch for Zebra ET4x 10" Tablet

Docking - Tablet PC - Charging Capability - Synchronizing Capability - Pogo Pin - 1 x USB - Rugged

SKU
RAM-HOL-ZE21PDNLLU
Category
Cradles

MSRP$213.99

$160.64

Save 25%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine National Products through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
RAM-HOL-ZE21PDNLLU
Category
Cradles

Overview

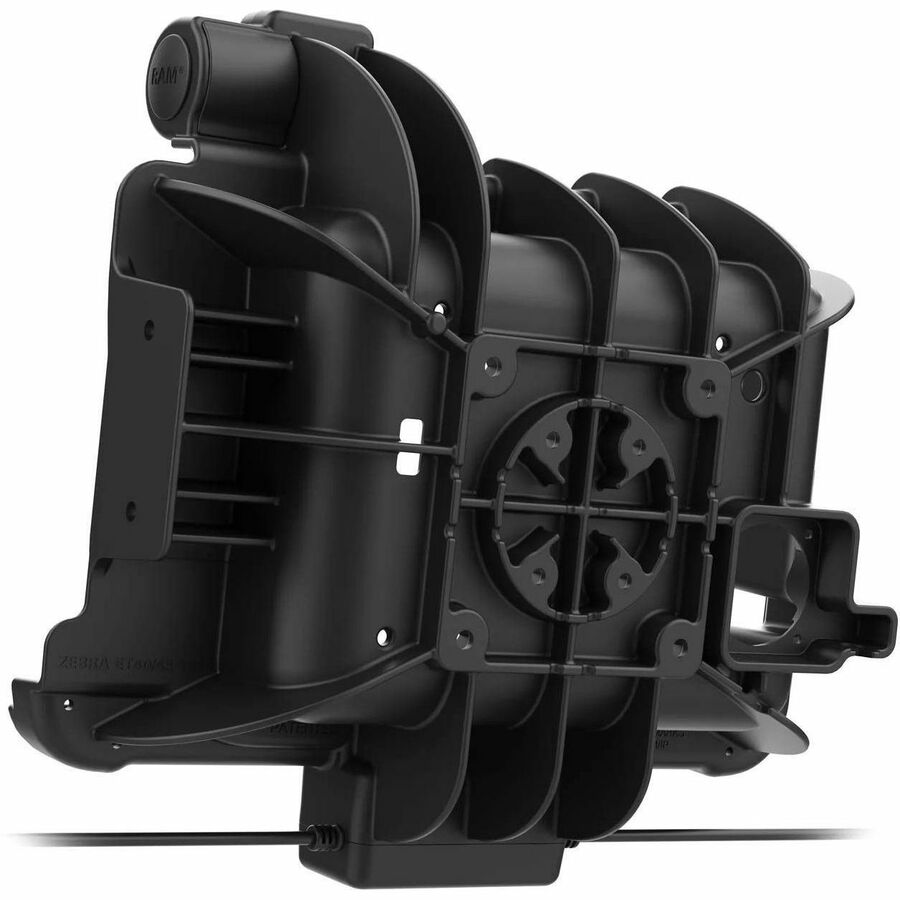

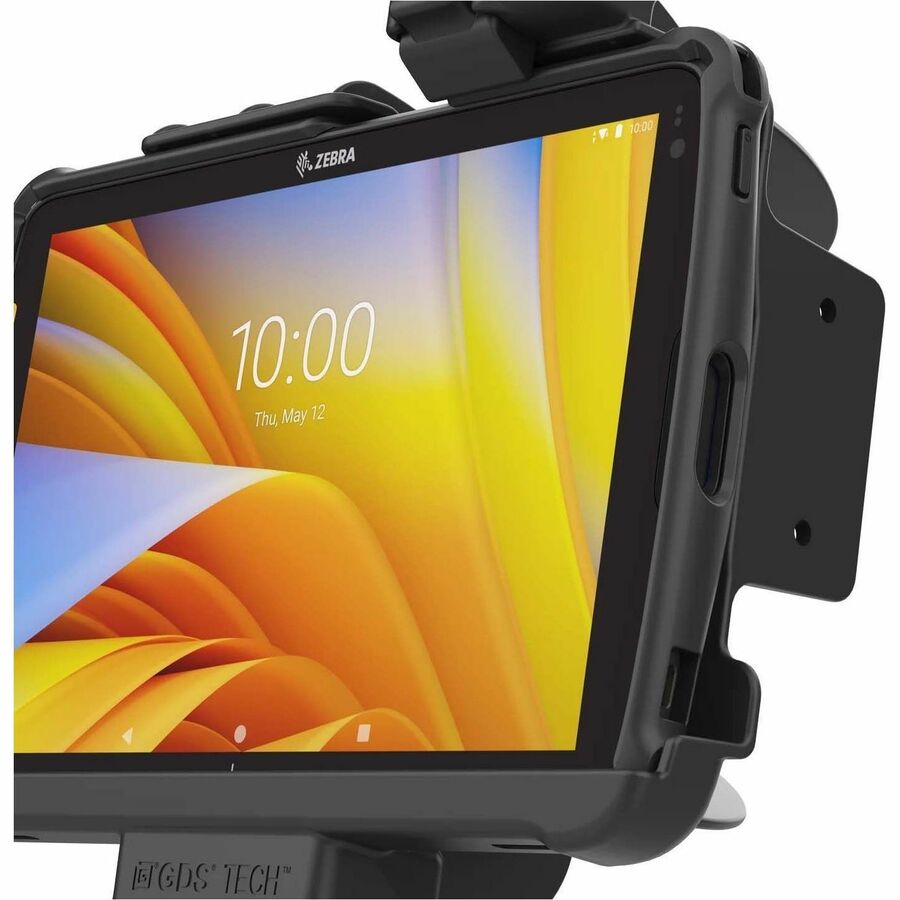

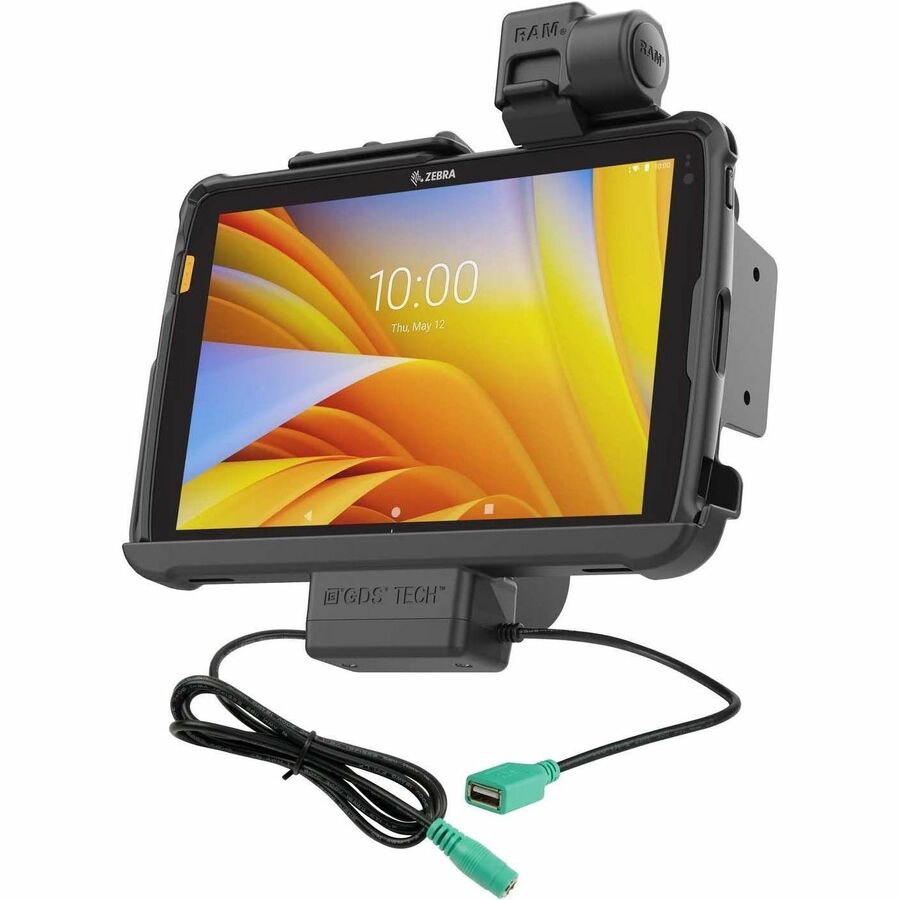

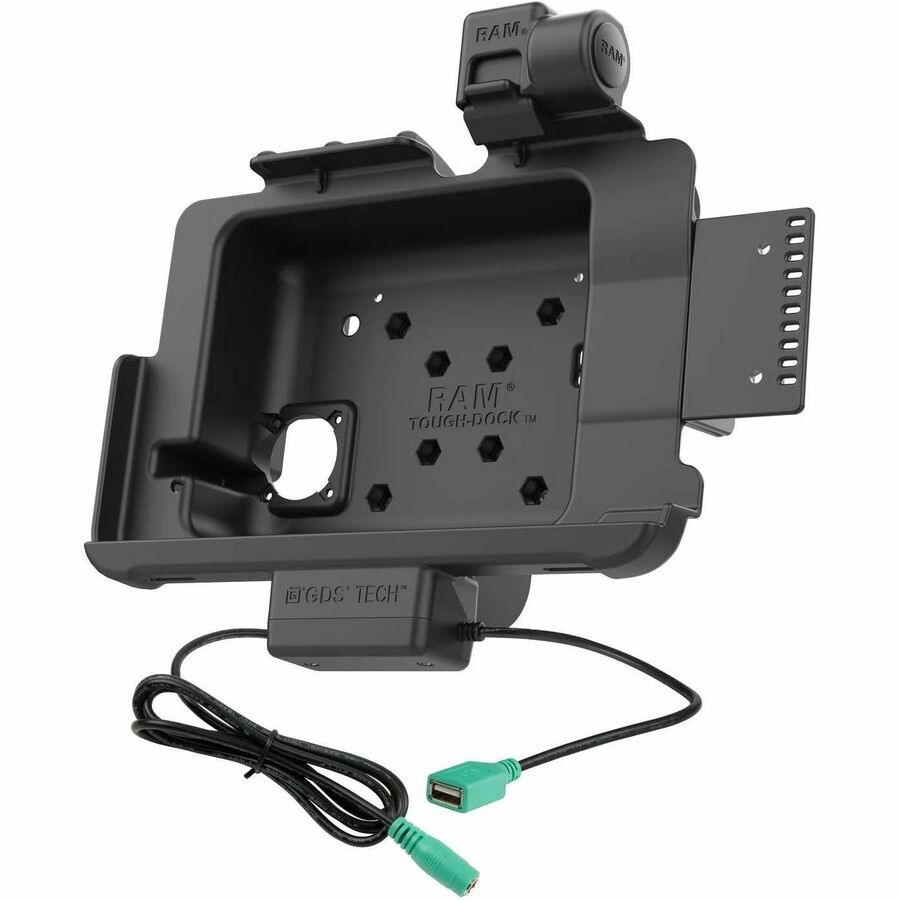

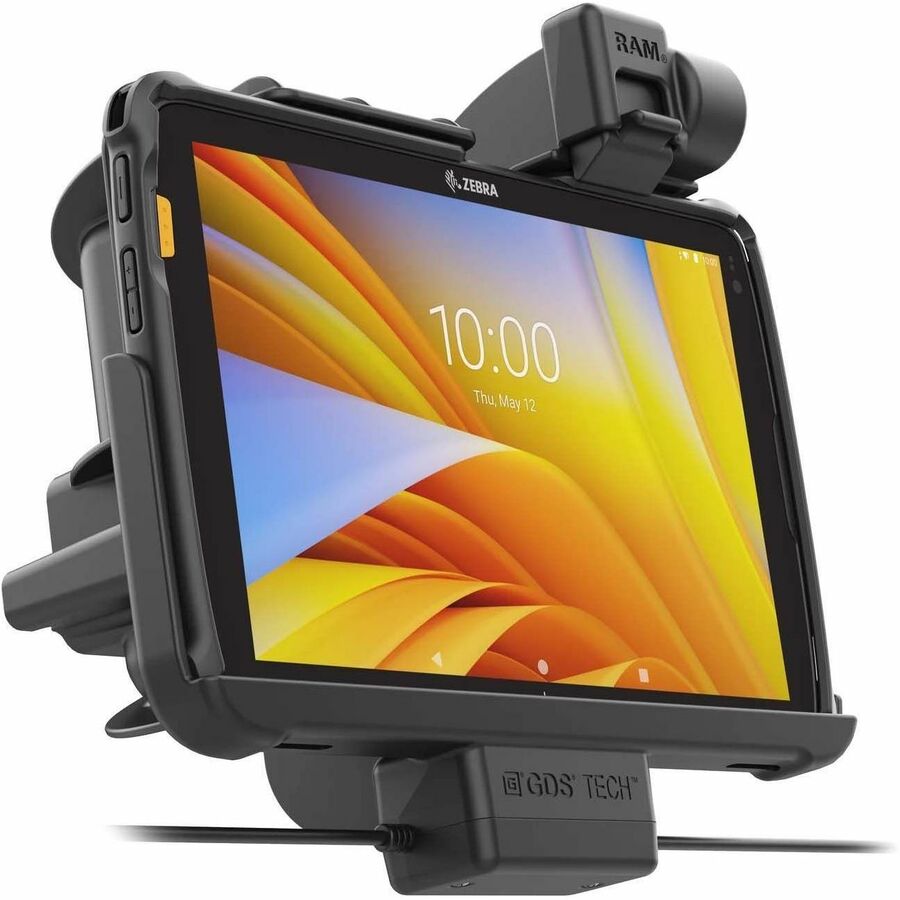

The RAM® Tough-Dock? Power + Data with Latch for Zebra ET4x 10" Tablet (RAM-HOL-ZE21PDNLLU) features a top latch design for securing the tablet without wear and tear on the dock itself. Power is provided via a 5.5mm DC barrel connector and allows you to keep the device charged through the pogo pin contacts when the device is docked. A single USB Type-A pigtail connector is provided for adding one additional input device. The dock also includes space in the back for tablet add-ons such as the Zebra Expansion Back, PowerPack Battery, and GDS® Ergo? accessories like the GDS® Roto-Mag? and GDS® Hand-Stand?. To mount this dock, pair any RAM® 4-hole AMPS or 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete your mounting solution. Take the solution a step further by taking advantage of the built-in 2-hole mounting plate compatible with RAM® 2-hole diamond base for additional device mounting such as a phone, scanner, printer, or any other handheld device.

Highlights

  • Form-fit + single USB Type-A dock designed specifically for the Zebra ET40 & ET45 10" tablets with Rugged Frame, including a top latch design for frequent docking and undocking of the tablet
  • When connected to a power source via DC 5.5mm power jack, integrated pogo pins provide power to the device while docked
  • Space in the back of the dock to accommodate tablet add-ons such as the Expansion Back, PowerPack Battery, and GDS® Ergo? accessories
  • Built-in 2-hole mounting plate for additional device mounting such as a phone, scanner, printer, and more
  • Backed by a 3-year warranty

Specifications

Package Contents
  • Tough-Dock Power + Data with Latch for Zebra ET4x 10" Tablet
  • 1 x Side Bracket for Accessory Mounting
  • 4 x #8-32 x 5/8" Machine Screws
  • 2 x #8-32 x 1/2" Machine Screws
  • 6 x #8-32 Nylock Nuts
  • 4 x #10-24 x 5/8" Machine Screws
  • 4 x #10-24 Nylock Nuts
  • 2 x Small Cable Ties
Host InterfacePogo Pin
Product TypeCradle
CompatibilityZebra Tablet PCs: ET40 ET45
Device SupportedTablet PC
Manufacturer Part NumberRAM-HOL-ZE21PDNLLU
Limited Warranty3 Year
Weight (Approximate)1.62 lb
Connectivity TechnologyDocking
ManufacturerNational Products, Inc
Product NameTough-Dock Power + Data with Latch for Zebra ET4x 10" Tablet
Product LineTough-Dock
Brand NameRAM Mounts
Charging CapabilityYes
Environmentally FriendlyYes
Total Number of USB Ports1
Synchronizing CapabilityYes
RuggedYes
Product MaterialHigh Strength Composite
Environmental ComplianceRestriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
