Ortronics Rack Mount Enclosure

Highlights

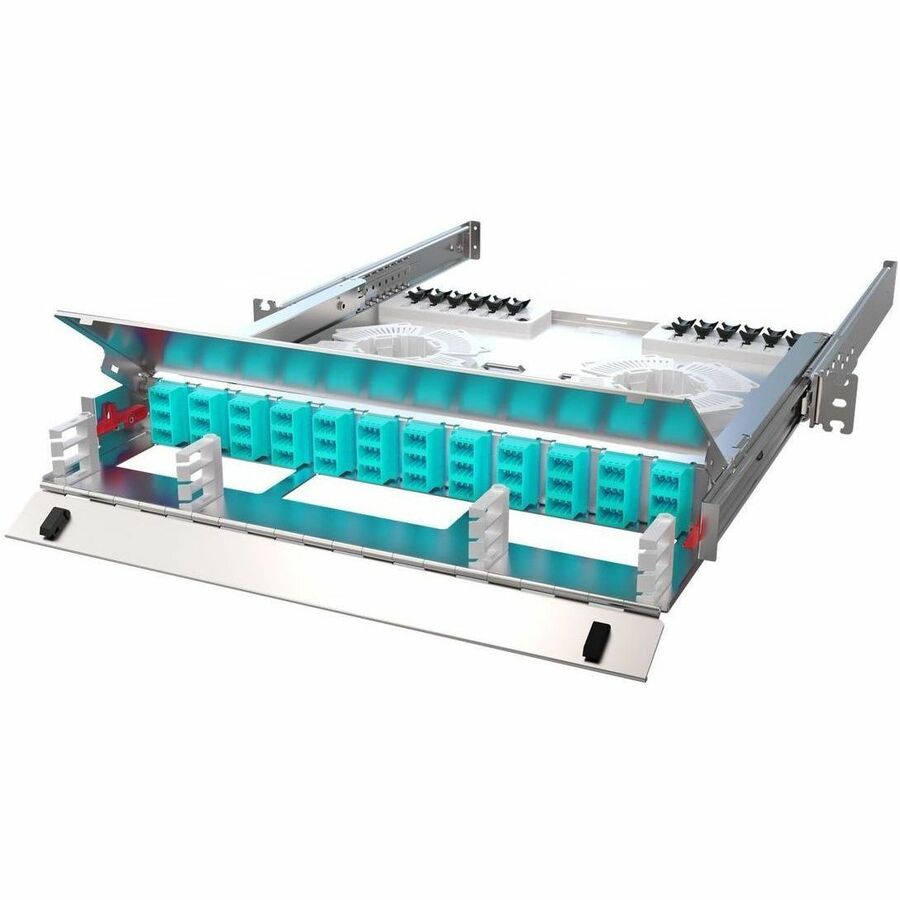

• Access Slide: By simply releasing the thumbscrews, the enclosure drawer slides forward up to 10 inches, clearing the plain of equipment, enabling unprecedented access to the fibers and cassettes.
• Spring Loaded Top Cover: With a simple press of the red buttons on each side of the enclosure the lid of the enclosure raises automatically, also releasing the front door to drop forward out of the way, enabling tremendous access to the front patching field.
• Over-Under: The Infinium Access Enclosure has an opening in the bottom. This innovative design along with the open enclosure ceiling allows the tech to remove the rear acclAIM connectors from the top or the bottom of the enclosure.
• Density: Maximum Fibers per Rack Unit: 288
• Maximum VSFF (MDC) Connectors per Rack Unit:144
• Maximum acclAIM Connectors per Rack Unit: 36
• Infinium acclAIM Connectivity: Minimize loss, longer lifecycle, simplify design, reduce labor.
• Cables Managed: Front cable managers support and route each connector tier in dense patching fields. The back features a cable tray with tiedown points, space for splice trays, cable spools for slack, and HiLOC anchor points for routing and strain relief.
