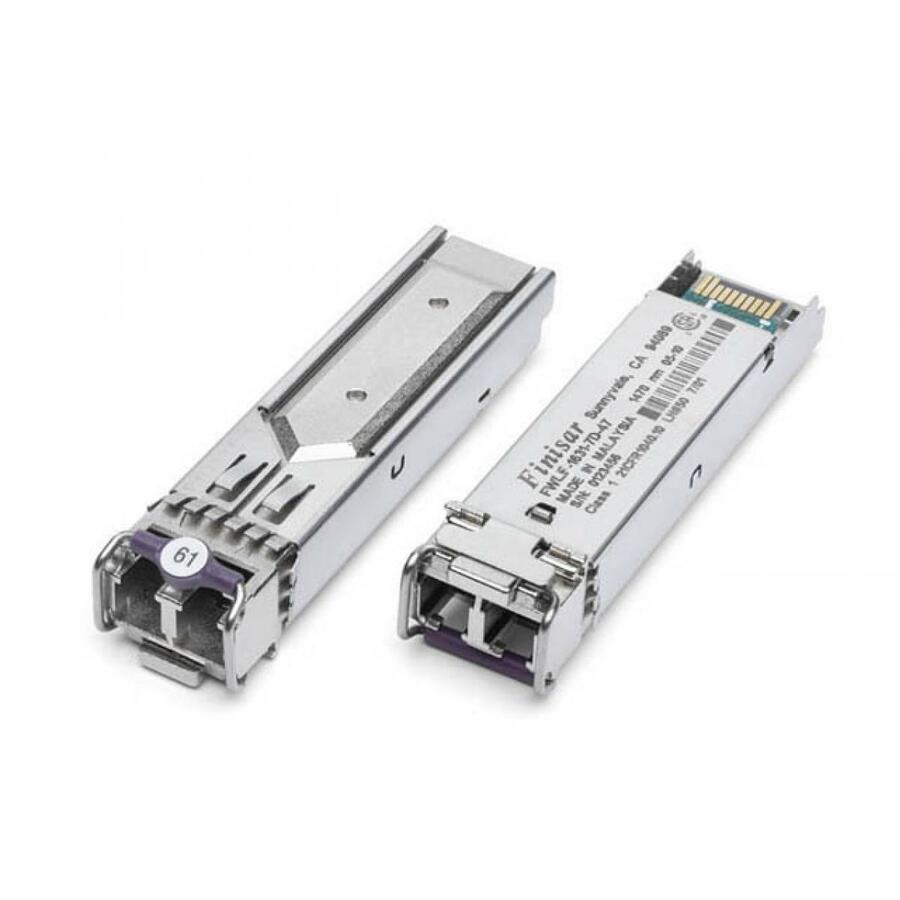

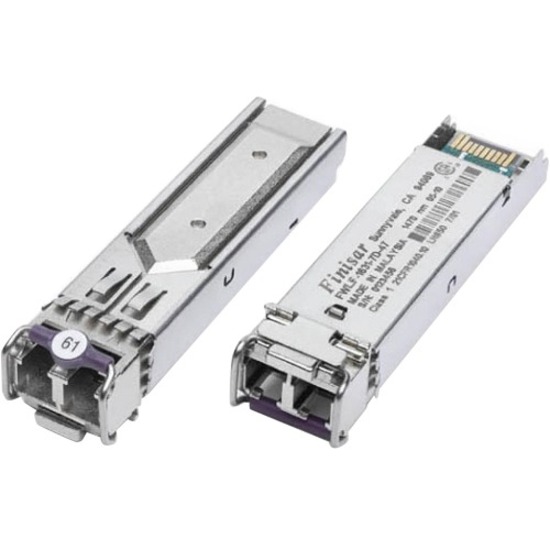

Finisar OC-48/STM-16 Fixed Channel DWDM 120km SFP Optical Transceiver
Finisar

Finisar OC-48/STM-16 Fixed Channel DWDM 120km SFP Optical Transceiver

For Data Networking, Optical Network - 1 x LC OC-48/STM-16 Network - Optical FiberGigabit Ethernet, 2.7 Gigabit Ethernet - OC-48/STM-16, Fiber Channel, OC-12, OC-3, OC-48, SONET/SDH - Hot-pluggable

SKU
FWLF163231
Category
Modules

MSRP$3,359.68

$2,912.26

Save 13%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Finisar through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
FWLF163231
Category
Modules

Overview

Finisar's FWLF1632xx optical transceivers are Small Form Factor Pluggable SFP transceivers designed for use in Dense Wavelength-Division Multiplexing (DWDM) links, for up to 120km link lengths and up to 2.7G bit rates.

The FWLF1632xx SFP transceivers are designed for service providers deploying SONET and DWDM networking equipment in metropolitan access and core networks. They are also compatible to Gigabit Ethernet data rate.

The FWLF1632xx SFP transceivers are RoHS 6 compliant. Basic digital diagnostic features are implemented as described in Finisar Application Note AN-2030. Enhanced diagnostic features are available as described in the DWDM SFP MSA.

Highlights

  • Hot-pluggable SFP footprint
  • Up to 2.7 Gb/s bi-directional data links
  • 100GHz DWDM ITU Grid, C-Band
  • Low dispersion DFB laser with 120km reach performance
  • Extended link budget with APD receiver technology
  • Wavelength controlled within ±0.1nm over life and temperature
  • Operating temperature: -5°C to 70°C

Specifications

Application/UsageData Networking, Optical Network
Product TypeSFP (mini-GBIC)
CompatibilityMSA Compliant
Manufacturer Part NumberFWLF163231
Interfaces/Ports Details1 x LC OC-48/STM-16 Network
Connector TypeLC
Form FactorHot-pluggable
ManufacturerFinisar Corporation
Product NameOC-48/STM-16 Fixed Channel DWDM 120km SFP Optical Transceiver
Network TechnologyOC-48/STM-16, Fiber Channel, OC-12, OC-3, OC-48, SONET/SDH
Brand NameFinisar
Environmentally FriendlyYes
Ethernet TechnologyGigabit Ethernet, 2.7 Gigabit Ethernet
Media Type SupportedOptical Fiber
Total Number of Ports1
