Finisar SFP+ Module
Finisar

Finisar SFP+ Module

For Optical Network, Data Networking - 1 x Duplex LC 100GBase-SR Network - Optical Fiber - 50/125 µm - 850 nm, 840 nm, 860 nm Wavelength - Multi-mode - 100 Gigabit Ethernet - 100GBase-SR - 25.78 Gbit/s - 0.10 km Maximum Distance - Hot-pluggable

SKU
FTLF8536W4BTV
Category
Modules

MSRP$189.31

$167.92

Save 11%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Finisar through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
FTLF8536W4BTV
Category
Modules

Overview

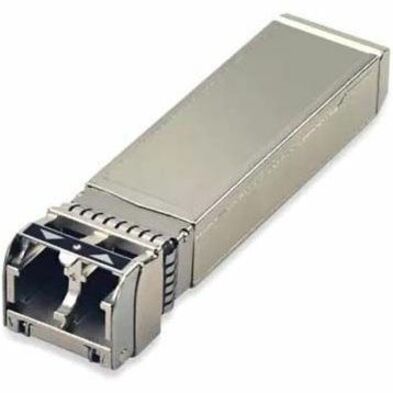

Finisar's FTLF8536W4BTV SFP+ transceivers are designed for use in 25Gb/s data rate over multimode fiber. They are compliant to IEEE802.3by, SFF-8472 Rev 12.2b and SFF-8402g , and compatible with SFF-8432a and applicable portions of SFF-8431 Rev. 4.1c . The transceiver is RoHS compliant and per Directive 2011/65/EUd . See Finisar Application Note AN-2038 for more details

Highlights

  • Up to 25.78 Gb/s bi-directional data links
  • Hot-pluggable SFP+ footprint
  • Built-in digital diagnostic functions
  • 850nm Oxide VCSEL laser transmitter
  • Duplex LC connector
  • RoHS compliant
  • 100m over M5F MMF (50/125 um OM4)
  • 70m over M5E MMF (50/125um OM3)
  • 20m on MMF (50/125?m OM2)
  • Metal enclosure, for lower EMI
  • 1.2W maximum power consumption
  • Single 3.3V power supply
  • Operating temperature range: -40°C to 85°C

Specifications

Application/UsageOptical Network, Data Networking
Product TypeSFP+
Manufacturer Part NumberFTLF8536W4BTV
Maximum Distance Supported0.10 km
Interfaces/Ports Details1 x Duplex LC 100GBase-SR Network
Connector TypeLC
Form FactorHot-pluggable
ManufacturerFinisar Corporation
Product NameSFP+ Module
Network Technology100GBase-SR
Brand NameFinisar
Country of OriginMalaysia
Maximum Data Transfer Rate25.78 Gbit/s
Ethernet Technology100 Gigabit Ethernet
Media Type SupportedOptical Fiber
Fiber Mode SupportedMulti-mode
Total Number of Ports1
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
Fiber Optic Cable Core/Cladding Specification50/125 µm
Fiber Optic Cable Wavelength850 nm, 840 nm, 860 nm
