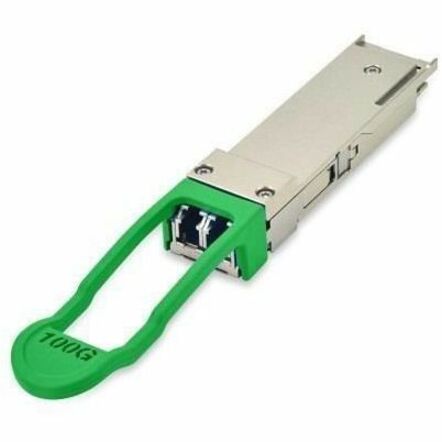

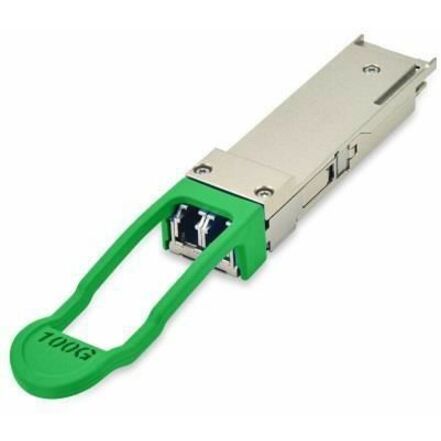

Finisar 2km 100G CWDM4 QSFP28 Optical Transceiver Module
Finisar

Finisar 2km 100G CWDM4 QSFP28 Optical Transceiver Module

For Data Networking, Optical Network - 1 x LC Duplex 100GBase-CWDM4 Network - Optical Fiber100 Gigabit Ethernet - 100GBase-CWDM4 - 103.10 Gbit/s - 2 km Maximum Distance - Hot-pluggable

SKU
FTLC1155RGPL
Category
Modules

MSRP$1,226.33

$1,069.40

Save 13%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Finisar through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
FTLC1155RGPL
Category
Modules

Overview

Finisar's FTLC1155RGPL QSFP28 transceiver modules are designed for use in 100 Gigabit Ethernet links on up to 2 km of single mode fiber. They are compliant with the QSFP28 MSA1 , CWDM4 MSA2 and portions of IEEE P802.3bm3 . Digital diagnostic functions are available via the I2C interface, as specified by the QSFP28 MSA and Finisar Application Notes AN-21534 and AN-21545 . The optical transceiver is compliant per the RoHS-6 Directive 2011/65/EU6

Highlights

  • Hot-pluggable QSFP28 form factor
  • Supports 103.1Gb/s aggregate bit rate
  • Power dissipation < 3.5W
  • RoHS-6 compliant
  • Commercial case temperature range of 0°C to +70°C
  • Adaptive CTLE
  • Single 3.3V power supply
  • Loss budget of 5 dB on up to 2 km of Single Mode Fiber (SMF) [with KR4 FEC]
  • 4x25Gb/s CWDM transmitter
  • 4x25G retimed electrical interface
  • Duplex LC receptacles
  • I2C management interface

Specifications

Application/UsageData Networking, Optical Network
Product TypeQSFP28
Manufacturer Part NumberFTLC1155RGPL
Maximum Distance Supported2 km
Interfaces/Ports Details1 x LC Duplex 100GBase-CWDM4 Network
Connector TypeLC
Form FactorHot-pluggable
ManufacturerFinisar Corporation
Product Name2km 100G CWDM4 QSFP28 Optical Transceiver Module
Network Technology100GBase-CWDM4
Brand NameFinisar
Country of OriginMalaysia
Environmentally FriendlyYes
Maximum Data Transfer Rate103.10 Gbit/s
Ethernet Technology100 Gigabit Ethernet
Media Type SupportedOptical Fiber
Total Number of Ports1
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
