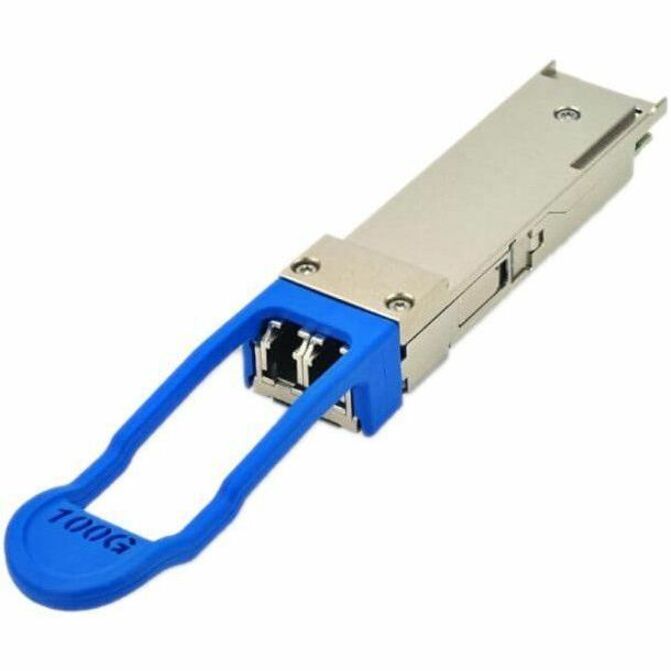

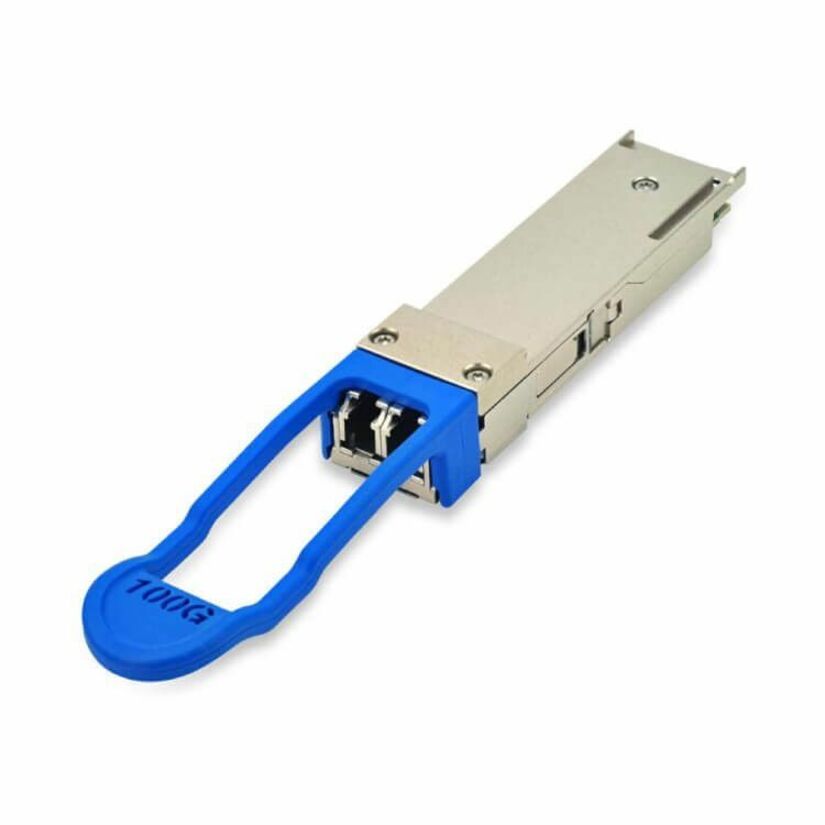

Finisar QSFP28 Module
For Data Networking, Optical Network - 1 x LC Duplex 100GBase-LR4 Neiwork - Optical Fiber - Single-mode - 100 Gigabit Ethernet - 100GBase-LR4 - 112 Gbit/s - 10 km Maximum Distance - Hot-pluggable
- SKU
- FTLC1154SDPL
- Category
- Modules
MSRP$1,315.80
$1,147.43
Save 13%Back ordered — ships when restocked.
Genuine Finisar through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- FTLC1154SDPL
- Category
- Modules
Overview
FTLC1154SDPL QSFP28 transceiver modules are designed for use in 100 Gigabit Ethernet and 4x28G OTN client interfaces over 10km of single mode fiber. They are compliant with the QSFP28 MSA, IEEE 802.3ba 100GBASE-LR4, and OTU4 4I1-9D1F requirements specified in ITU-T Recommendations G.959.1/G.709 and Supplement 39 (G.sup39). Digital diagnostics functions are available via the I2C interface, as specified by the QSFP28 MSA. The optical transceiver is RoHS compliant as described in Application Note AN-2038.
Highlights
- QSFP28 is the single answer to all your desired and specified application execution needs
- With 100GBase-LR4 technology, get up to 100Gbps data transfer rate over optical fiber cable
- Provides high performance and flexible solution with 100 Gigabit Ethernet connectivity
- Supports optical fiber cable for durable performance, minimal signal loss, and fast data transfers to greater distances
- With a single wavelength of light, the single mode fiber optic can carry data and transmit audio/video applications over miles of distance
- Hot-pluggable form factor for your convenience and simplicity of usage
- QSFP28 with data networking application/usage for maximum productivity and usability
Specifications
| Application/Usage | Data Networking, Optical Network |
|---|---|
| Product Type | QSFP28 |
| Manufacturer Part Number | FTLC1154SDPL |
| Maximum Distance Supported | 10 km |
| Interfaces/Ports Details | 1 x LC Duplex 100GBase-LR4 Neiwork |
| Connector Type | LC |
| Form Factor | Hot-pluggable |
| Manufacturer | Finisar Corporation |
| Product Name | QSFP28 Module |
| Network Technology | 100GBase-LR4 |
| Brand Name | Finisar |
| Environmentally Friendly | Yes |
| Maximum Data Transfer Rate | 112 Gbit/s |
| Ethernet Technology | 100 Gigabit Ethernet |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Total Number of Ports | 1 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
