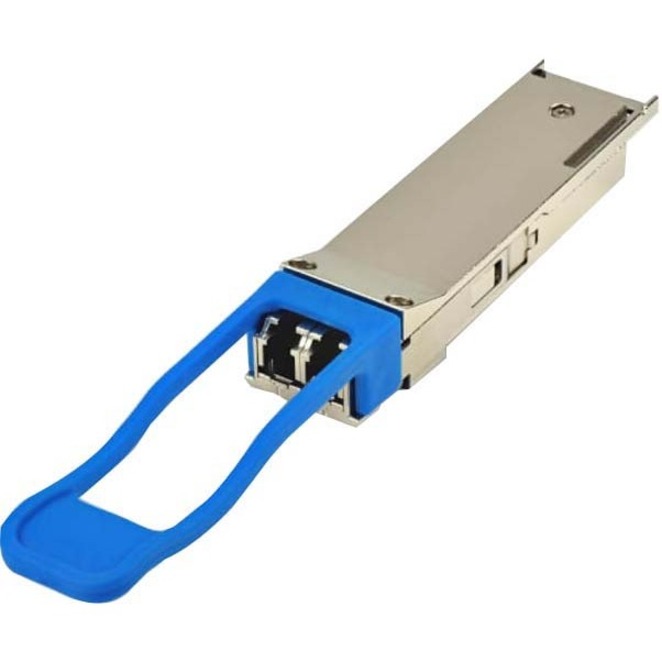

Finisar 40GBase-LR4 10km Gen2 QSFP+ Optical Transceiver
For Optical Network, Data Networking - 1 x LC Duplex 40GBase-LR4 Network - Optical Fiber - Single-mode - 40 Gigabit Ethernet - 40GBase-LR4 - Hot-pluggable
- SKU
- FTL4C1QE2C
- Category
- Modules
MSRP$1,798.76
$1,562.61
Save 13%Back ordered — ships when restocked.
Genuine Finisar through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- FTL4C1QE2C
- Category
- Modules
Overview
FTL4C1QE2C QSFP+ transceiver modules are designed for use in 40 Gigabit Ethernet links over single mode fiber. They are compliant with the QSFP+ MSA and IEEE 802.3ba 40GBASE-LR4. Digital diagnostics functions are available via an I2C interface, as specified by the QSFP+ MSA. The optical transceiver is RoHS compliant as described in Application Note AN-2038.
Highlights
- Hot-pluggable QSFP+ form factor
- Supports 41.2 Gb/s aggregate bit rates
- Power dissipation < 3.5W
- RoHS compliant
- Commercial temperature range 0°C to 70°C
- Single 3.3V power supply
- Maximum link length of 10km on Single Mode Fiber (SMF)
- Uncooled 4x10Gb/s CWDM transmitter
- XLPPI electrical interface
- Duplex LC receptacles
Specifications
| Application/Usage | Optical Network, Data Networking |
|---|---|
| Product Type | QSFP+ |
| Compatibility | MSA Compliant |
| Manufacturer Part Number | FTL4C1QE2C |
| Interfaces/Ports Details | 1 x LC Duplex 40GBase-LR4 Network |
| Connector Type | LC |
| Form Factor | Hot-pluggable |
| Manufacturer | Finisar Corporation |
| Product Name | 40GBase-LR4 10km Gen2 QSFP+ Optical Transceiver |
| Network Technology | 40GBase-LR4 |
| Brand Name | Finisar |
| Environmentally Friendly | Yes |
| Ethernet Technology | 40 Gigabit Ethernet |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Total Number of Ports | 1 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
