Tripp Lite series U521-000-F-RA USB4 Right-Angle Adapter (M/F)
1x USB Type C - Male - 1x USB4 Type C - Female - 7680 x 4320 Supported - Nickel Connector - Nickel Contact - Silver
- SKU
- U521-000-F-RA
- Category
- Connector Adapters
MSRP$20.00
$8.70
Save 57%Back ordered — ships when restocked.
Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- U521-000-F-RA
- Category
- Connector Adapters
Overview

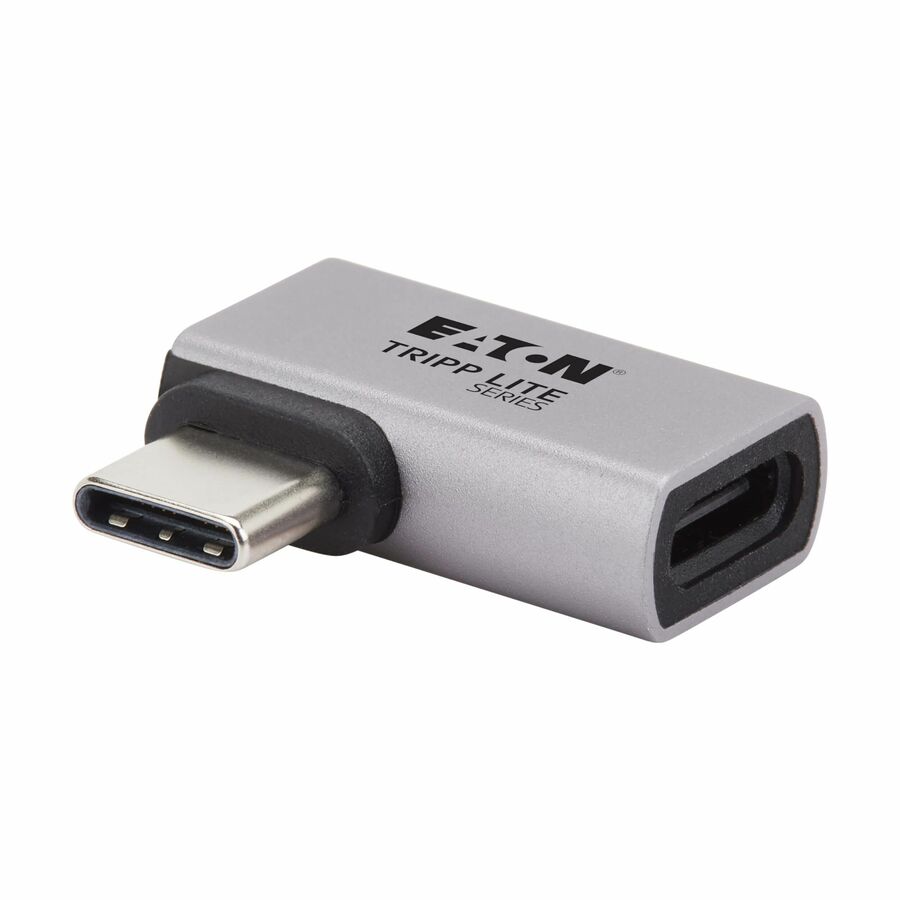

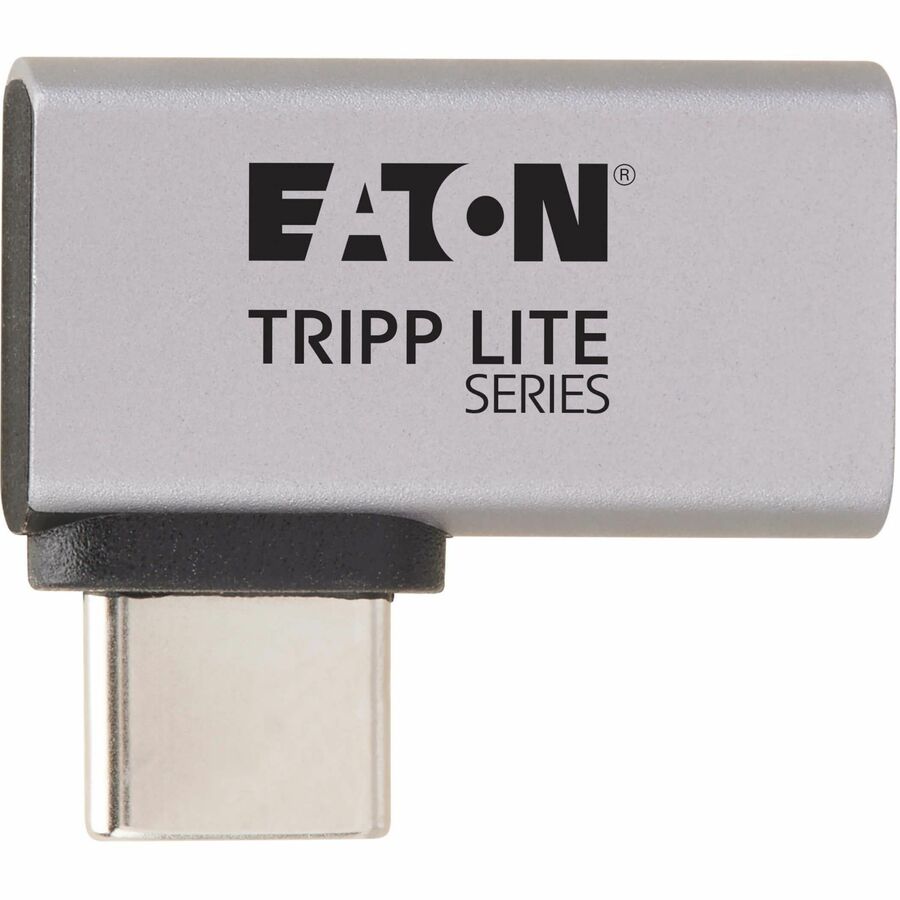

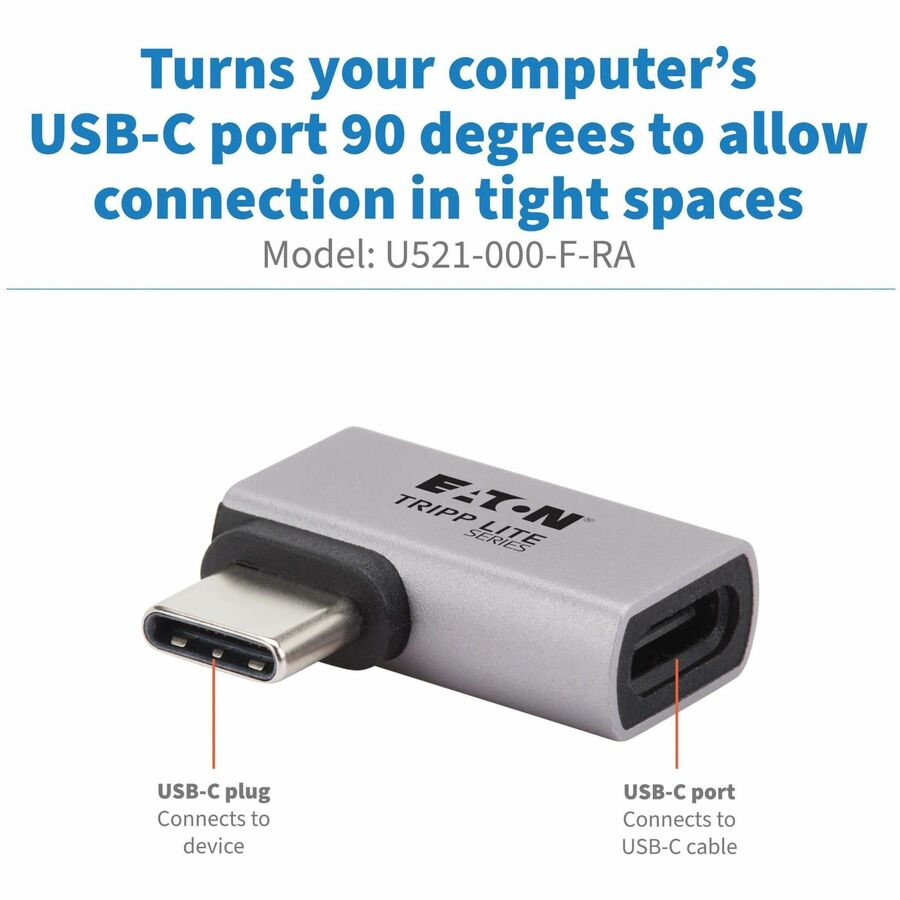

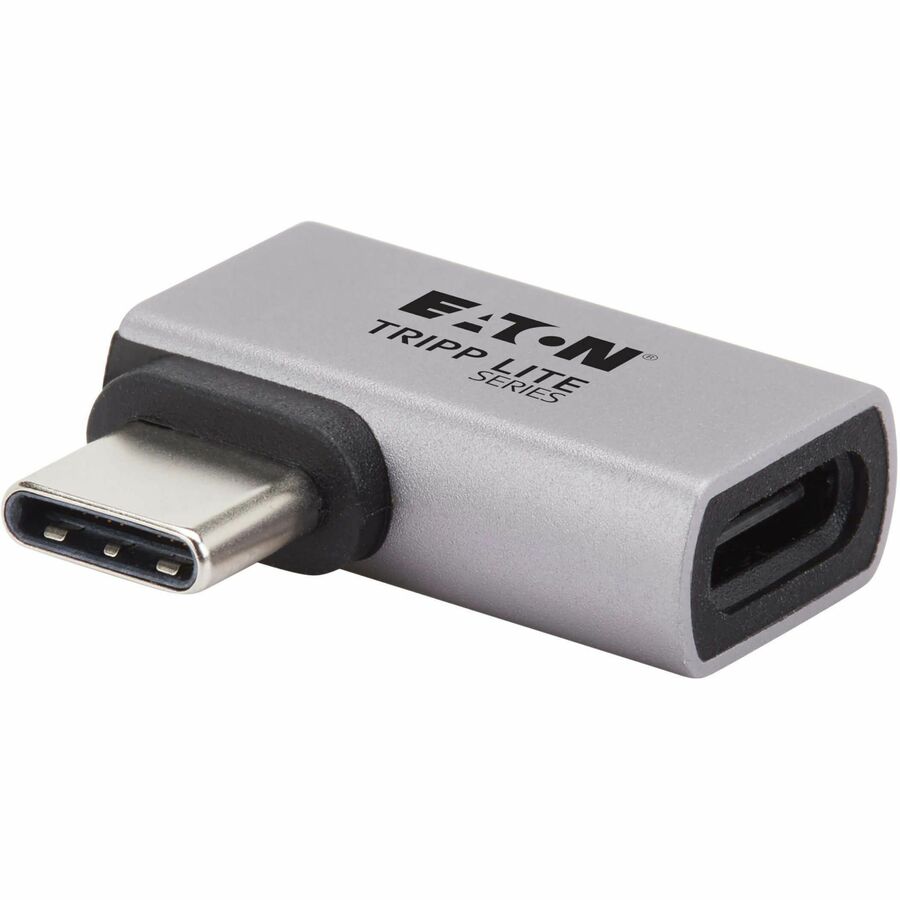

Space-Saving USB4 Adapter Connects a USB-C Cable at a Right Angle
The U521-000-F-RA converts a standard USB-C port to a low-profile 90-degree angle while preserving full USB4 (up to 40 Gbps) and Thunderbolt 4 host compatibility. The compact right-angle design enables closer placement to walls, rack panels, and mounting surfaces, and helps minimize cable strain in high traffic or space constrained deployments.
Maintains Full USB4 Functionality
Built for USB4 40 Gbps connections, this USB adapter supports high throughput data paths and tunneled DisplayPort signaling to ensure docks, NVMe enclosures, capture devices and other performance sensitive peripherals operate at intended bandwidths. The adapter is backward compatible with USB 3.2 and USB 2.0 specifications, so you can connect legacy devices. Note : Performance depends on the combined capabilities of the host, cable and device.
Supports 8K and High-Refresh 4K Video
When used with a DisplayPort 1.4 (HBR3) source and DSC-capable display, the U521-000-F-RA supports 8K at 60 Hz or 4K at 120 Hz. USB4 display tunneling ability makes it an ideal adapter for USB4/Thunderbolt docking stations, video conferencing equipment, gaming displays, and high resolution workflows. Note : DP Alt Mode at 8K/60 Hz or 4K/120 Hz typically uses all four DisplayPort lanes, reducing USB data fallback to USB 2.0. For simultaneous high bandwidth data and video, a USB4 host port is recommended.
5A Pass-Through Charging for Pro Laptops and Docks
The adapter supports up to 240W USB-C Power Delivery (PD 3.1 EPR) passthrough for quickly charging high-performance laptops and workstations when used with 5A EPR-capable charging cables and power adapters. It's universally compatible with USB-C PD charging devices and automatically negotiates down to PD 3.0 and below ( Ready to Use Right Out of the Package

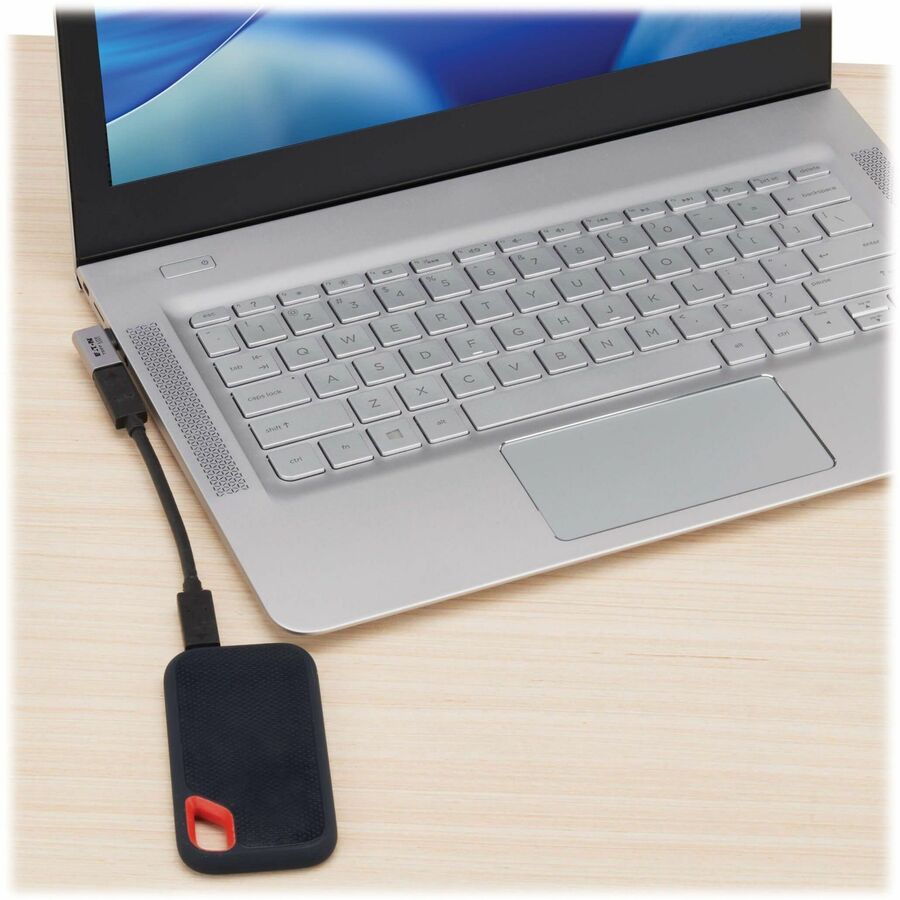

The plug-and-play adapter preserves USB4 signals across a wide range of laptops, computers, cables, hard drives, displays and other compatible devices, including the MacBook Pro, iPad, iPhone, Precision and ThinkPad. It requires no drivers or external power. It is small enough to carry in your pocket, purse, briefcase or laptop bag, so you'll always be ready to connect wherever you are.
Warranty
Limited Warranty: 3 Year
About Eaton
Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.
Highlights
- Connects smartphones, media servers and other USB devices to your computer
- Low-profile right-angle design helps reduce wear and tear on USB cables
- Supports USB4 up to 40 Gbps and Thunderbolt 4 for connecting data-intensive devices
- Supports 8K 60 Hz or 4K 120 Hz with DisplayPort 1.4 Alt Mode video passthrough
- Plug-and-play operation with no software required for easy, immediate installation
Specifications
| Product Type | A/V Adapter |
|---|---|
| Manufacturer Part Number | U521-000-F-RA |
| Limited Warranty | 3 Year |
| Features | Charging, USB Power Delivery (USB PD 3.1), Angled Connector, Molded, Display Stream Compression (DSC), High Bit Rate 3 (HBR3), Right-angled Connector, Plug and Play, Wear Resistant, Tear Resistant, HDR Support |
| Manufacturer | Eaton Corporation |
| Product Model | U521-000-F-RA |
| Product Name | U521-000-F-RA USB4 Right-Angle Adapter (M/F) |
| Brand Name | Tripp Lite series |
| Height | 0.3" |
| Width | 0.6" |
| Depth | 1.1" |
| Connector Type on First End | USB Type C |
| Connector Type on Second End | USB4 Type C |
| Maximum Resolution Supported | 7680 x 4320 |
| Adapter Type | USB4 |
| Connector Plating | Nickel |
| Contact Plating | Nickel |
| Product Color | Silver |
| Color Family | Silver |
| Connector on First End Details | 1x USB Type C - Male |
| Connector on Second End Details | 1x USB4 Type C - Female |
| Product Material | Thermoplastic Elastomers (TPE), Aluminum |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
