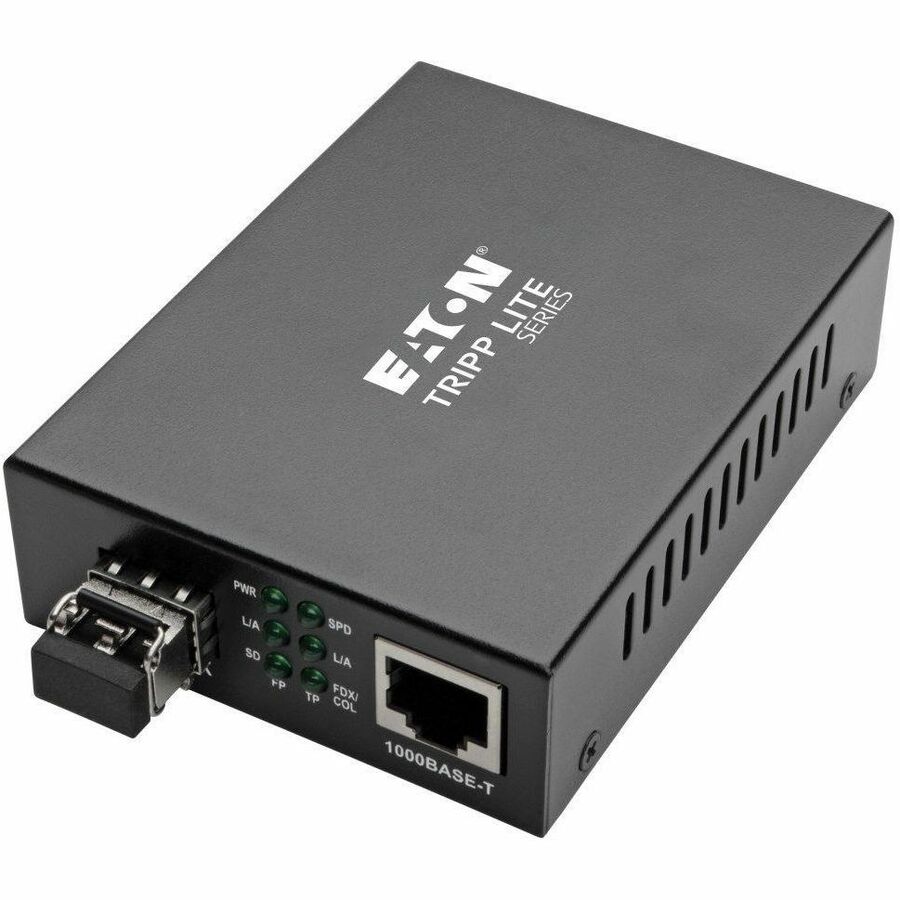

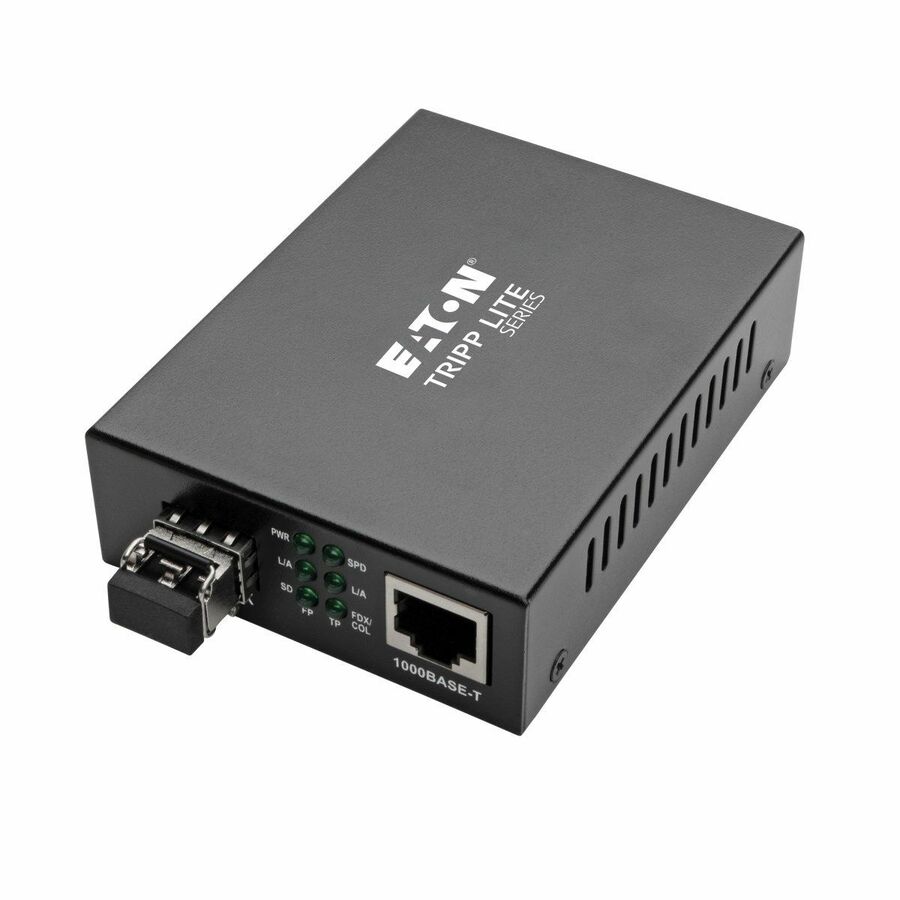

Tripp Lite by Eaton Gigabit Multimode Fiber to Ethernet Media Converter, 10/100/1000 LC, International Power Supply, 850 nm, 550M (1804.46 ft.)

The economical N785-INT-LC-MM Gigabit Multimode Fiber to Ethernet Media Converter allows you to extend your 10/100/1000 Mbps Ethernet connection up to 550 meters (1,804 feet) without the limitations of extra Cat5e/6 UTP cabling. Because Cat5e/6 cables are limited to only 100 meters, it is more effective to use LC multimode fiber optic cabling for greater distances.

Use copper UTP cabling to connect one 850 nm N785-INT-LC-MM converter to your network device, such as a computer, and another converter to a network switch. The two converters are connected by a multimode fiber optic cable with LC connectors. The N785-INT-LC-MM supports 50/125 multimode cable up to 550 meters and 62.5/125 multimode cable up to 400 meters.

Monitoring and controlling your network nodes is easy with the converter's advanced features, such as automatic network speed sensing, full/half-duplex auto-detection and automatic MDI/MDI-X configuration. Six LEDs indicate the converter's Ethernet network and fiber link status at a glance.

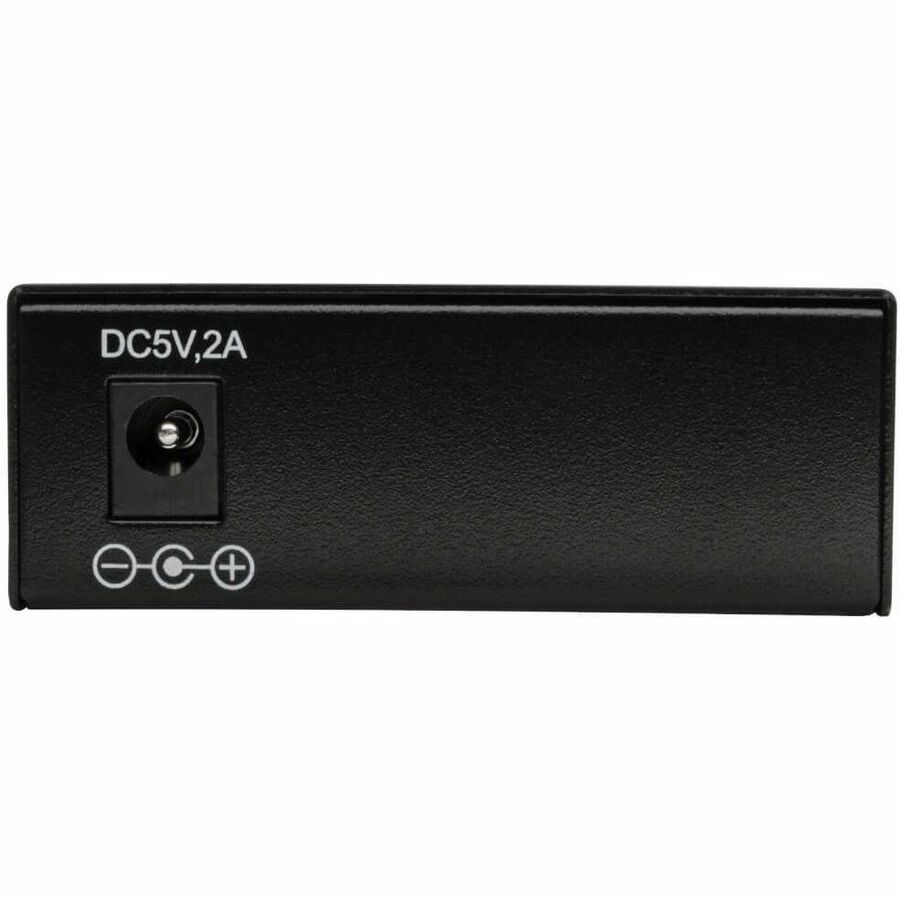

The N785-INT-LC-MM includes an external power supply with international plug adapters for North America (NEMA 5-15P), the United Kingdom (BS 1363), Europe (CEE 7/16 Schuko) and Australia (AS/NZS 3112). The plug-and-play fiber-to-copper media converter requires no software or drivers and is easy to set up.

Features

Extends a Gigabit Ethernet Signal up to 550 m (1,804 ft.) Using LC Multimode Cable

• Converts UTP copper connection to duplex fiber over long distance, then back to copper at opposite end while auto-sensing the proper speed

• Fiber optic technology more effective than Cat5e/6 over long distances

• Supports 50/125 multimode fiber optic cabling up to 550 m

• Supports 62.5/125 multimode fiber optic cabling up to 400 m

• Connection requires an N785-INT-LC-MM at both ends

Advanced Monitoring and Control

• Supports automatic sensing of network speed

• Supports both full-duplex and half-duplex operation

• Supports automatic MDI/MDI-X configuration

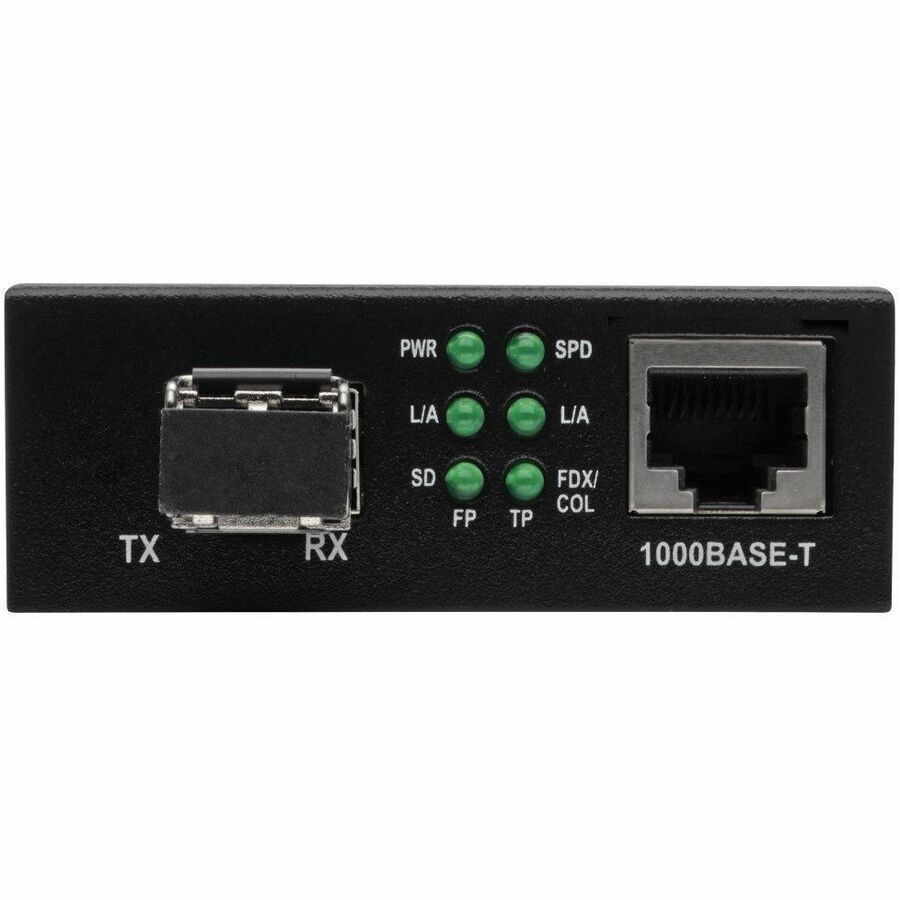

• 6 LEDs indicate network and fiber link status at a glance

Plug-and-Play Operation

• No additional software or drivers required

• Compact unit sets up in minutes

• Durable metal housing designed to last

• Power supply includes international plug adapters for North America, U.K., Europe and Australia

More from the Manufacturer

Extends a Gigabit Ethernet Signal Up to 550 Meters via LC Multimode Fiber Cable

With Tripp Lite’s economical N785-INT-LC-MM Gigabit Multimode Fiber to Ethernet Media Converter, you can extend a 10/100/1000 Mbps Ethernet signal up to 550 meters (1,804 ft.) without the limitations of Cat5e/6 UTP cabling. Because Cat5e/6 cables are limited to only 100 meters, it is more effective to use LC multimode fiber optic cabling for greater distances.

Typical Applications

Extending a network up to 550 meters in a large office, church or convention center

Providing network connectivity to employees in a secluded area of a facility

Connecting office workstations to a distantly located switch

Supports Auto-Sensing of Network Speed and Other Advanced Functions

Monitoring and controlling your network nodes is easy with the N785-INT-LC-MM’s advanced features, such as automatic network speed sensing, full/half-duplex auto-detection and automatic MDI/MDI-X configuration. Six LEDs indicate the converter’s Ethernet network and fiber link status at a glance.

Supports Both 50/125 and 62.5/125 Multimode Cable

Use copper UTP cabling to connect one 850 nm N785-INT-LC-MM converter to your network device, such as a computer, and another converter to a network switch. The two converters are connected by a multimode fiber optic cable with LC connectors. The N785-INT-LC-MM supports 50/125 multimode cable up to 550 meters and 62.5/125 multimode cable up to 400 meters (1,312 ft.).

Easy to Install with Plug-and-Play Operation

With no software or drivers required for installation, the N785-INT-LC-MM is completely plug-and-play. Featuring a durable metal housing, this compact fiber-to-copper media converter can be placed wherever a standard AC power outlet is available, and does not have to be near a computer, server or other signal source. It includes an external power supply with international plug adapters for North America (NEMA 5-15P), the United Kingdom (BS 1363), Europe (CEE 7/16 Schuko) and Australia (AS/NZS 3112).

Comes Backed by a Two-Year Warranty

The N785-INT-LC-MM comes with a two-year warranty. It’s manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite’s commitment to environmental responsibility.

Why Choose Tripp Lite?

Founded in 1922 in Chicago, Illinois, Tripp Lite is a leading manufacturer of products to power, protect, manage, house, cool, connect and mount your equipment. With a large selection of connectivity products, Tripp Lite has everything from USB hubs and reversible USB cables to fiber-optic cables and over Cat5e/Cat6 signal extenders. Whether you need to connect high-speed networks to switches, routers and servers in your data center, or send high-resolution video signals to displays and digital signs, Tripp Lite has the complete solution. Plus, before and after your purchase, our Chicago-based, in-house technical support specialists are available to assist you by phone, email and live chat. With 95 years of quality products and service, Tripp Lite is a brand you can trust.
