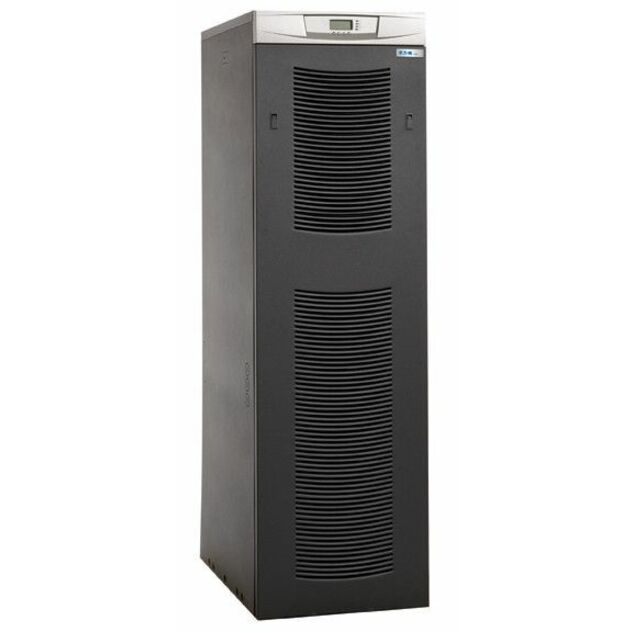

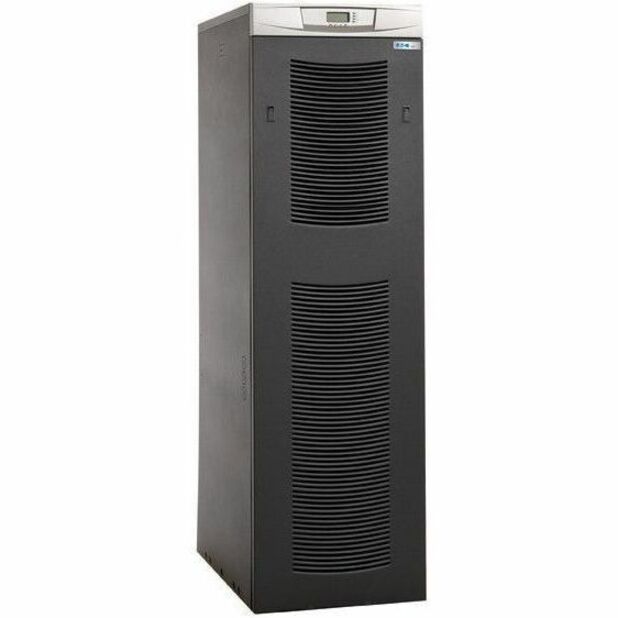

Eaton 9355 10kVA External UPS

External - 22 Minute Stand-by - 208 V AC Input - 208 V AC Output - 1 x Hardwired - Serial Port - USB - LCD/LED Display

SKU: KA1022130000010
Category: Industrial UPS

MSRP$32,055.00

$21,614.60

Save 33%

Back ordered

Back ordered — ships when restocked.

Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU: KA1022130000010
Category: Industrial UPS

Overview

About Eaton

We're dedicated to improving people's lives and the environment with power management technologies that are more reliable, efficient, safe and sustainable. Every day, all around the world, people depend on technology, transportation, energy and infrastructure to live and work. With rapid growth in electrification, an energy transition driven by climate change and explosive growth in connectivity, we’re well positioned to solve the world’s toughest electrical and mechanical power management challenges. Because that’s what really matters. And we’re here to make sure it works.

Specifications

Application/Usage	IT, Corporate, Healthcare, Banking, Industrial
Battery Chemistry	Lead Acid
Product Type	Double Conversion Online UPS

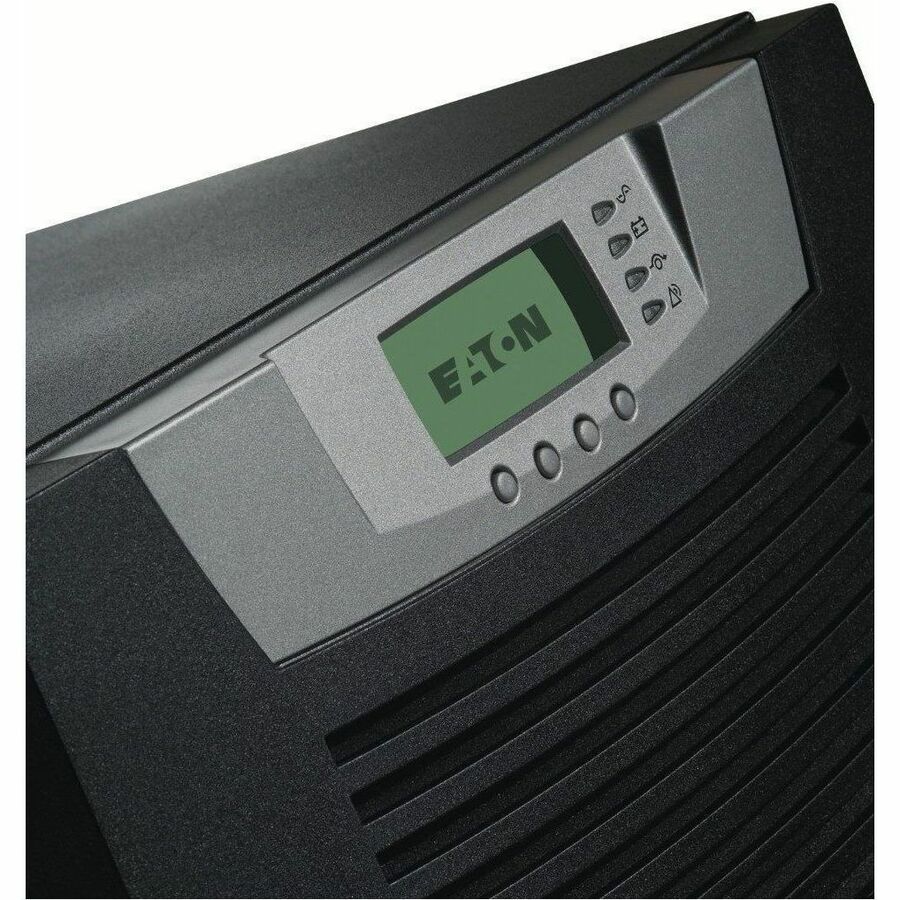

Display	LCD/LED
Input Voltage	208 V AC
Manufacturer Part Number	KA1022130000010
Packaged Quantity	1 Pack
Output Voltage	208 V AC
Weight (Approximate)	608.48 lb
Form Factor	External
Manufacturer	Eaton Corporation
Product Name	9355 10kVA External UPS
Network Management	DB-9 RS-232, SNMP/HTTP Remote Monitoring
Product Series	9355
Brand Name	Eaton
Plug/Connector Type	Hardwired
Output Frequency	50 Hz, 60 Hz
Height	47.6"
Width	12"
Depth	33.7"
Input Frequency	45 Hz, 65 Hz
Phase	Three Phase
Receptacle Type	Hardwired
Battery Capacity	9000 mAh
USB	Yes
Maximum Operating Temperature	104°F (40°C)
Network (RJ-45)	Yes
Serial Port	Yes
Number of Batteries	64
Backup/Run Time (Full Load)	22 Minute
Load Capacity (VA)	10000 VA
Load Capacity (Watt)	9000 W
EPO Port	Yes
Operating Humidity	0% - 95%
Product Color	Black
Receptacle Detail	1 x Hardwired
Sound Emission (A-Weighted)	56 dB(A)
