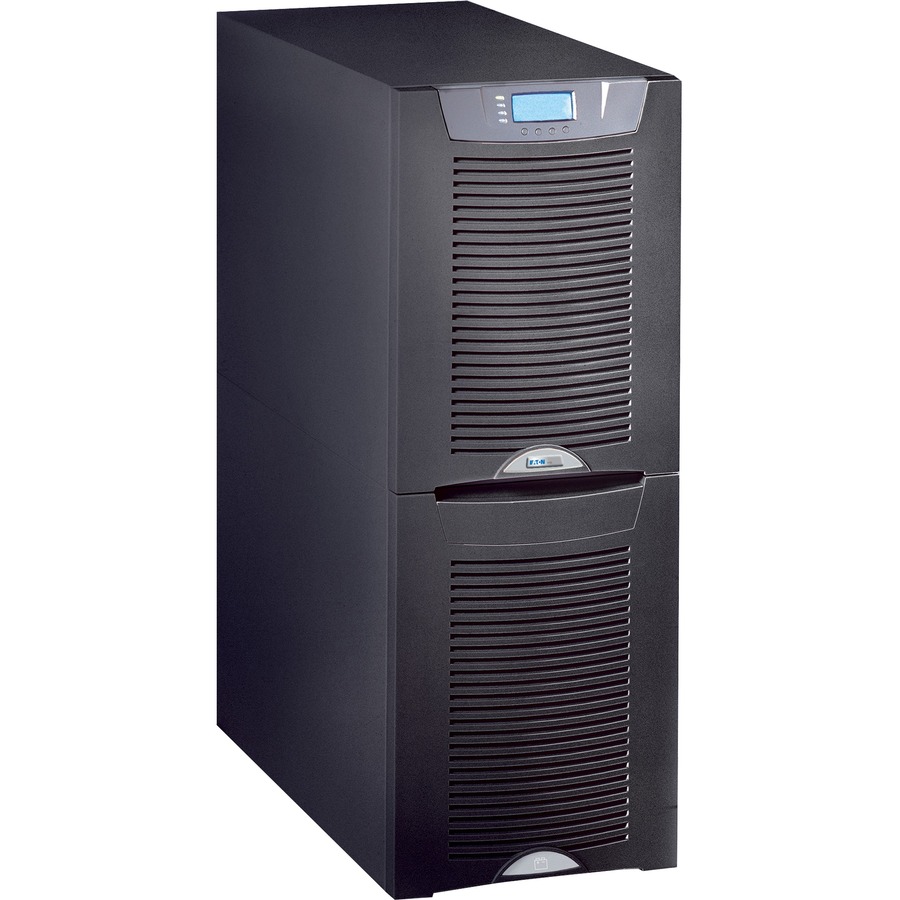

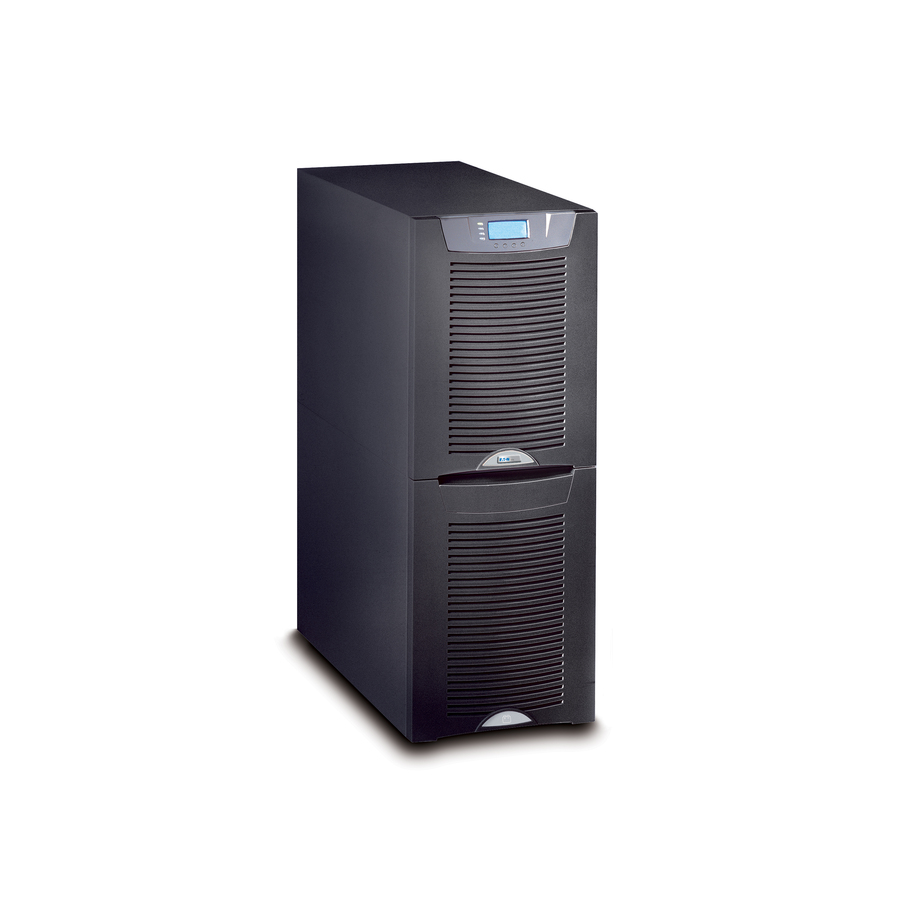

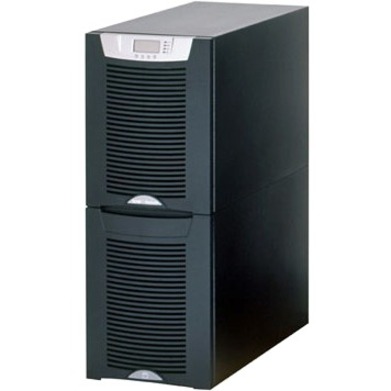

Eaton 9155 UPS Backup Power System
Tower - 18.60 Minute Stand-by - 220 V AC, 230 V AC, 240 V AC Input - 220 V AC, 230 V AC, 240 V AC Output - 8 x NEMA 5-20R, 4 x NEMA L14-20R - Serial Port
- SKU
- K4121203BBMM000
- Category
- Industrial UPS
MSRP$28,484.00
$19,297.21
Save 32%Back ordered — ships when restocked.
Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- K4121203BBMM000
- Category
- Industrial UPS
Overview
The Eaton 9155 UPS provides premium online backup power and scalable battery runtimes for IT and electrical engineering infrastructure in corporate, healthcare, banking and industrial applications. Packing maximum battery runtime into a very small footprint, the 9155 UPS is a complete power protection solution. The 9155 can be equipped with an integrated, customizable power distribution module that includes a maintenance bypass switch.
About Eaton
We're dedicated to improving people's lives and the environment with power management technologies that are more reliable, efficient, safe and sustainable. Every day, all around the world, people depend on technology, transportation, energy and infrastructure to live and work. With rapid growth in electrification, an energy transition driven by climate change and explosive growth in connectivity, we’re well positioned to solve the world’s toughest electrical and mechanical power management challenges. Because that’s what really matters. And we’re here to make sure it works.
Specifications
| Battery Chemistry | Lead Acid |
|---|---|
| Product Type | Double Conversion Online UPS |
| Input Voltage | 220 V AC, 230 V AC, 240 V AC |
| Manufacturer Part Number | K4121203BBMM000 |
| Output Voltage | 220 V AC, 230 V AC, 240 V AC |
| Weight (Approximate) | 590 lb |
| Form Factor | Tower |
| Manufacturer | Eaton Corporation |
| Product Model | 9155 |
| Product Name | 9155 UPS Backup Power System |
| Network Management | SNMP Manageable |
| Overload Protection | Yes |
| Protection Type | Surge |
| Brand Name | Eaton |
| Plug/Connector Type | Hardwired |
| Output Frequency | 60 Hz |
| Country of Origin | United States |
| Height | 47.8" |
| Width | 12" |
| Depth | 33.7" |
| Input Frequency | 65 Hz |
| Receptacle Type | NEMA 5-20R, NEMA L14-20R |
| Serial Port | Yes |
| Number of Batteries | 32 |
| Backup/Run Time (Full Load) | 18.60 Minute |
| Battery Characteristics | Maintenance-free/Sealed |
| Load Capacity (VA) | 12 kVA |
| Product Color | Black |
| Receptacle Detail | 8 x NEMA 5-20R, 4 x NEMA L14-20R |
