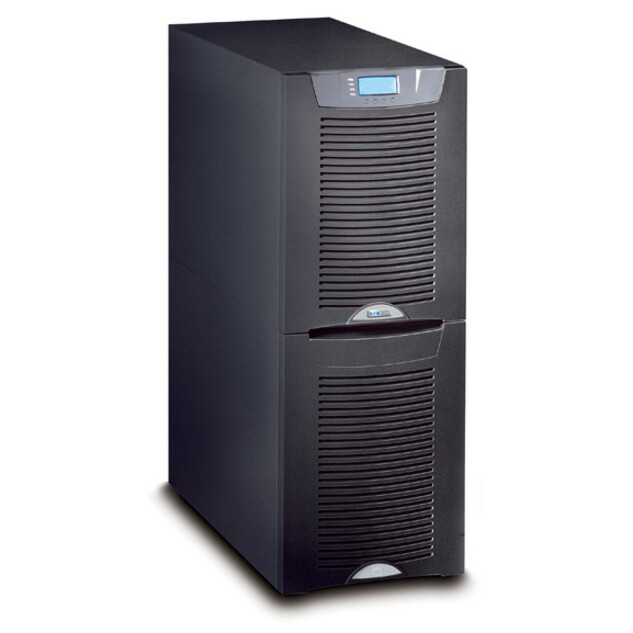

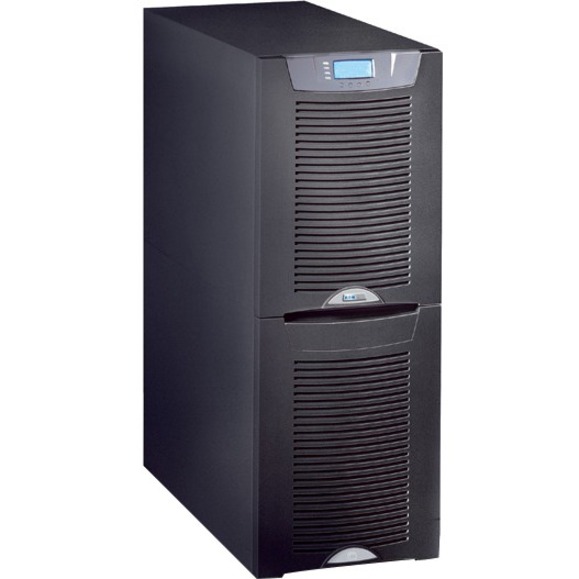

Eaton 9155 10kVA Tower UPS
Tower - 22.60 Minute Stand-by - 230 V AC Input - 100 V AC, 110 V AC, 120 V AC, 127 V AC, 200 V AC, 208 V AC, 220 V AC, 240 V AC Output
- SKU
- K41012030000000
- Category
- Industrial UPS
MSRP$25,234.00
$17,099.42
Save 32%Back ordered — ships when restocked.
Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- K41012030000000
- Category
- Industrial UPS
Overview
Reliability and efficiency have never looked so attractive. The 9155 single-phase Uninterruptible Power System (UPS) delivers a combination of advanced technology, user-friendly design and low price that's absolutely unmatched by competing products. This innovative design offers high efficiency (90 percent or better across all load ranges), low input current distortion (less than 5 percent total harmonic
distortion, with an active IGBT rectifier that delivers 0.99 power factor correction) and high power factor output (0.9 PF).
With advances being made in miniaturization and processing power and more equipment being served by dual-cord power supplies, the challenge of protecting that power, and doing so in a limited space, grows ever greater.
Fortunately, advances in technology have also meant that more power protection per square foot can now be provided. The 9155 delivers premium levels of efficiency, reliability and flexibility, all in a sleek tower half the size of most other units on the market today.
Warranty
Limited Warranty: 2 Year
About Eaton
We're dedicated to improving people's lives and the environment with power management technologies that are more reliable, efficient, safe and sustainable. Every day, all around the world, people depend on technology, transportation, energy and infrastructure to live and work. With rapid growth in electrification, an energy transition driven by climate change and explosive growth in connectivity, we’re well positioned to solve the world’s toughest electrical and mechanical power management challenges. Because that’s what really matters. And we’re here to make sure it works.
Highlights
- A true online, double-conversion topology protects connected equipment from all nine of the most common power problems
- Delivers maximum power density in a compact tower design: 12" wide and 33" deep, including batteries
- Provides more real power in less space (5,500 watts per square foot) with a 0.9 output power factor - protecting more equipment for every utility dollar and leaving more room for expansion of the data center
- Patented Powerware Hot Sync ® paralleling of multiple modules delivers extra capacity or redundancy
- Customizable output distribution provides user-specified power outlets along with terminals for connecting hard-wired equipment
- Microprocessor-controlled ABM ® technology significantly increases battery life
- Provides a 0.99 input power factor and generator friendly <5% total harmonic distortion using an active IGBT rectifier to control the input power factor
- Ensures data and system integrity with complete power management software for remote monitoring, management and shutdown
- An Eaton factory limited warranty, technical support and optional service plans provide investment protection and peace of mind
Specifications
| Product Type | Double Conversion Online UPS |
|---|---|
| Input Voltage | 230 V AC |
| Manufacturer Part Number | K41012030000000 |
| Limited Warranty | 2 Year |
| Output Voltage | 100 V AC, 110 V AC, 120 V AC, 127 V AC, 200 V AC, 208 V AC, 220 V AC, 240 V AC |
| Weight (Approximate) | 590 lb |
| Form Factor | Tower |
| Manufacturer | Eaton Corporation |
| Product Model | 9155 |
| Product Name | 9155 10kVA Tower UPS |
| Network Management | SNMP Manageable |
| Brand Name | Eaton |
| Plug/Connector Type | Hardwired |
| Height | 47.8" |
| Width | 12" |
| Depth | 33.7" |
| Receptacle Type | Hardwired |
| Backup/Run Time (Half Load) | 52.60 Minute |
| Backup/Run Time (Full Load) | 22.60 Minute |
| Load Capacity (VA) | 10000 VA |
