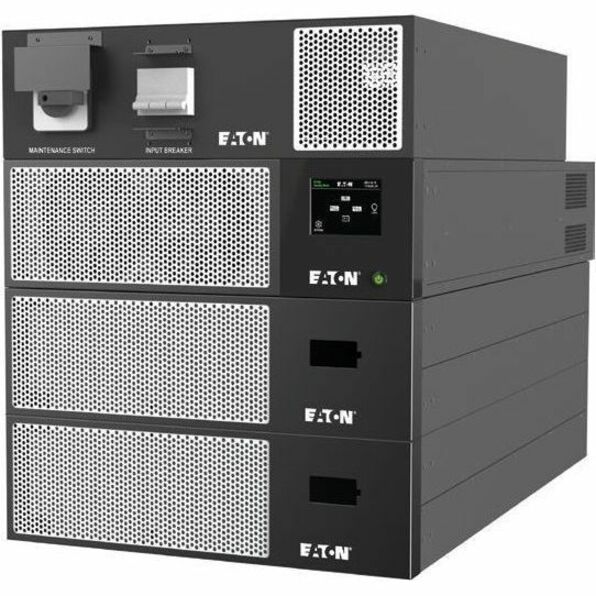

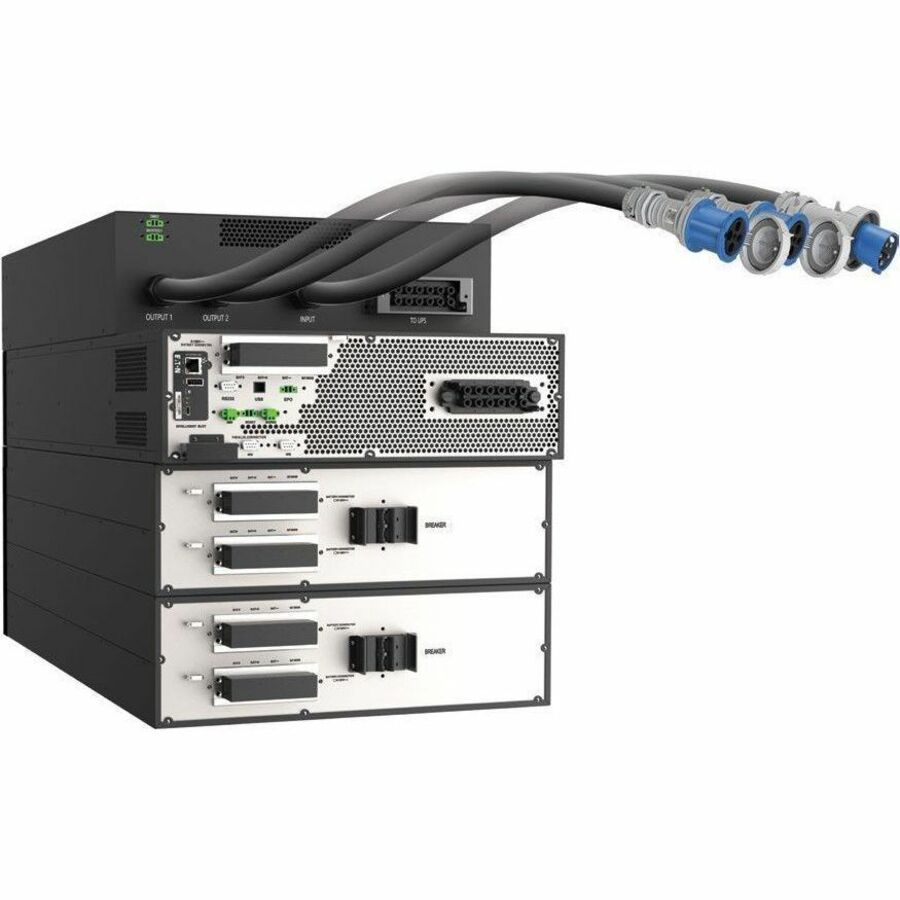

Eaton 20kW Parallel 208V 3-PH UPS with hardwired input and output and NETWORK-M3 cards
Eaton

Eaton 20kW Parallel 208V 3-PH UPS with hardwired input and output and NETWORK-M3 cards

21U Rack-mountable - 230 V AC, 120 V AC Input - 208 V AC, 120 V AC Output - Pure Sine Wave - Serial Port - USB - LCD Display - TAA Compliant

SKU
93PX20KHWPAR
Category
Industrial UPS

MSRP$40,822.00

$33,133.36

Save 19%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
93PX20KHWPAR
Category
Industrial UPS

Overview

The 93PX double-conversion online UPS 208V (5-20kW) and 400V (15kW / 20kW) offers simple, reliable, and cost-effective power for edge and data center environments. With plug-and-play deployment, high-efficiency, 1.0 power factor, advanced cybersecurity, and scalable redundancy, it ensures continuous protection, surge resistance, and auto-restart-ideal for critical applications requiring high performance and operational resilience.

Warranty

Limited Warranty: 2 Year

About Eaton

We're dedicated to improving people's lives and the environment with power management technologies that are more reliable, efficient, safe and sustainable. Every day, all around the world, people depend on technology, transportation, energy and infrastructure to live and work. With rapid growth in electrification, an energy transition driven by climate change and explosive growth in connectivity, we’re well positioned to solve the world’s toughest electrical and mechanical power management challenges. Because that’s what really matters. And we’re here to make sure it works. ​

Highlights

  • Innovative quick-connect design for easy plug-and-play deployment and service
  • Unity power factor (1.0) with 5, 7.5, 13, 15 or 20 kW capacity
  • High power density with up to 7.5 kW in 9U and up to 20 kW in 12U
  • Up to 92% energy efficiency (97% in ECO mode)
  • Network management cards with market-leading cybersecurity
  • Configurable in parallel for N+1 redundancy (13, 15 or 20 kW)
  • Auto-restart after extended utility outage
  • Online, double-conversion UPS
  • Backfeed and surge protection
  • TAA compliant

Specifications

Application/UsageData Center, IT Infrastructure, Switch, Server, Healthcare, Hospital, Medical, IT Rack, Mission Critical Equipment, Edge Computing, Network, Server Room, Network Closet
Battery ChemistryLead Acid
Package Contents
  • 2 x Power Module (PM)
  • 2 x Maintenance Bypass Panel (MBP)
  • 4 x Extended Battery Modules (EBMs)
  • 2 x NETWORK-M3
Product TypeDouble Conversion Online UPS
DisplayLCD
Efficiency97%
Input Voltage230 V AC, 120 V AC
Manufacturer Part Number93PX20KHWPAR
Limited Warranty2 Year
Output Voltage208 V AC, 120 V AC
Form FactorRack-mountable
ManufacturerEaton Corporation
Product Name93PX 20kW Rack-mountable UPS
Network ManagementRS-232, Network-M3 Card, INDGW-M3 Card
Protection TypeBackfeed, Surge
Waveform TypePure Sine Wave
Product Series93PX
Rack Height21U
Brand NameEaton
Plug/Connector TypeHardwired
Input Voltage Range121 V AC - 270 V AC, 53 V AC - 161 V AC
Output Frequency50 Hz, 60 Hz
Input Frequency50 Hz, 60 Hz
PhaseThree Phase
Receptacle TypeHard Wire 5-wire
Battery Capacity10000 mAh
USBYes
Maximum Operating Temperature104°F (40°C)
Serial PortYes
Battery CharacteristicsValve-regulated
Load Capacity (Watt)20 kW
TAA CompliantYes
DC System Voltage120 V DC
EPO PortYes
Maximum Operating Elevation3280 ft
Storage Temperature5°F (-15°C) - 140°F (60°C)
Crest Factor3:1
Output Power Factor1
Number of External Battery Cabinets4
Backup/Run Time With External Battery Cabinet (Full Load)13 Minute
Backup/Run Time With External Battery Cabinet (Half Load)32 Minute
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
