Advantech 43" F-HD Digital Signage & Touch Monitor
43" LCD - Touchscreen - 24 Hours/7 Days Operation - 1920 x 1080 - 8 ms - LED - 500 Nit - 1080p - HDMI - USB - Serial
- SKU
- DSD-3043T-50FHA1
- Category
- Digital Signage Systems
$2,160.50
Back ordered — ships when restocked.
Genuine Advantech through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- DSD-3043T-50FHA1
- Category
- Digital Signage Systems
Overview
The Advantech DSD-3043 series comes with a 43" 500 cd/m2 industrial grade digital signage monitor. The series is also available with flexible optional stand base & optical touch. DSD-3043 series supports 4000:1 high contrast ratio with low power consumption at the maximum consumption of 80W. DSD-3043 provides superior performance for semi-outdoor or indoor applications.
Highlights
- 43" LCD supports FHD resolution 1920 x 1080
- High brightness of 500 cd/m2
- Backlight: LED
- High contrast ratio of 4000:1
- Low power consumption 80 W
- Quick response time 8 ms
- Wide viewing angle 178 / 178 degrees
- Speaker: 10W x 2
- Backlight life time: 50,000 hrs
- Display colors: 16.7 M colors
- Optional Touch: Optical touch, multi-touch
- Support 24/7 working
Specifications
| Application/Usage | Indoor |
|---|---|
| Package Contents |
|
| Product Type | Digital Signage Display |
| Input Voltage | 120 V AC, 230 V AC |
| Manufacturer Part Number | DSD-3043T-50FHA1 |
| Display Resolution | 1920 x 1080 |
| Response Time | 8 ms |
| Weight (Approximate) | 63.93 lb |
| Brightness | 500 Nit |
| Manufacturer | Advantech Co., Ltd |
| Product Model | DSD-3043T-50FHA1 |
| Product Name | 43" F-HD Digital Signage & Touch Monitor |
| Product Series | DSD-3043 |
| Viewable Screen Size | 43" |
| Brand Name | Advantech |
| Height | 24.3" |
| Width | 39.8" |
| Depth | 3.2" |
| Number of Screens | 1 |
| Scan Format | 1080p |
| Touchscreen | Yes |
| Display Screen Type | LCD |
| USB | Yes |
| HDMI | Yes |
| Backlight Technology | LED |
| VESA Mount Standard | 400 x 200 |
| Native Contrast Ratio | 4,000:1 |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 122°F (50°C) |
| Minimum Storage Temperature | -4°F (-20°C) |
| Maximum Storage Temperature | 140°F (60°C) |
| DisplayPort | Yes |
| Serial | Yes |
| Multi-touch Screen | Yes |
| Indoor/Outdoor | Outdoor, Indoor |
| Screen Size Class | 43" |
| On Screen Display (OSD) Languages | Simplified Chinese, Traditional Chinese, English, Japanese, French, German, Spanish |
| Operation Hours | 24 Hours/7 Days |
More Digital Signage Systems from Advantech

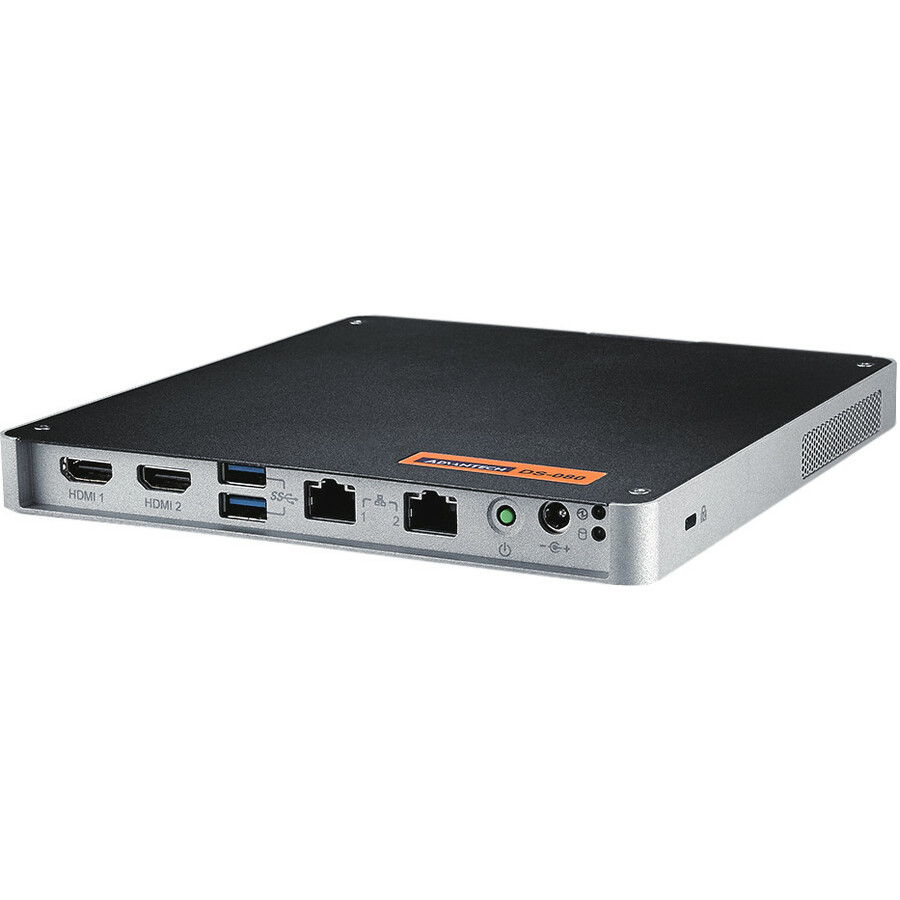

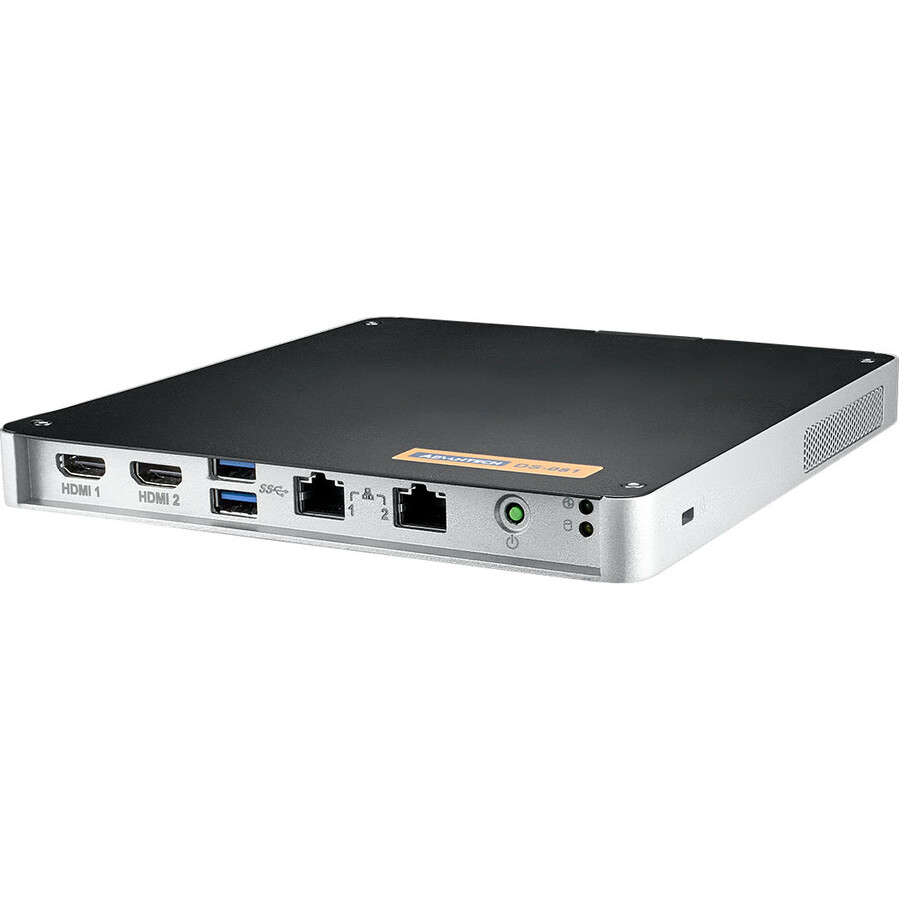

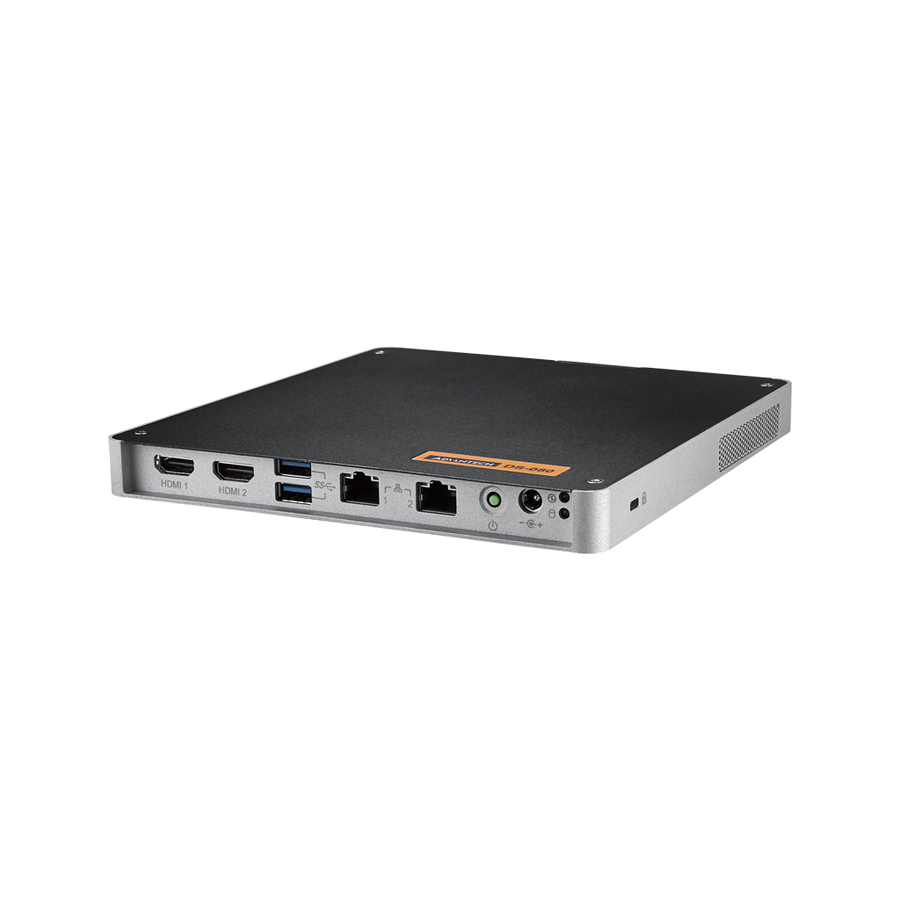

View the Advantech catalog →- AdvantechAdvantech 6th Gen. Intel Core i3/i5 Ultra-slim Fanless Digital Signage Player - Core i5 - HDMI - USB - SerialEthernetDS-081GB-U4A1E
