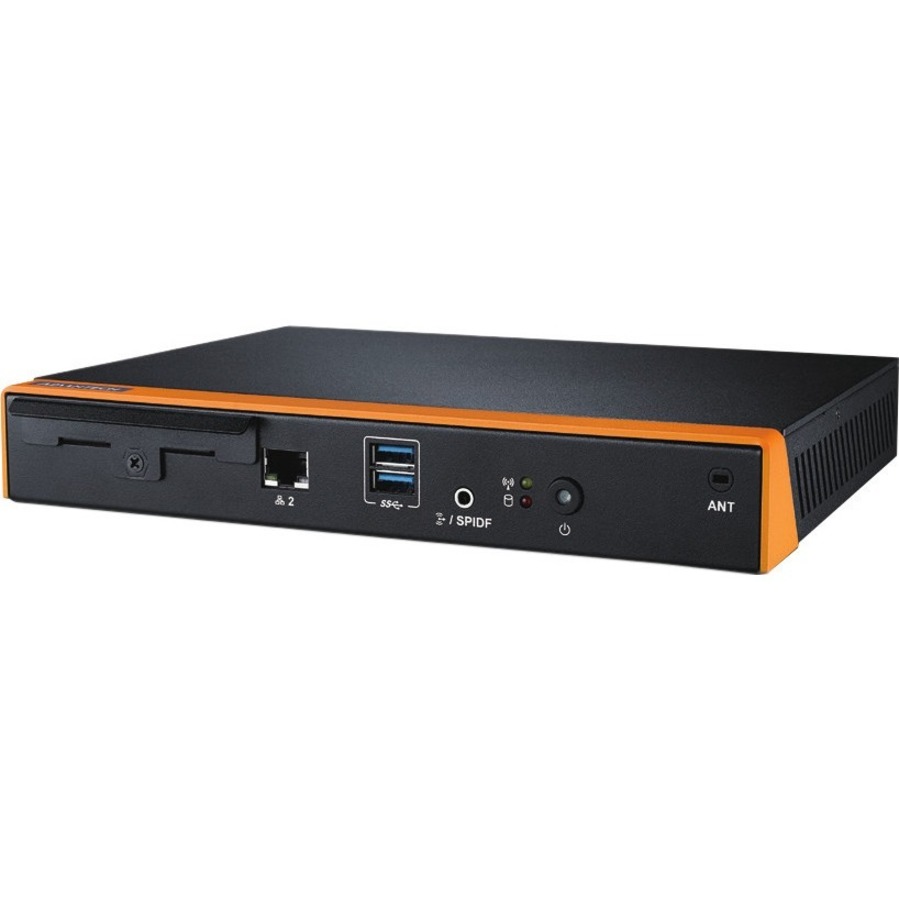

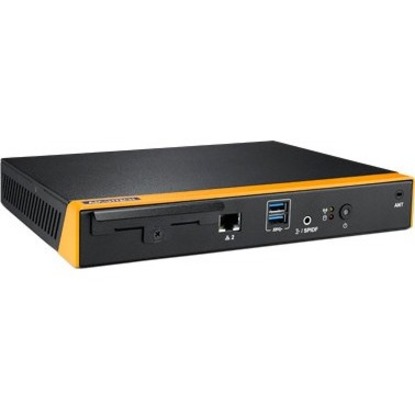

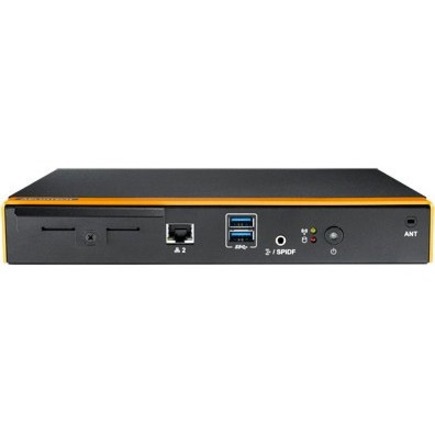

Advantech DS-780GB-U6A1E Digital Signage Appliance
Advantech

Advantech DS-780GB-U6A1E Digital Signage Appliance

Core i7 - HDMI - USB - SerialEthernet

SKU
DS-780GB-U6A1E
Category
Digital Signage Systems

Request pricing

Confirmed with stock and TAA status before any payment.

Request a quote

Genuine Advantech through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
DS-780GB-U6A1E
Category
Digital Signage Systems

Overview

Advantech DS-780 is high performance computing, low power for advanced Digital Signage Player.It powered by 6th generation Intel® Core? U series processor and designed with fanless solution. DS-780 supports 4K resolution by HDMI outputs. The storage of DS-780 can be easily maintain via its slide-in chassis design.As a high performance and fanless solution, DS-780 is ideal for single single to triple display applications in stores, lobbies, restaurants, FIDS, hotels and other display public space.

Highlights

  • Supports 4K/Ultra HD resolution and HEVC video decoding
  • Integrated with Dual channel DDR4 2133 SO-DIMM
  • Flexibility for expansion (Mini PCIe and M.2 2230/1630 E Key) and storage devices (2.5" SATA III HDD/SSD,m-SATA)
  • Supports 3 x HDMI, 4 x USB 3.0, 2 x RJ45, 1 x RS-232, 1 x SPDIF-out/Line-out/Mic-in
  • Content management software built-in for content editing, scheduling and remote monitoring functions

Specifications

Package Contents
  • DS-780GB-U6A1E Digital Signage Appliance
  • 1 x Power Adapter
  • 1 x Bracket set for fixing power adapter plug
  • 2 x Mounting Brackets
  • 1 x User Manual
  • 1 x Content Management Software
  • 4 x Foot rubers and screws
Product TypeDigital Signage Appliance
Input Voltage19 V DC
Manufacturer Part NumberDS-780GB-U6A1E
Packaged Quantity1
Limited Warranty3 Year
Weight (Approximate)3.31 lb
ManufacturerAdvantech Co., Ltd
Product ModelDS-780GB-U6A1E
Product NameDS-780GB-U6A1E Digital Signage Appliance
Processor TypeCore i7
Product SeriesDS-780
Brand NameAdvantech
Country of OriginChina
Height1.4"
Width9.3"
Depth6.9"
Environmentally FriendlyYes
EthernetYes
USBYes
HDMIYes
Number of HDMI Outputs3
Number of USB 2.0 Ports0
Number of USB 3.0 Ports4
SerialYes
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
