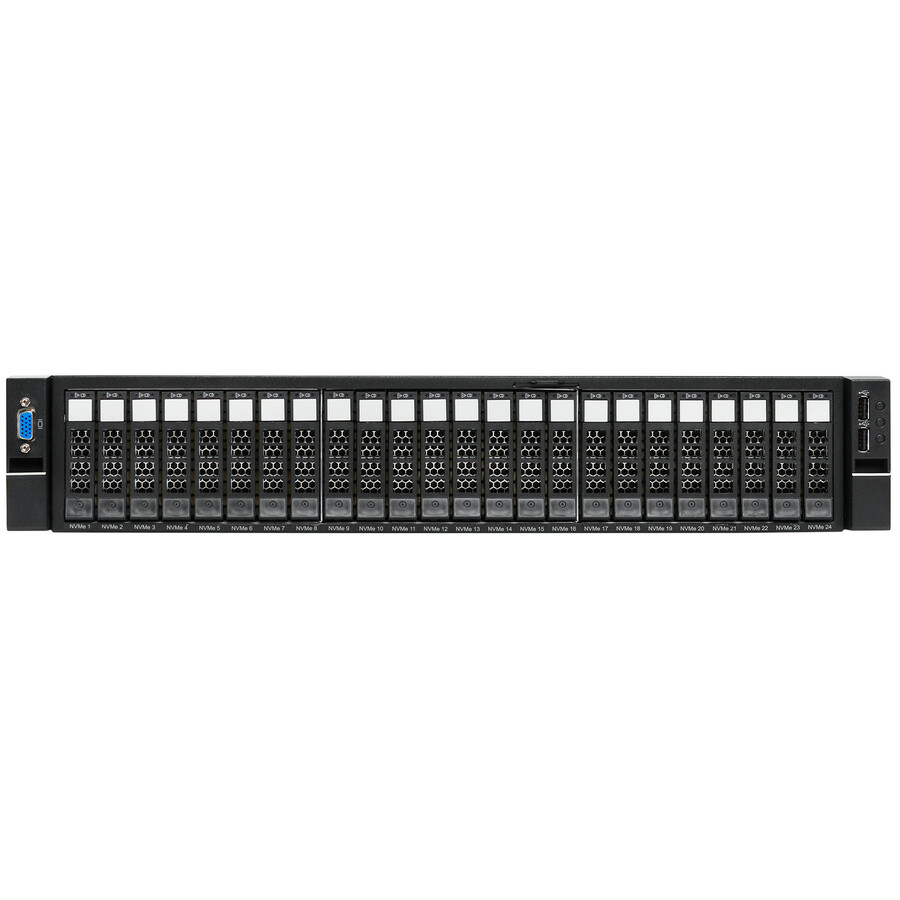

HGST Ultrastar Serv24-HA NVMe Storage Server
2 Xeon Gold 6140 Octadeca-core (18 Core) 2.30 GHz - 24 x SSD Supported - 184 TB Supported SSD Capacity - 12 x SSD Installed - 23.04 TB Total Installed SSD Capacity - 256 GB RAM DDR4 SDRAM - NVMe Controller - 24 x Total Bays - 24 x 2.5" Bay - 3 x Total Slot(s) - 10 Gigabit Ethernet - VGA - 2 USB Port(s) - 2 USB 3.0 Port(s) - Network (RJ-45) - IPMI 2.0 - 2U - Rack-mountable
- SKU
- 1ES1038
- Category
- Storage Arrays & Servers
$45,177.26
Back ordered — ships when restocked.
Genuine Western Digital through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- 1ES1038
- Category
- Storage Arrays & Servers
Overview
Designed for Demanding Software-Defined Storage Environments
Fast, efficient storage is what fuels data-intensive applications. The Ultrastar Serv24-HA storage server combines NVMe? SSD speed with dual-server architecture to deliver a performance-driven "cluster-in-a-box" system. Featuring the latest Intel® Xeon® CPUs, core count and power can be selected to optimally balance data workload and data center efficiency requirements.
Newly available dual-port NVMe SSD technology means that all-flash array deployments can benefit from high availability and NVMe performance. The Ultrastar Serv24-HA is designed to deliver that high availability and enterprise-class reliability. The entire enclosure, including server canisters, is backed with a 5-year limited warranty.
NVMe "Cluster-in-a-box" for Software-Defined Storage
High Performance
Dual-port NVMe SSDs with a range of capacity and endurance options
High Availability
Dual, 2 socket, high-performance Intel Xeon scalable processor server canisters with failover interconnect
Highlights
- NAS Storage System is the single answer to all your desired storage needs
- DDR4 SDRAM memory technology for fast, easy, and convenient access and retrieval of data and information
- 184 TB total solid state drive capacity support keeps your running programs active while your computer resumes from suspension in seconds
- Xeon Gold processor offers maximum productivity in a timely efficient manner
- Rack-mountable nas storage system allows maximum space utilization with easy and convenient access and retrieval of the data
- Optimize business network's performance with 10 Gigabit Ethernet connectivity
Specifications
| Product Type | NAS Storage System |
|---|---|
| Manufacturer Part Number | 1ES1038 |
| Protocols | IPMI 2.0 |
| Standard Memory | 256 GB |
| Form Factor | Rack-mountable |
| Manufacturer | Western Digital Corporation |
| Product Model | SS2U24HAPUR-1014 |
| Product Name | Ultrastar Serv24-HA NVMe Storage Server |
| Processor Speed | 2.30 GHz |
| Processor Type | Xeon Gold |
| Product Line | Ultrastar Serv24-HA |
| Controller Type | NVMe |
| Rack Height | 2U |
| Brand Name | HGST |
| Expansion Slot Type | PCI Express 3.0 x16 |
| Memory Technology | DDR4 SDRAM |
| Processor Model | 6140 |
| Height | 3.4" |
| Width | 17.6" |
| Depth | 32.9" |
| Processor Core | Octadeca-core (18 Core) |
| Number of Power Supplies Installed | 2 |
| Redundant Power Supply | Yes |
| Number of Processors Installed | 2 |
| Ethernet Technology | 10 Gigabit Ethernet |
| Number of Total Expansion Bays | 24 |
| VGA | Yes |
| Network (RJ-45) | Yes |
| Maximum Power Supply Wattage | 1800 W |
| Total Number of USB Ports | 2 |
| Number of USB 3.0 Ports | 2 |
| Total Solid State Drive Capacity Supported | 184 TB |
| Total Solid State Drive Capacity Installed | 23.04 TB |
| Number of Solid State Drive Supported | 24 |
| Number of Solid State Drive Installed | 12 |
| Number of 2.5" Bays | 24 |
| Drive Interface | PCI Express 3.0 x16 |
| Total Number of Expansion Slots | 3 |
