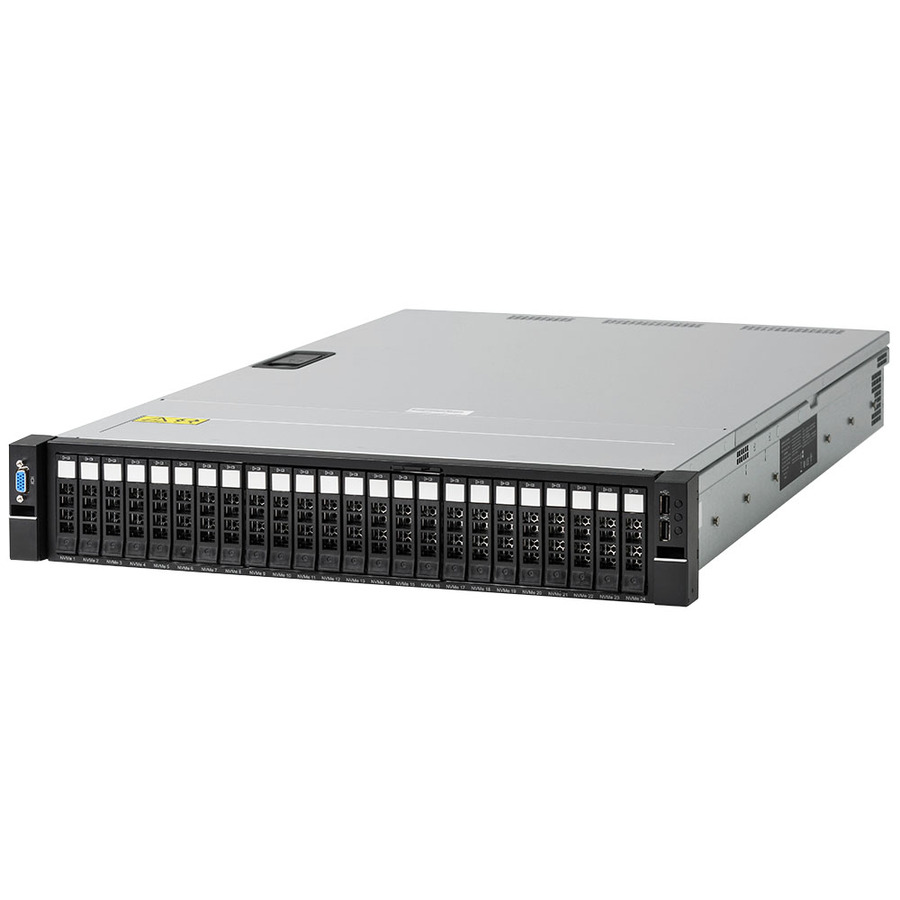

HGST Ultrastar Serv24 NVMe Storage Server
Intel Xeon Platinum 8160 Tetracosa-core (24 Core) 2.10 GHz - 24 x SSD Supported - 184 TB Supported SSD Capacity - 24 x SSD Installed - 38.40 TB Total Installed SSD Capacity - 2 Boot Drive(s) - 256 GB RAM DDR4 SDRAM - NVMe Controller - 24 x Total Bays - 3 x Total Slot(s) - 10 Gigabit Ethernet - VGA - 2 USB Port(s) - 2 USB 3.0 Port(s) - Network (RJ-45) - IPMI 2.0 - 2U - Rack-mountable
- SKU
- 1ES1025
- Category
- Storage Arrays & Servers
$40,225.68
Back ordered — ships when restocked.
Genuine Western Digital through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- 1ES1025
- Category
- Storage Arrays & Servers
Overview
The Storage Server Platform for Software-Defined Storage
There is a never-ending need to increase data center performance for storageintensive applications. To fully realize the benefits of a software-defined storage (SDS) infrastructure, purpose-built storage platforms have become the preferred building blocks for many enterprise data centers.
The Ultrastar Serv24 is designed to be a performance-optimized platform for SDS. By integrating CPUs and NVMe? SSDs in the same unit, our storage server provides a tested and validated building block for deploying the SDS stack on high-performance storage.
Designed for Fast Data
Flash technology has revolutionized the performance of storage systems; NVMe technology extends flash storage to its full potential. Built upon our storage expertise, the Ultrastar Serv24 features the latest Intel® Xeon® CPUs. Chipset, core count and power can be customized, providing the flexibility to meet varying requirements depending on data workload and performance requirements.
Whether as a stand-alone file server or part of a scale-out deployment, the Ultrastar Serv24 is built to deliver screaming performance in software-defined storage environments. With low latency and consistently high bandwidth, data is accelerated to the speed of flash.
Designed Enterprise and Cloud Data Centers
The Ultrastar Serv24 is designed to elevate flash performance in demanding, software-defined storage environments.
Highlights
- Up to 184TB in a 2U unit

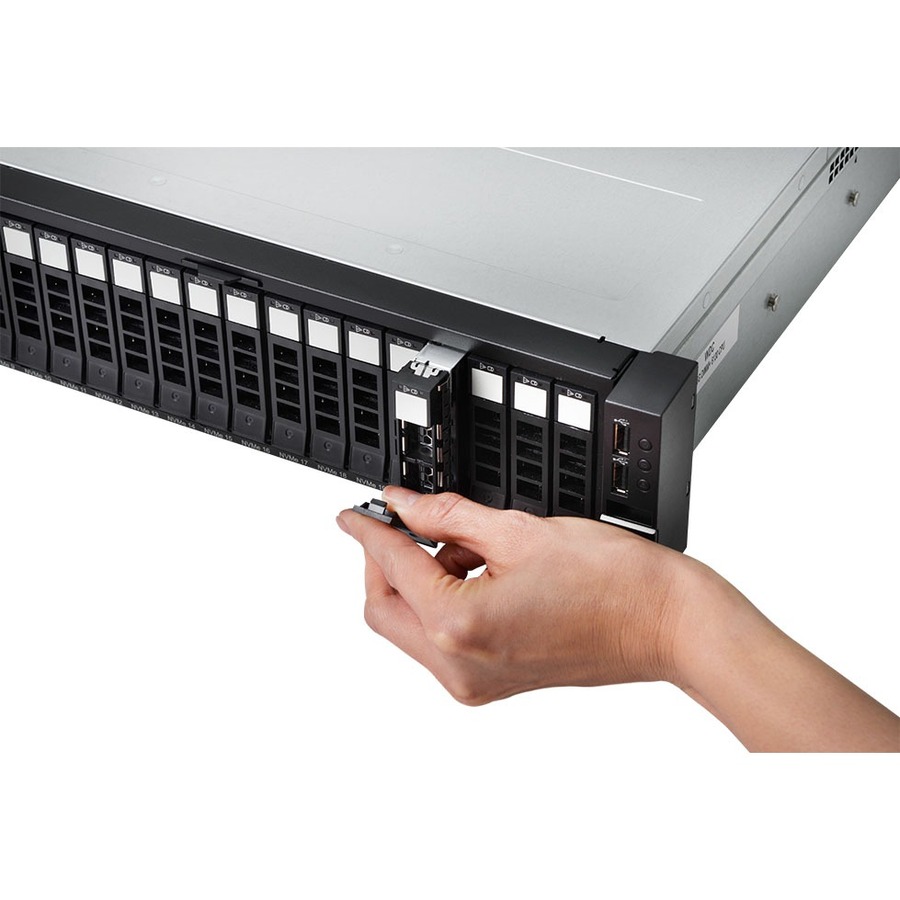

- Up to 24 NVMe SSDs with a range of capacities and endurance options
- High-performance Intel® "Purley"-based server with a choice of CPUs
- 2 512GB SSD boot drives
- 256GB DDR4 DRAM
- 2-port 10GbE included
- 1-port 1GbE for system management
- 2 PCIe x16 slots available for add-in cards

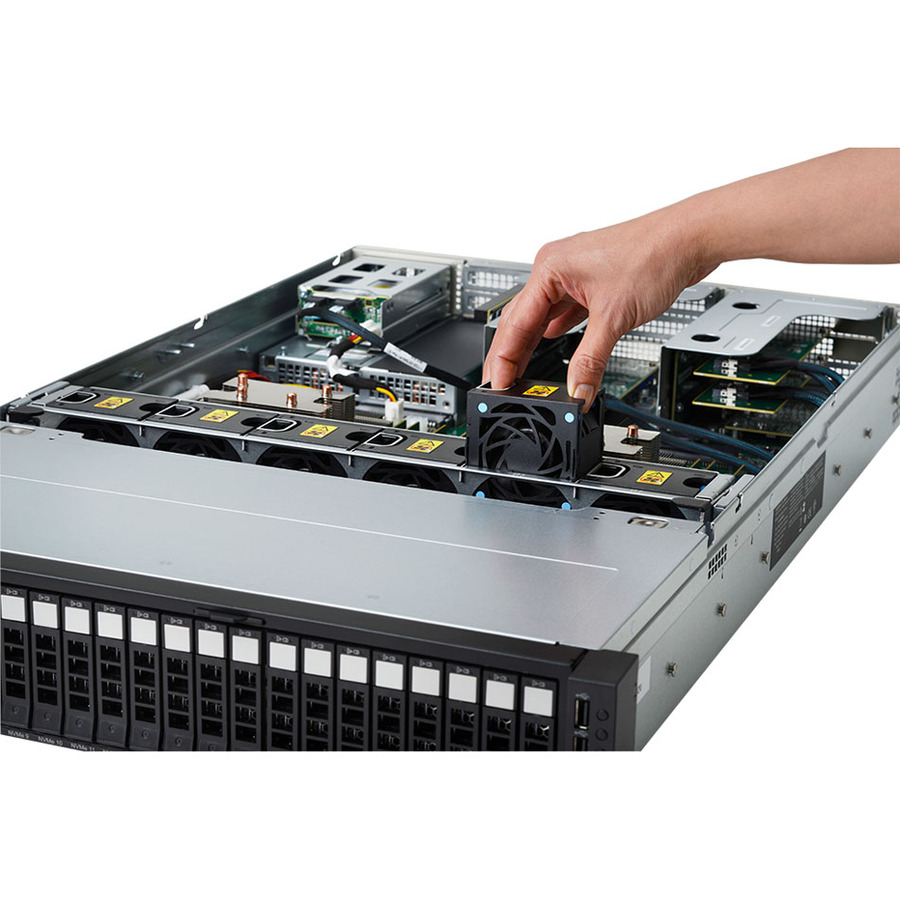

- Enterprise-grade redundant and hot-swappable PSUs and fans
Specifications
| Product Type | NAS Storage System |
|---|---|
| Manufacturer Part Number | 1ES1025 |
| Protocols | IPMI 2.0 |
| Limited Warranty | 5 Year |
| Standard Memory | 256 GB |
| Weight (Approximate) | 54.90 lb |
| Form Factor | Rack-mountable |
| Manufacturer | Western Digital Corporation |
| Product Model | SS2U24PUR-1021 |
| Product Name | Ultrastar Serv24 NVMe Storage Server |
| Processor Speed | 2.10 GHz |
| Processor Type | Xeon Platinum |
| Product Line | Ultrastar Serv24 |
| Controller Type | NVMe |
| Rack Height | 2U |
| Brand Name | HGST |
| Expansion Slot Type | PCI Express 3.0 x16, PCI Express 3.0 x8 |
| Memory Technology | DDR4 SDRAM |
| Processor Model | 8160 |
| Height | 3.4" |
| Width | 17.6" |
| Depth | 29.9" |
| Processor Core | Tetracosa-core (24 Core) |
| Processor Manufacturer | Intel |
| Number of Power Supplies Installed | 2 |
| Redundant Power Supply | Yes |
| Ethernet Technology | 10 Gigabit Ethernet |
| Number of Total Expansion Bays | 24 |
| VGA | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Network (RJ-45) | Yes |
| Maximum Power Supply Wattage | 1200 W |
| Total Number of USB Ports | 2 |
| Number of USB 3.0 Ports | 2 |
| Total Solid State Drive Capacity Supported | 184 TB |
| Total Solid State Drive Capacity Installed | 38.40 TB |
| Number of Solid State Drive Supported | 24 |
| Number of Solid State Drive Installed | 24 |
| Drive Interface | PCI Express |
| Total Number of Expansion Slots | 3 |
| Number of Boot Drives | 2 |
