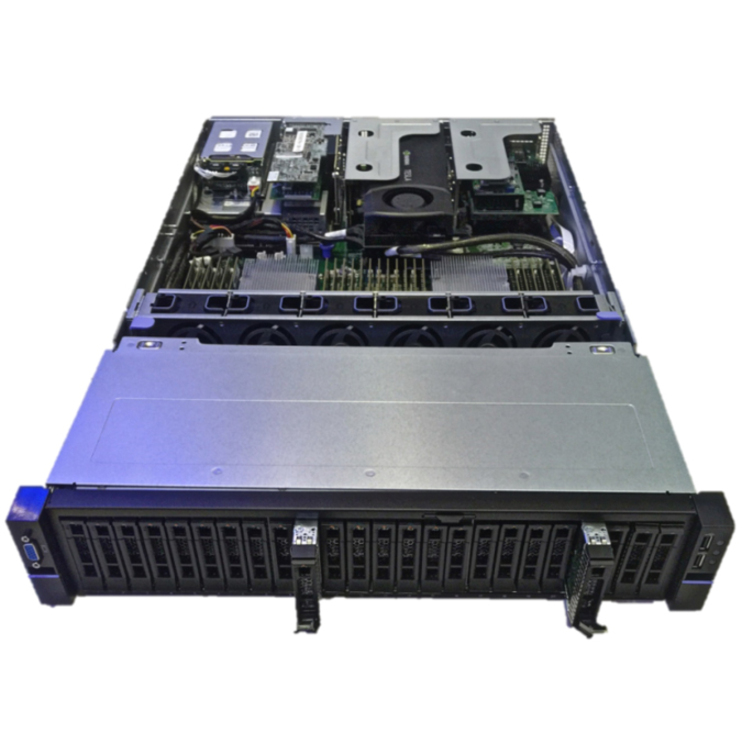

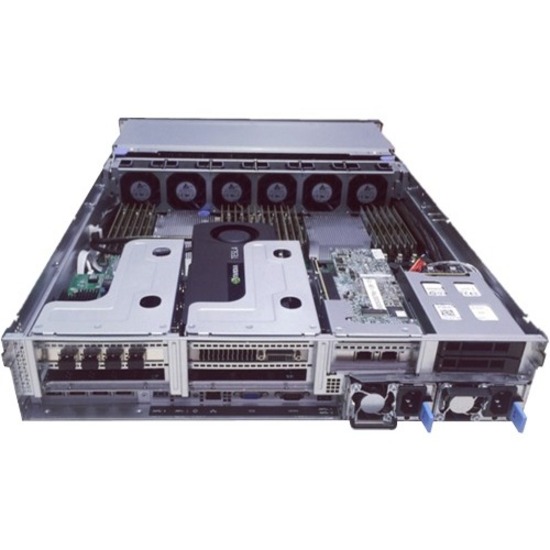

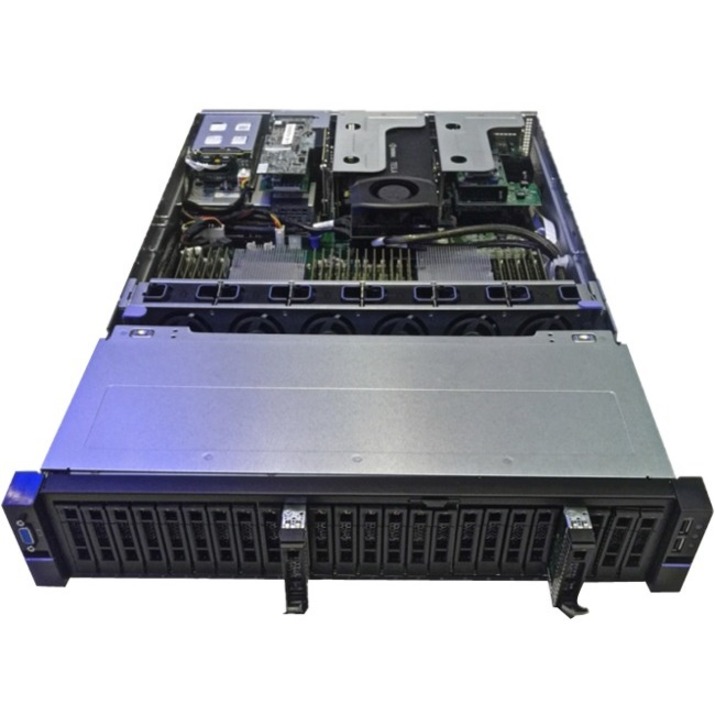

HGST Ultrastar Serv24 SS2U24PUR-1007 NAS Storage System
Xeon Gold 5120 Tetradeca-core (14 Core) 2.20 GHz - 24 x SSD Supported - 184 TB Supported SSD Capacity - 24 x SSD Installed - 38.40 TB Total Installed SSD Capacity - 2 Boot Drive(s) - 256 GB RAM DDR4 SDRAM - 24 x Total Bays - 24 x 2.5" Bay - 3 x Total Slot(s) - 10 Gigabit Ethernet - VGA - 2 USB Port(s) - 2 USB 3.0 Port(s) - Network (RJ-45) - IPMI 2.0 - 2U - Rack-mountable
- SKU
- 1ES1008
- Category
- Storage Arrays & Servers
$29,013.89
Back ordered — ships when restocked.
Genuine Western Digital through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- 1ES1008
- Category
- Storage Arrays & Servers
Overview
There is a never-ending need to increase data center performance for storage-intensive applications. The Ultrastar® Serv24 is designed to be a performance-optimized platform for software defined storage (SDS). By integrating CPUs and NVMe? SSDs in the same unit, our storage server provides a tested and validated building block for deploying the SDS stack on high-performance storage.
Designed for Fast Data
Flash technology has revolutionized the performance of storage systems; NVMe technology extends flash storage to its full potential. Built upon our storage expertise, the Ultrastar Serv24 features the latest Intel® Xeon® CPUs. Chipset, core count and CPU power can be customized, providing the flexibility to meet varying requirements depending on data workload and performance requirements. Whether as a stand-alone file server or part of a scale-out deployment, the Ultrastar Serv24 is built to deliver screaming performance in software-defined storage environments. With low latency and consistently high bandwidth, data is accelerated to the speed of flash.
Highlights
- NAS Storage System offers maximum storage efficiency and convenience
- DDR4 SDRAM memory technology for fast, easy, and convenient access and retrieval of data and information
- 184 TB total solid state drive capacity support keeps your running programs active while your computer resumes from suspension in seconds
- Xeon Gold processor offers maximum productivity in a timely efficient manner
- Rack-mountable nas storage system allows maximum space utilization with easy and convenient access and retrieval of the data
- Optimize business network's performance with 10 Gigabit Ethernet connectivity
Specifications
| Product Type | NAS Storage System |
|---|---|
| Manufacturer Part Number | 1ES1008 |
| Protocols | IPMI 2.0 |
| Standard Memory | 256 GB |
| Weight (Approximate) | 54.90 lb |
| Form Factor | Rack-mountable |
| Manufacturer | Western Digital Corporation |
| Product Model | SS2U24PUR-1007 |
| Product Name | Ultrastar Serv24 SS2U24PUR-1007 NAS Storage System |
| Processor Speed | 2.20 GHz |
| Processor Type | Xeon Gold |
| Product Line | Ultrastar Serv24 |
| Rack Height | 2U |
| Brand Name | HGST |
| Expansion Slot Type | PCI Express 3.0 x16, PCI Express 3.0 x8 |
| Memory Technology | DDR4 SDRAM |
| Processor Model | 5120 |
| Height | 3.4" |
| Width | 17.6" |
| Depth | 29.9" |
| Processor Core | Tetradeca-core (14 Core) |
| Ethernet Technology | 10 Gigabit Ethernet |
| Number of Total Expansion Bays | 24 |
| VGA | Yes |
| Network (RJ-45) | Yes |
| Maximum Power Supply Wattage | 1200 W |
| Total Number of USB Ports | 2 |
| Number of USB 3.0 Ports | 2 |
| Total Solid State Drive Capacity Supported | 184 TB |
| Total Solid State Drive Capacity Installed | 38.40 TB |
| Number of Solid State Drive Supported | 24 |
| Number of Solid State Drive Installed | 24 |
| Number of 2.5" Bays | 24 |
| Drive Interface | PCI Express |
| Total Number of Expansion Slots | 3 |
| Number of Boot Drives | 2 |
