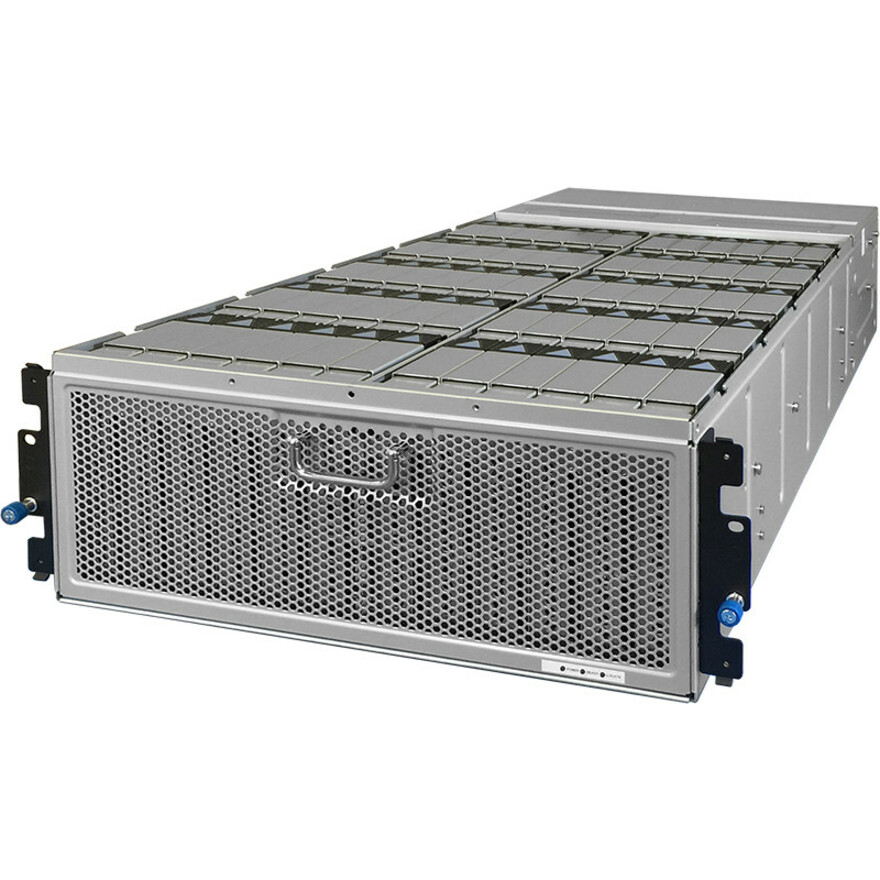

HGST Drive Enclosure - 12Gb/s SAS Host Interface - 4U Rack-mountable
60 x HDD Supported - 60 x Total Bay - 60 x 3.5" Bay
- SKU
- 1ES0121
- Category
- Drive Cabinets
$30,829.48
Back ordered — ships when restocked.
Genuine Western Digital through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- 1ES0121
- Category
- Drive Cabinets
Overview
When data centers need storage expansion that delivers low power and high capacity with high-availability, they rely on the HGST 4U60 Storage Enclosure. This high-density, scalable, and cost-effective design Includes up to 60 Ultrastar® 3.5-inch drive modules in a 4U enclosure and offers 2x2x4-lane SAS 12Gb/s performance, high availability (HA), and hot-swappable components. Optimized to provide a dense solution with HA capabilities, while maintaining a low power profile, you can trust the 4U60 Storage Enclosure to deliver the value you need for your data center.
Highlights
- Up to 60 integrated Ultrastar® drive modules
- Available with 512e or 4Kn sector size (by part number)
- Available option to configure up to 8 Ultrastar SSDs to create separate performance tiers within the enclosure
- Available with SAS drives for HA applications or with SATA drives for cost-optimized applications
- Host connectivity 2 x SAS QSFP+ receptacles per IO Module; optional connectivity cables are available
- QSFP+ to HD mini SAS cables for host
- QSFP+ to QSFP+ cables for daisy-chaining*
- Hot Swappable: two power supplies (with integrated fans), drive modules, and IO modules
- Fully compliant with SAS 3.0 specification for operation up to 12Gbps
- Optional cable management arm eliminates tangled cables during servicing of hot-swappable CRUs
Specifications
| Host Interface | 12Gb/s SAS |
|---|---|
| Product Type | Drive Enclosure |
| Manufacturer Part Number | 1ES0121 |
| Limited Warranty | 5 Year |
| Weight (Approximate) | 198 lb |
| Form Factor | Rack-mountable |
| Manufacturer | Western Digital Corporation |
| Product Name | 4U60 Storage Enclosure |
| Rack Height | 4U |
| Brand Name | HGST |
| Height | 6.9" |
| Width | 16.7" |
| Depth | 38.7" |
| Wireless LAN | No |
| Number of Total Expansion Bays | 60 |
| Number of 3.5" Bays | 60 |
| Total Hard Drive Capacity Installed | 480 TB |
| Number of Hard Drives Supported | 60 |
| Number of Hard Drives Installed | 60 |
| Cooling Fan | Yes |
| Non-RAID Mode | JBOD |
