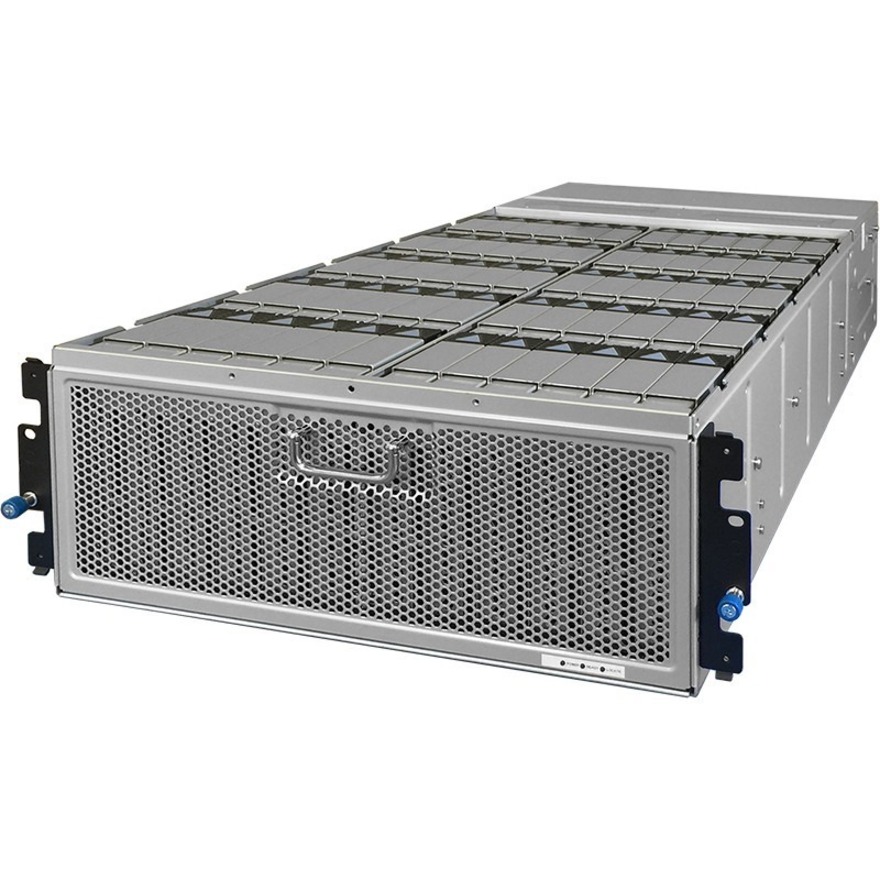

HGST Drive Enclosure - 12Gb/s SAS Host Interface - 4U Rack-mountable
Western Digital

HGST Drive Enclosure - 12Gb/s SAS Host Interface - 4U Rack-mountable

60 x HDD Supported - 60 x Total Bay - 60 x 3.5" Bay

SKU
1ES0096
Category
Drive Cabinets

$37,844.21

Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Western Digital through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
1ES0096
Category
Drive Cabinets

Overview

When data centers need storage expansion that delivers low power and high capacity with high-availability, they rely on the HGST 4U60 Storage Enclosure. This high-density, scalable, and cost-effective design Includes up to 60 Ultrastar® 3.5-inch drive modules in a 4U enclosure and offers 2x2x4-lane SAS 12Gb/s performance, high availability (HA), and hot-swappable components. Optimized to provide a dense solution with HA capabilities, while maintaining a low power profile, you can trust the 4U60 Storage Enclosure to deliver the value you need for your data center.

Highlights

  • Up to 60 integrated Ultrastar® drive modules
  • Available with 512e or 4Kn sector size (by part number)
  • Available option to configure up to 8 Ultrastar SSDs to create separate performance tiers within the enclosure
  • Available with SAS drives for HA applications or with SATA drives for cost-optimized applications
  • Host connectivity 2 x SAS QSFP+ receptacles per IO Module; optional connectivity cables are available
  • QSFP+ to HD mini SAS cables for host
  • QSFP+ to QSFP+ cables for daisy-chaining*
  • Hot Swappable: two power supplies (with integrated fans), drive modules, and IO modules
  • Fully compliant with SAS 3.0 specification for operation up to 12Gbps
  • Optional cable management arm eliminates tangled cables during servicing of hot-swappable CRUs

Specifications

Host Interface12Gb/s SAS
Product TypeDrive Enclosure
Manufacturer Part Number1ES0096
Limited Warranty5 Year
Weight (Approximate)198 lb
Form FactorRack-mountable
ManufacturerWestern Digital Corporation
Product Name4U60 Storage Enclosure
Rack Height4U
Brand NameHGST
Height6.9"
Width16.7"
Depth38.7"
Wireless LANNo
Number of Total Expansion Bays60
Number of 3.5" Bays60
Total Hard Drive Capacity Installed600 TB
Number of Hard Drives Supported60
Number of Hard Drives Installed60
Cooling FanYes
Non-RAID ModeJBOD
