StarTech 2-Port 10Gbps SFP+ OCP 3.0 Server Network Card, Intel X710, SFF 4C+ Compatible, Dual-Port OCP NIC, Windows/Linux Compatible
10G NIC w/Intel X710-BM2 adds 2x SFP+ slots; OCP 3.0 port for compact design, simplified maintanence; Network Card works with SFP+ modules/AOC/DAC, 1000Base-T/SX/LX/EX and 10GBase-T/SR/LR/CR; Windows/Linux; Supports PXE boot, 9K jumbo frames, VLAN
- SKU
- O1210I-NETWORK-CARD
- Category
- Network Interface Cards
MSRP$399.74
$384.18
Save 4%In stock: 156
Genuine StarTech.com through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- O1210I-NETWORK-CARD
- Category
- Network Interface Cards
Overview

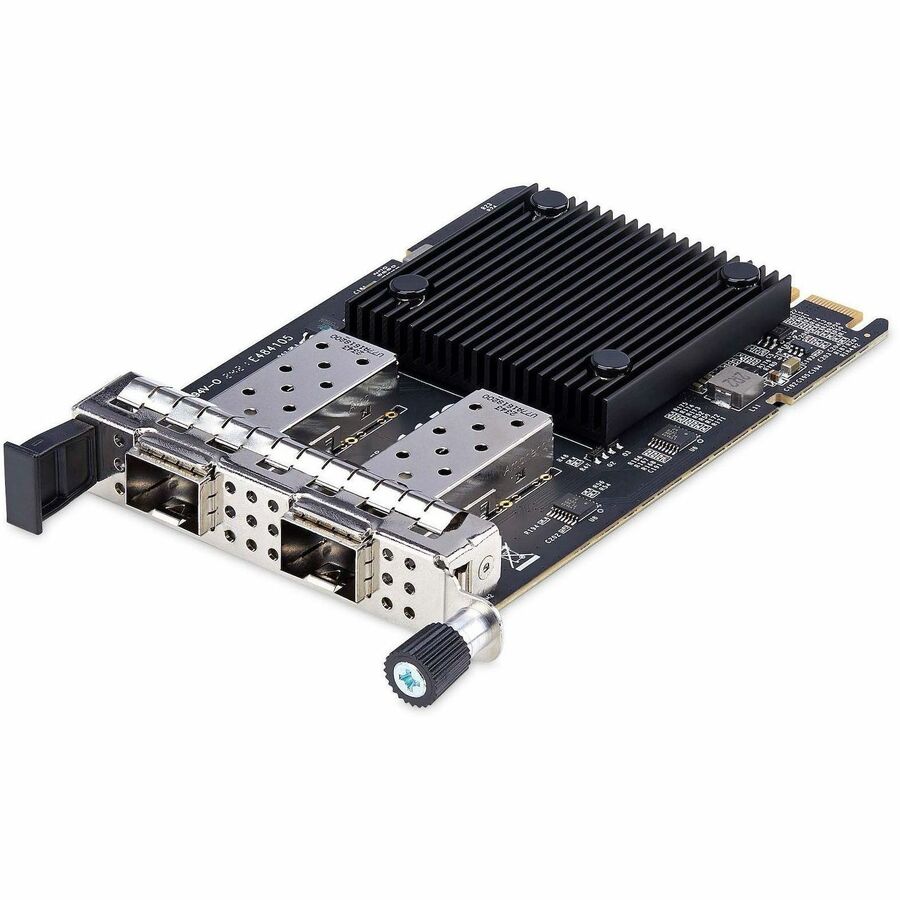

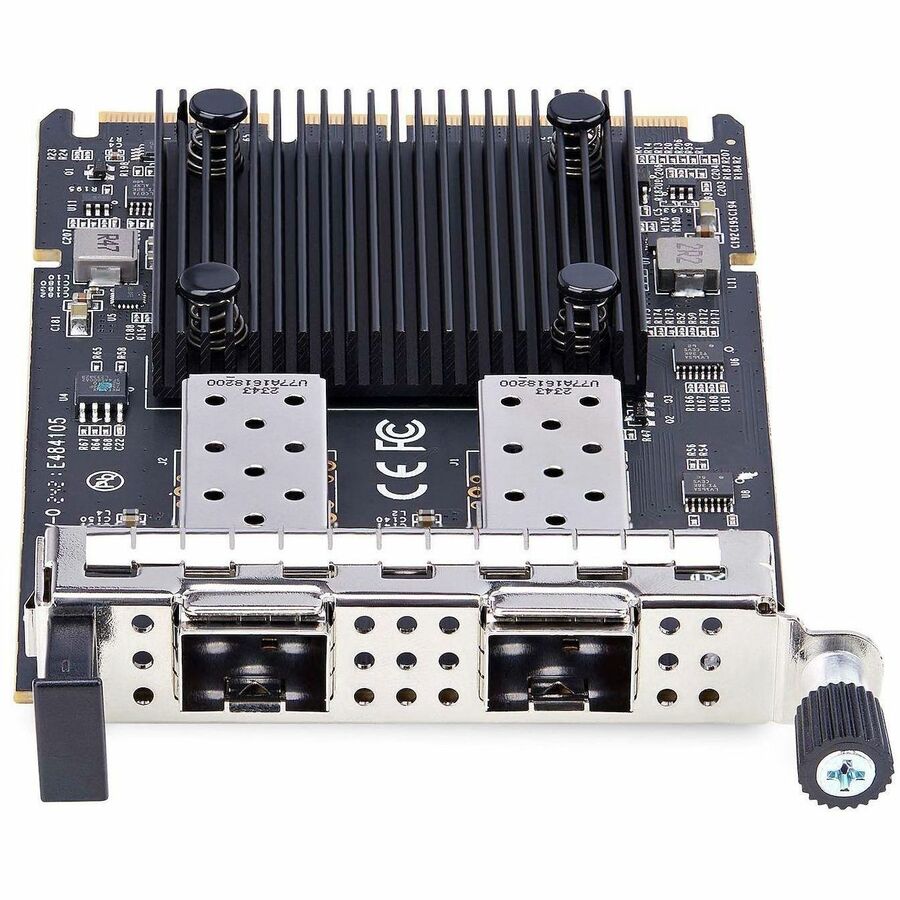

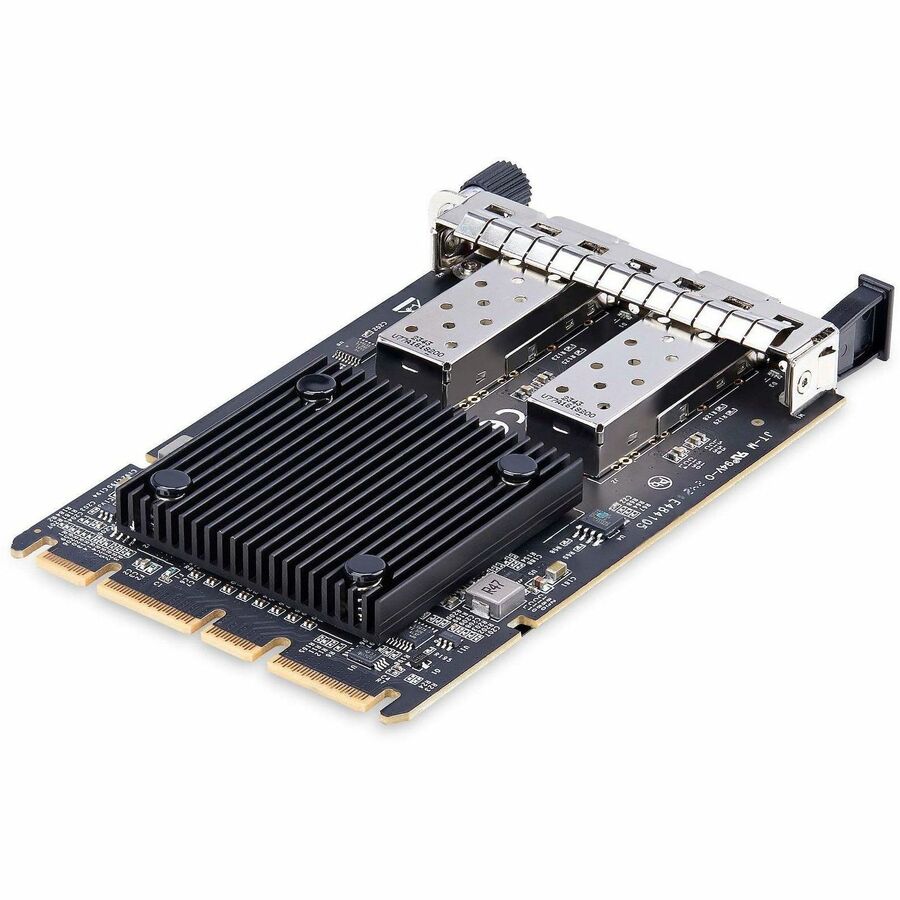

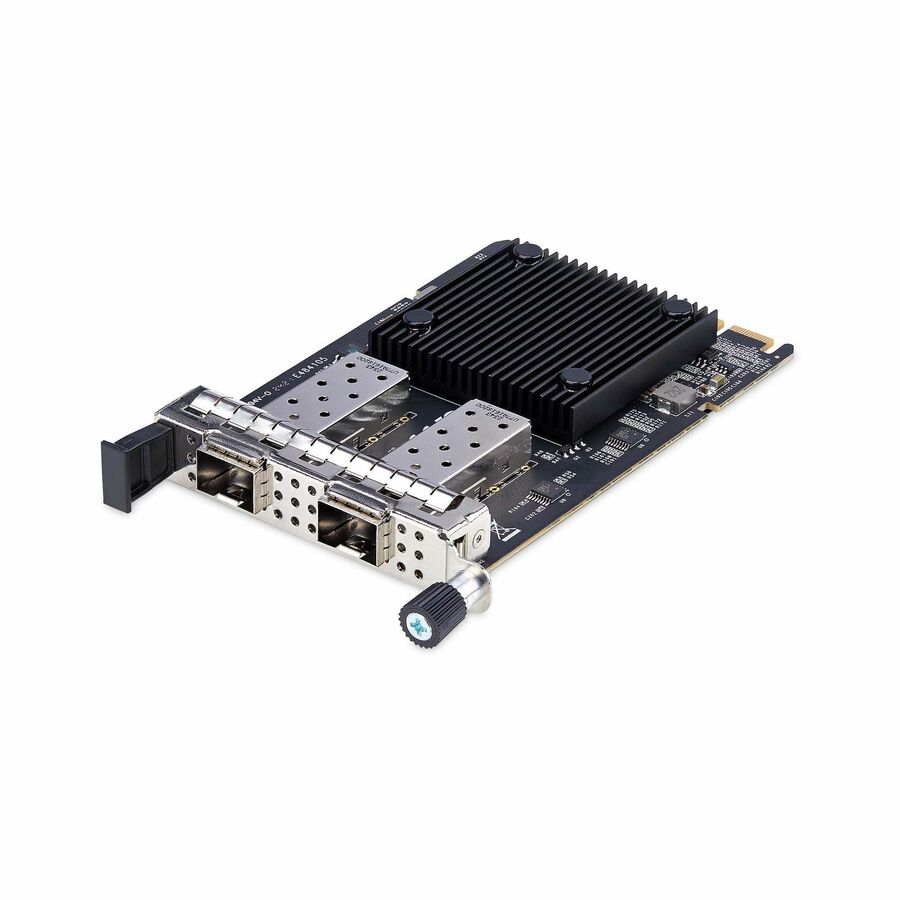

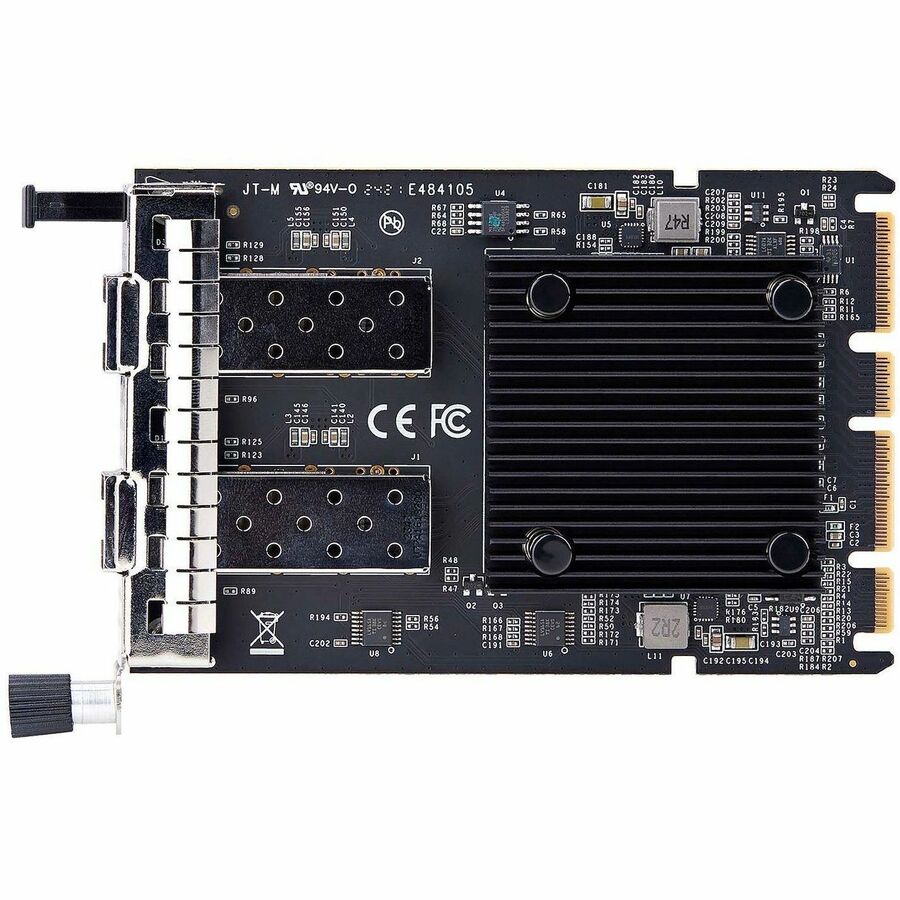

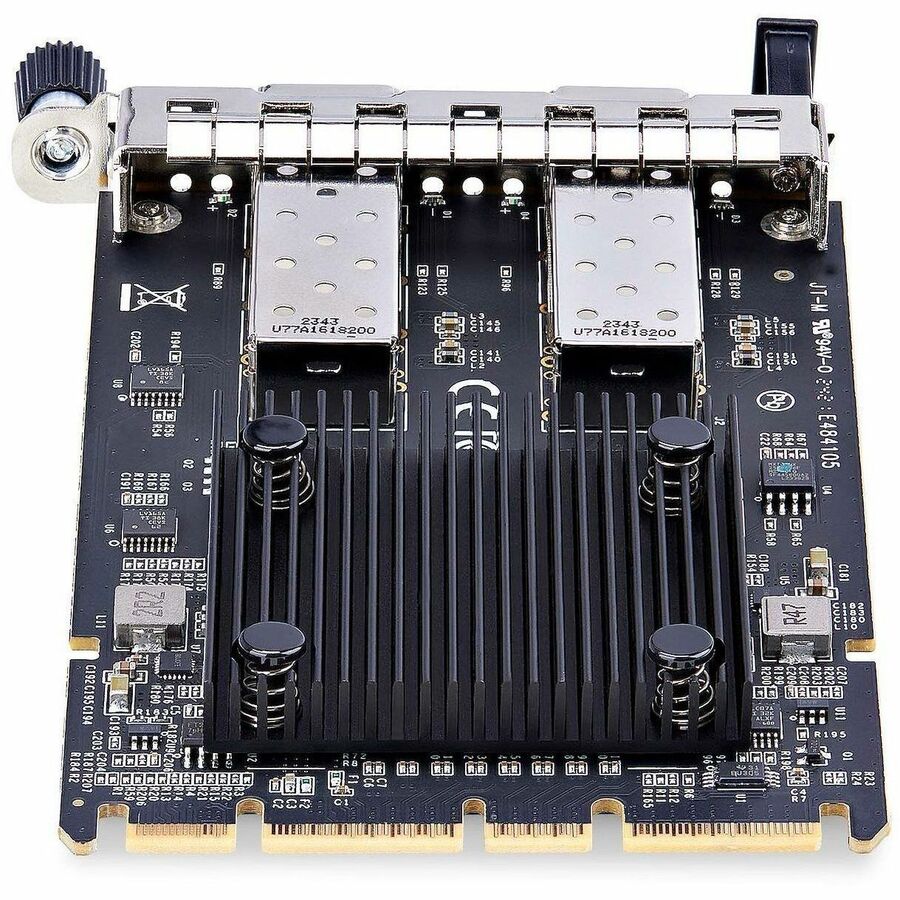

The 2-port 10Gbps OCP network interface card with the Intel X710-BM2 controller adds two open SFP+ slots to a server, increasing connectivity options and network performance.
OCP (Open Compute Project) Interface
The network adapter card uses the Open Compute Project (OCP) 3.0 (168-pin 4C+) connector, which was designed for servers to reduce size, increase port density, and provide hot-swappable capabilities for simplified maintenance and upgrades. The PCI Express Network Card is compatible with PCIe versions 3.0, 2.1, and 2.0.
10GbE and 1GbE SFP Support
This card supports 1000Base-T/SX/LX/EX and 10GBase-T/SR/LR/CR for various network configurations and distances. This is ideal for high-speed, low-latency connections such as those used in virtualization, data centers, and cloud computing. It works with any single-mode or multimode MSA-compliant or branded SFP or SFP+ module, active optical cable (AOC), or direct attach copper cable (DAC). Optical fiber allows longer cable runs than copper cabling while eliminating EMI.
Advanced Features
Network virtualization offloads reduce CPU overhead, increasing the efficiency of the virtualized network. PXE boot enables centralized OS deployment and updates. The card also supports 9K jumbo frames for reduced packet overhead and VLAN support for efficient network management. The card is compatible with Windows Server, Windows, and Linux.
Highlights
- 10Gigabit Ethernet Card guarantees a faster and efficient networking interface to client, server or workstation with maximum connectivity reliability
- Enjoy superfast data transfer of up to 1000 MB/s with PCI Express 3.0 card, between the network card and motherboards
- Supports optical fiber cable to span longer distances and provides data transmission rates par excellence between servers and network components
- With the 10GBase-X technology get up to 10Gbps data transfer rate over the supported network cable
Specifications
| Package Contents |
|
|---|---|
| Host Interface | PCI Express 3.0 |
| Product Type | 10Gigabit Ethernet Card |
| Device Supported | Server |
| Manufacturer Part Number | O1210I-NETWORK-CARD |
| Packaged Quantity | 1 |
| Limited Warranty | 2 Year |
| Weight (Approximate) | 3.70 oz |
| Features | PXE Support |
| Form Factor | Plug-in Card |
| Manufacturer | StarTech.com |
| Product Name | 10Gigabit Ethernet Card |
| Network Technology | 10GBase-X, 10GBase-T, 10GBase-CR, 10GBase-SR, 10GBase-LR, 1000Base-T, 1000Base-SX, 1000Base-LX |
| Brand Name | StarTech.com |
| Expansion Slot Type | SFP+ |
| Height | 0.6" |
| Width | 3.3" |
| Depth | 5.2" |
| Chipset Manufacturer | Intel |
| Chipset Model | X710-BM2 |
| Maximum Data Transfer Rate | 10 Gbit/s |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Single-mode, Multi-mode |
| Total Number of Expansion Slots | 2 |
| Product Color | Black |
| Color Family | Black |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE) |
