APC SmartUPS Industrial 2000VA / 1800W, 120VAC In/Out RM Conformal Coated

Rack-mountable - 120 V Input - 120 V AC Output - Sine Wave - 1 x Hard Wire 3-wire (H N + E) Receptacle(s) - 1 x Battery/Surge Outlet

SKU: XU2K0LLXXRCC
Category: General Purpose UPS

Request pricing

Confirmed with stock and TAA status before any payment.

Genuine Schneider Electric through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU: XU2K0LLXXRCC
Category: General Purpose UPS

Overview

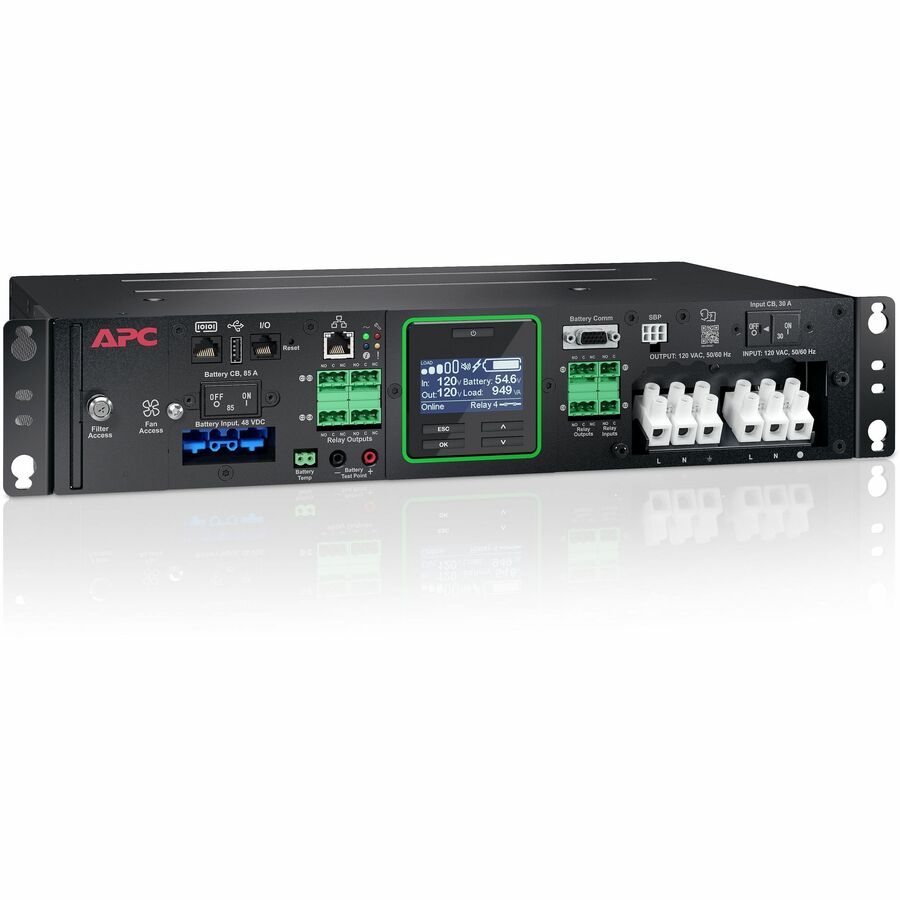

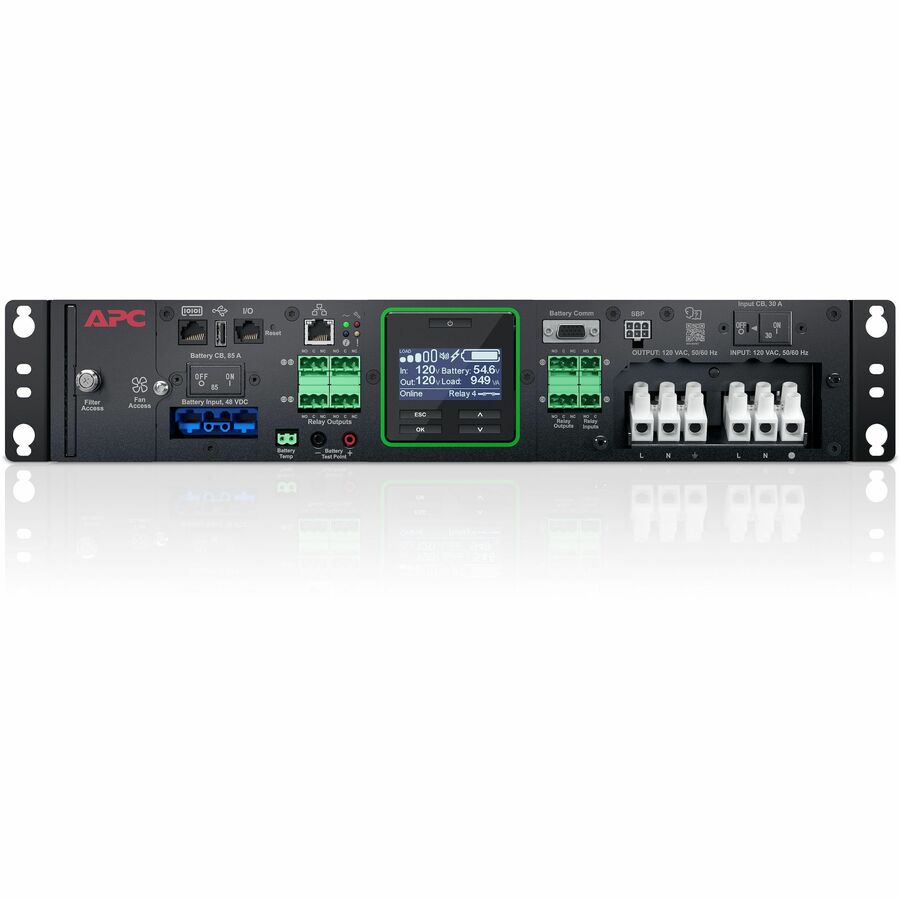

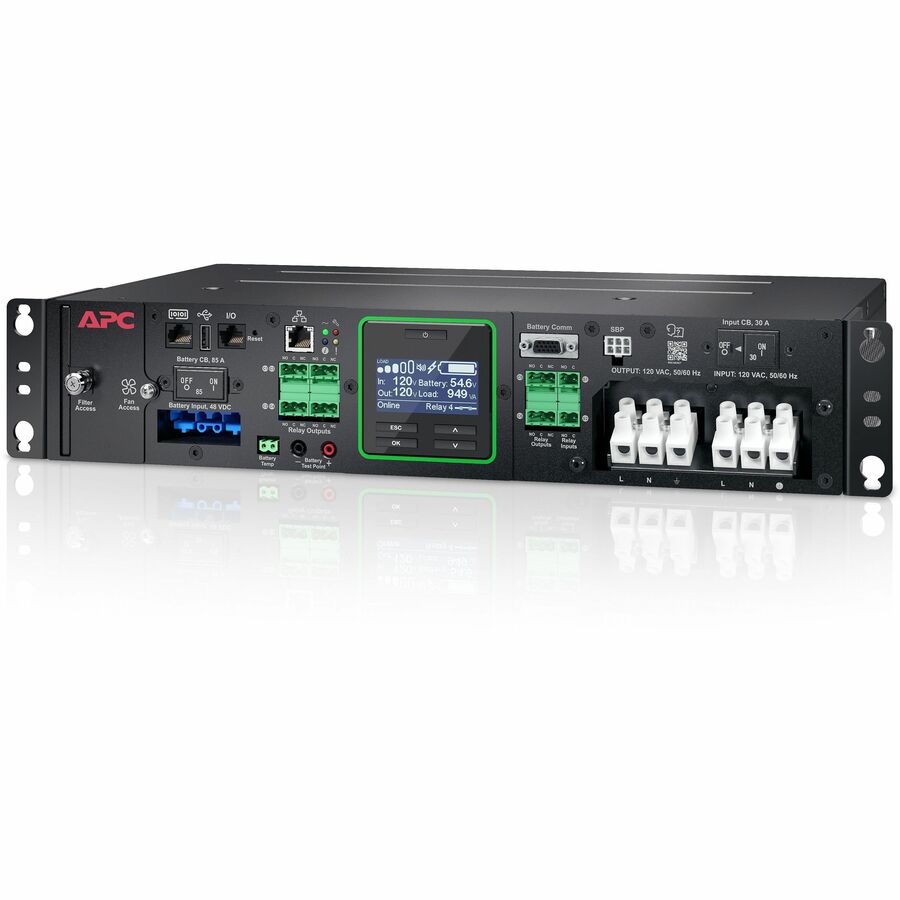

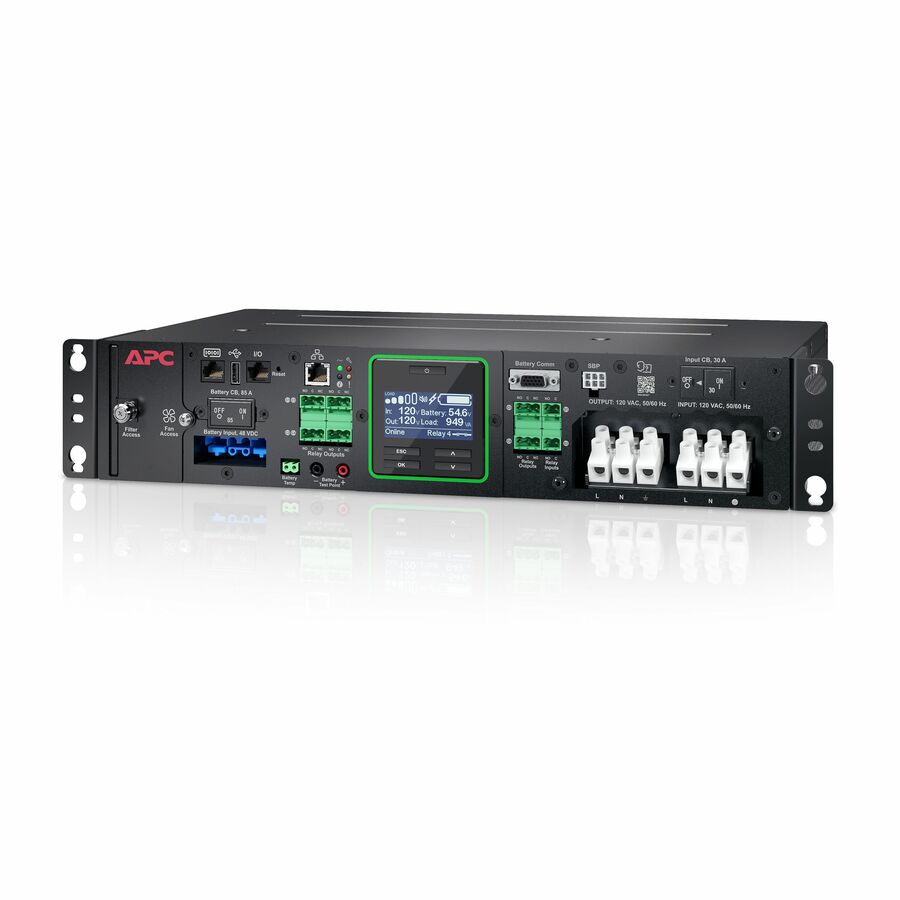

The APC Smart-UPS RT is an online UPS with a power rating of 2000VA and output power capacity of 1800 watts. This model does not include battery and is rack-mountable. The UPS features double conversion online technology and sine wave output.

Warranty

Limited Warranty: 3 Year

Highlights

2000VA/1800W UPS for intelligent transportation systems
Connect up to 8 battery packs for extended runtime
-40F to 165F operating temperature range for outdoor environments.
Embedded network management card for secure remote management and monitoring of the UPS.
3-year warranty on UPS and internal batteries.

Specifications

Application/Usage	Electronic, Industry, Transportation, Pharmaceutical, Chemical, Automotive
Package Contents	Smart-UPS 2kVA Rack-mountable UPS Dust filter Integrated network management Rack mounting brackets Rack mounting hardware Temperature probe Web/SNMP management card
Product Type	Double Conversion Online UPS
Hot Swappable	Yes
Input Voltage	120 V
Manufacturer Part Number	XU2K0LLXXRCC
Limited Warranty	3 Year
Output Voltage	120 V AC
Weight (Approximate)	22.05 lb
Form Factor	Rack-mountable
Manufacturer	Schneider Electric SA
Product Name	Smart-UPS 2kVA Rack-mountable UPS
Network Management	SNMP/Webcard
Product Line	Smart-UPS
Surge Energy Rating	432 J
Waveform Type	Sine Wave
Brand Name	APC
Plug/Connector Type	Hard Wire 3-wire (1P+N+E)
Output Frequency	60 Hz
Country of Origin	Philippines
Height	3.46"
Width	17.01"
Depth	10.24"
Input Frequency	70 Hz
Receptacle Type	Hard Wire 3-wire (H N + G)
Environmentally Friendly	Yes
Maximum Operating Temperature	165.2°F (74°C)
Battery Characteristics	External Battery System
Load Capacity (VA)	2000 VA
Load Capacity (Watt)	1800 W
Replaceable Battery	Yes
DC System Voltage	48 V DC
Maximum Operating Elevation	10000 ft
Maximum Storage Elevation	50000 ft
Number of Battery & Surge Outlets	1
Storage Temperature	-40°F (-40°C) - 185°F (85°C)
Receptacle Detail	1 x Hard Wire 3-wire (H N + E)
Sound Emission (A-Weighted)	55 dB(A)
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Single-use Plastic (SUP) Free Shipping Packaging	No
