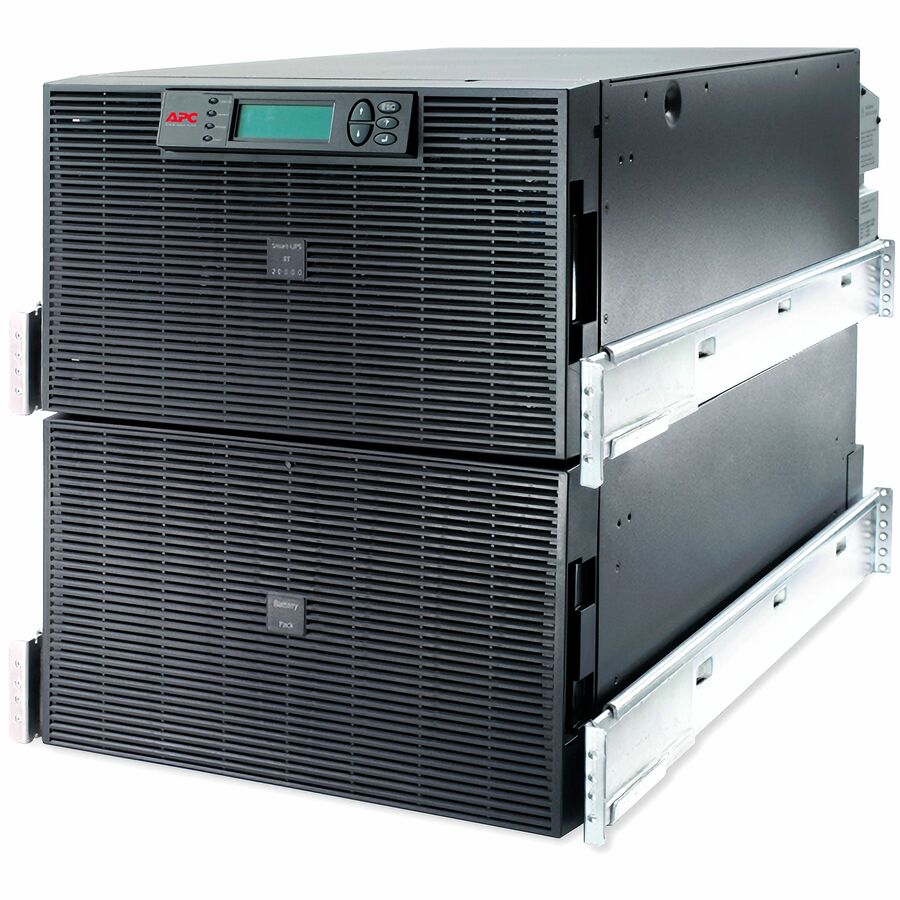

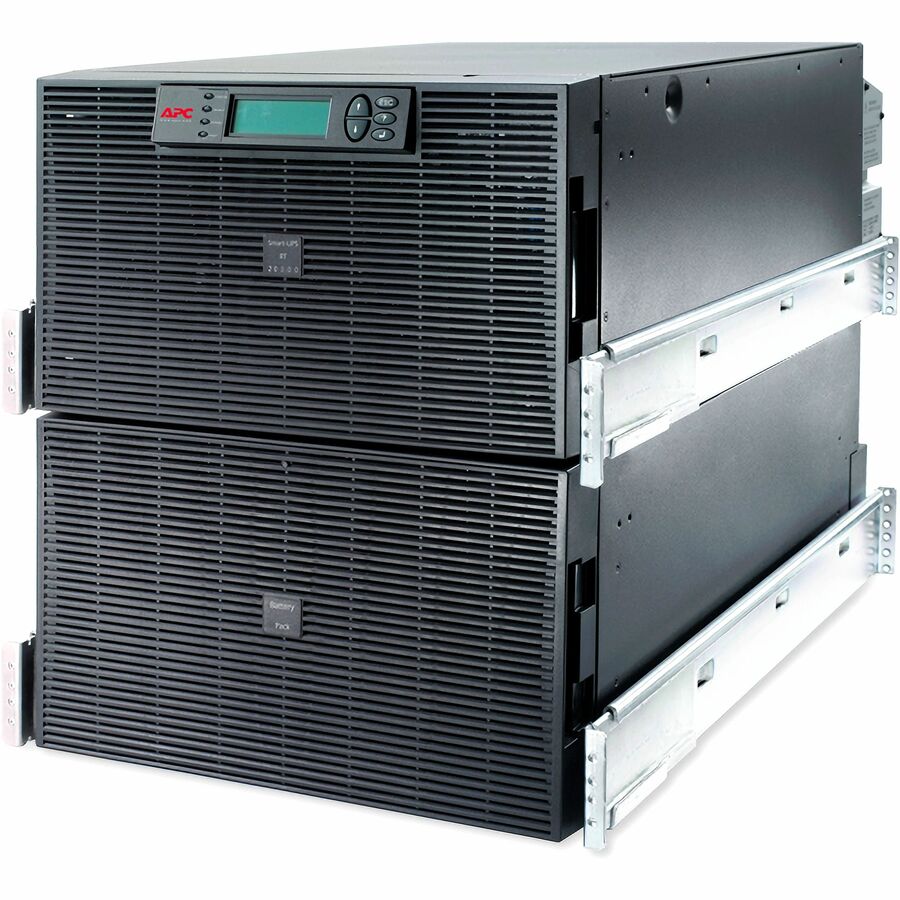

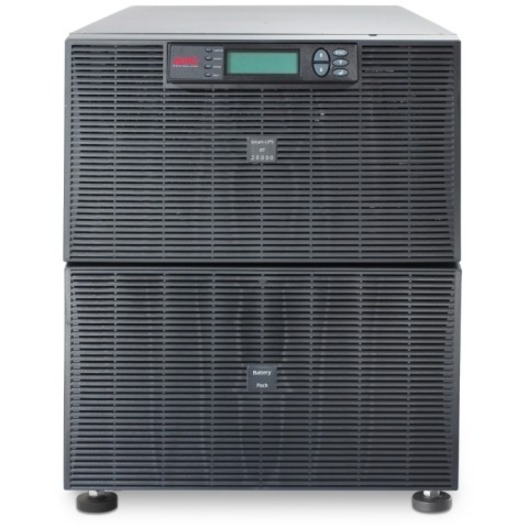

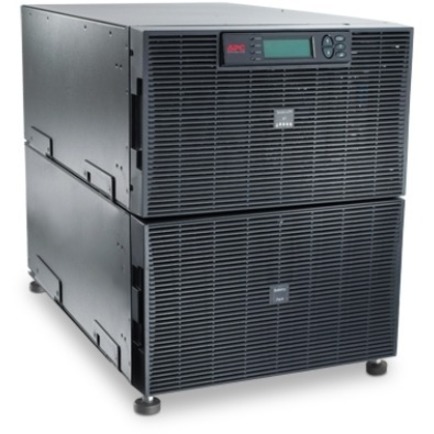

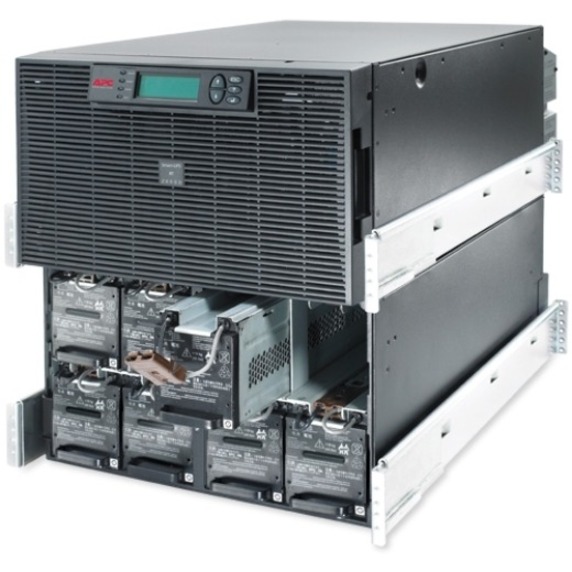

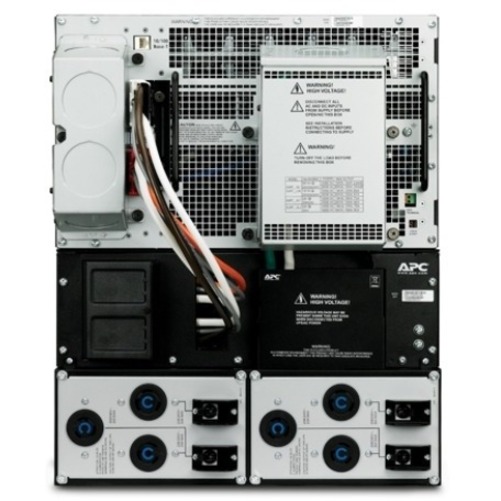

APC Smart-UPS RT 20kVA, 208V, LCD, rackmount, 12U, 4x NEMA L6-20R & 2x NEMA L6-30R outlets
12U Rack-mountable - 2 Hour Recharge - 4.90 Minute Stand-by - 208 V AC, 240 V AC Input - 208 V AC, 240 V AC Output - Single Phase - Sine Wave - Serial Port - 1 x Hard Wire 3-wire (2PH + G), 4 x NEMA L6-20R, 2 x NEMA L6-30R Receptacle(s) - 6 x Battery/Surge Outlet - SNMP Manageable
- SKU
- SURT20KRMXLT
- Category
- General Purpose UPS
Request pricing
Confirmed with stock and TAA status before any payment.
Genuine Schneider Electric through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- SURT20KRMXLT
- Category
- General Purpose UPS
Overview
The APC Smart-UPS RT is an online UPS with a power rating of 20kVA and output power capacity of 16000 watts. It includes multiple output connections such as NEMA L6-20R and NEMA L6-30R. This model is includes a lead-acid battery and is rack-mountable. It features a double conversion online topology, sine wave waveform type, and built-in bypass. More from the Manufacturer
About APC
APC, a flagship brand of Schneider Electric, provides clean battery backup power, surge protection, and IT physical infrastructure inside and outside the traditional IT environment. Through our APC brand products and solutions, we offer certainty in a connected world. Certainty that our reliable, integrated physical infrastructure solutions are based on the fundamental premise that your data and information should — and always will be — accessible.
Warranty
Limited Warranty: 2 Year
Highlights
- 20kVA power capacity for high-demand environments
- True double-conversion on-line power protection
- Rackmount design fits 12U space for flexible installation
- LCD display for easy monitoring and management
Specifications
| Battery Chemistry | Lead Acid |
|---|---|
| Package Contents |
|
| Software Included | PowerChute Management Software |
| Product Type | Double Conversion Online UPS |
| Hot Swappable | Yes |
| Input Voltage | 208 V AC, 240 V AC |
| Manufacturer Part Number | SURT20KRMXLT |
| Packaged Quantity | 1 Each |
| Limited Warranty | 2 Year |
| Output Voltage | 208 V AC, 240 V AC |
| Weight (Approximate) | 546.15 lb |
| Form Factor | Rack-mountable |
| Input Current | 114 A |
| Manufacturer | Schneider Electric SA |
| Product Name | Smart-UPS RT 20000VA Tower/Rack Mountable UPS |
| Network Management | SNMP Manageable |
| Product Line | Smart-UPS |
| Waveform Type | Sine Wave |
| Product Series | RT |
| Rack Height | 12U |
| Brand Name | APC |
| Plug/Connector Type | Hard Wire 3-wire (2PH + G) |
| Country of Origin | Philippines |
| Height | 20.98" |
| Width | 17.01" |
| Depth | 30.43" |
| Phase | Single Phase |
| Receptacle Type | NEMA L6-20R, NEMA L6-30R |
| Environmentally Friendly | Yes |
| Network (RJ-45) | Yes |
| Serial Port | Yes |
| Number of Batteries | 4 |
| Backup/Run Time (Half Load) | 15.30 Minute |
| Backup/Run Time (Full Load) | 4.90 Minute |
| Battery Characteristics | Spill-proof, Maintenance-free |
| Load Capacity (VA) | 20 kVA |
| Load Capacity (Watt) | 16 kW |
| Number of Battery & Surge Outlets | 6 |
| Typical Battery Recharge Time | 2 Hour |
| Product Color | Black |
| Receptacle Detail | 1 x Hard Wire 3-wire (2PH + G), 4 x NEMA L6-20R, 2 x NEMA L6-30R |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Single-use Plastic (SUP) Free Shipping Packaging | No |
