APC Smart-UPS X, Line Interactive, 3kVA, Rack/tower convertible 2U, 100V-127V, 3x 5-15R+3x 5-20R+1x L5-30R NEMA, NMC, Extended runtime, W/rail kit

This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 2880VA line interactive 2U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with NEMA L5-30P input, 3x NEMA 5-15R, 3x NEMA 5-20R and 1x NEMA L5-30R outlets. The UPS has a preinstalled Network Management Card for UPS network-based monitoring and management. The Smart-UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. It comes with APC temperature sensor AP9335T for monitoring temperature. The 3 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies.

More from the Manufacturer

Key Features

Specifications

Hot Spots

(1)

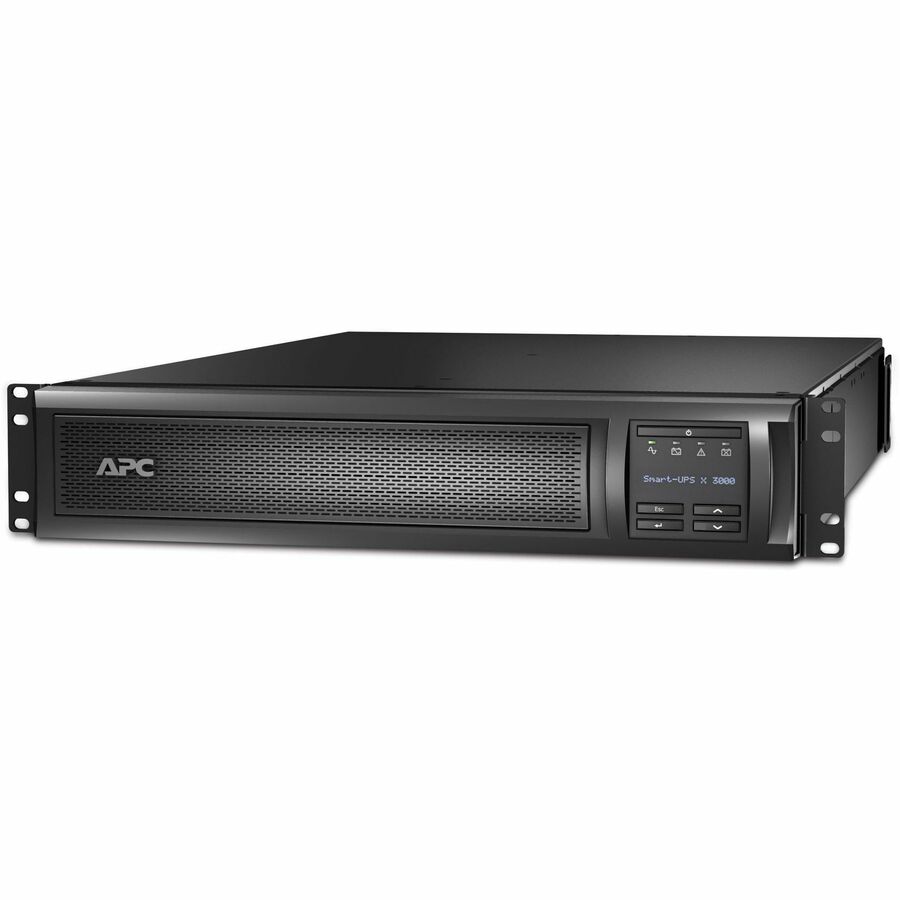

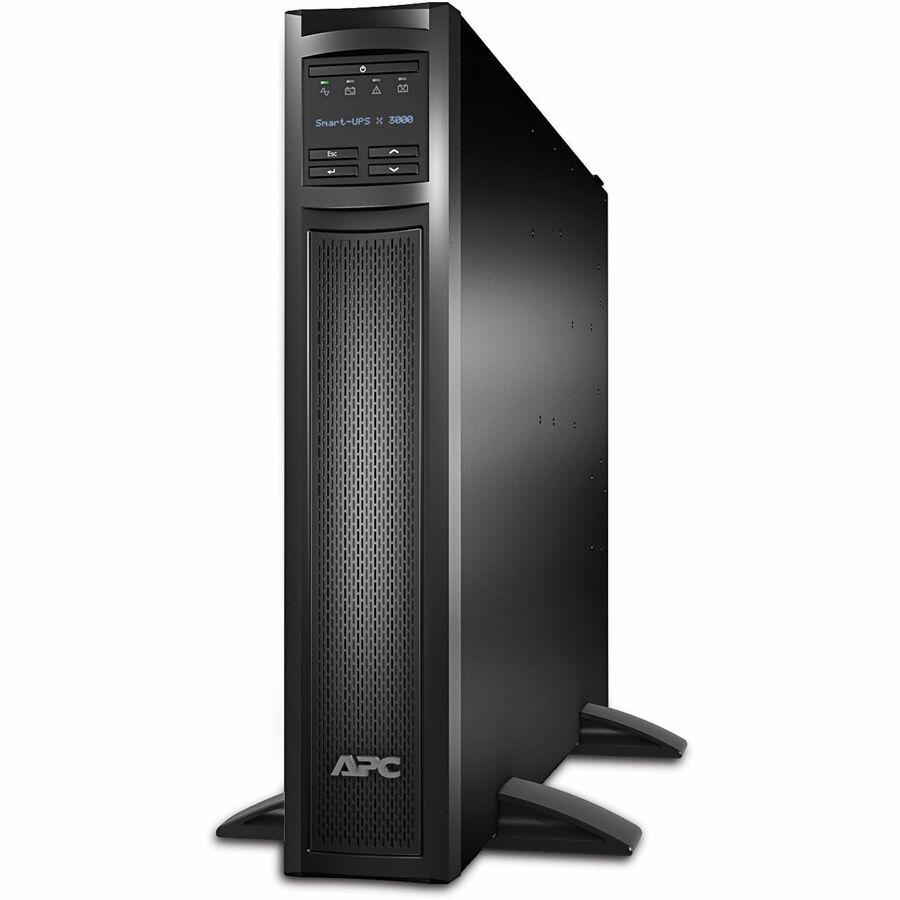

2U design with flexible installation

2U design saves valuable space for IT. Rackmount and tower convertible model.

(2)

Graphical LCD display

Quick, easy-to-read, intuitive LCD provides information about the utility and UPS conditions.

(3)

Pre-installed network management card

Enables network-based monitoring and management of UPS.

(4)

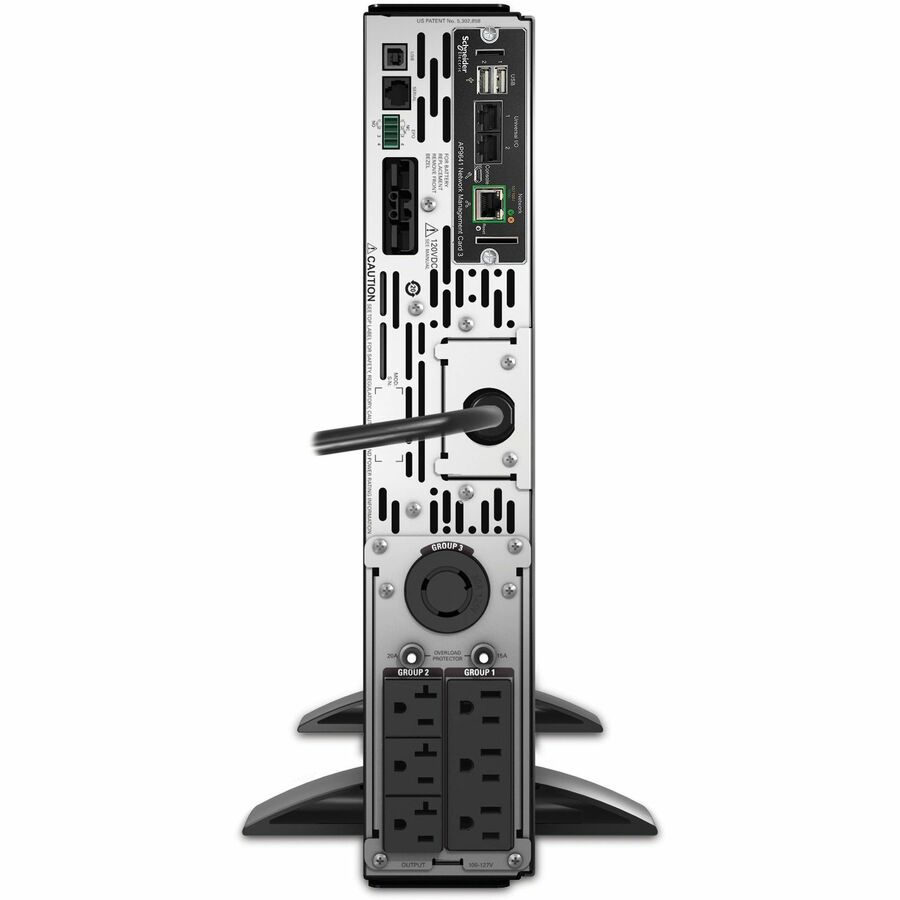

7 outlets in 2U

(3) NEMA 5-15R, (3) NEMA 5-20R, and (1) NEMA L5-30R outlets, including 3 switched outlet groups.

(5)

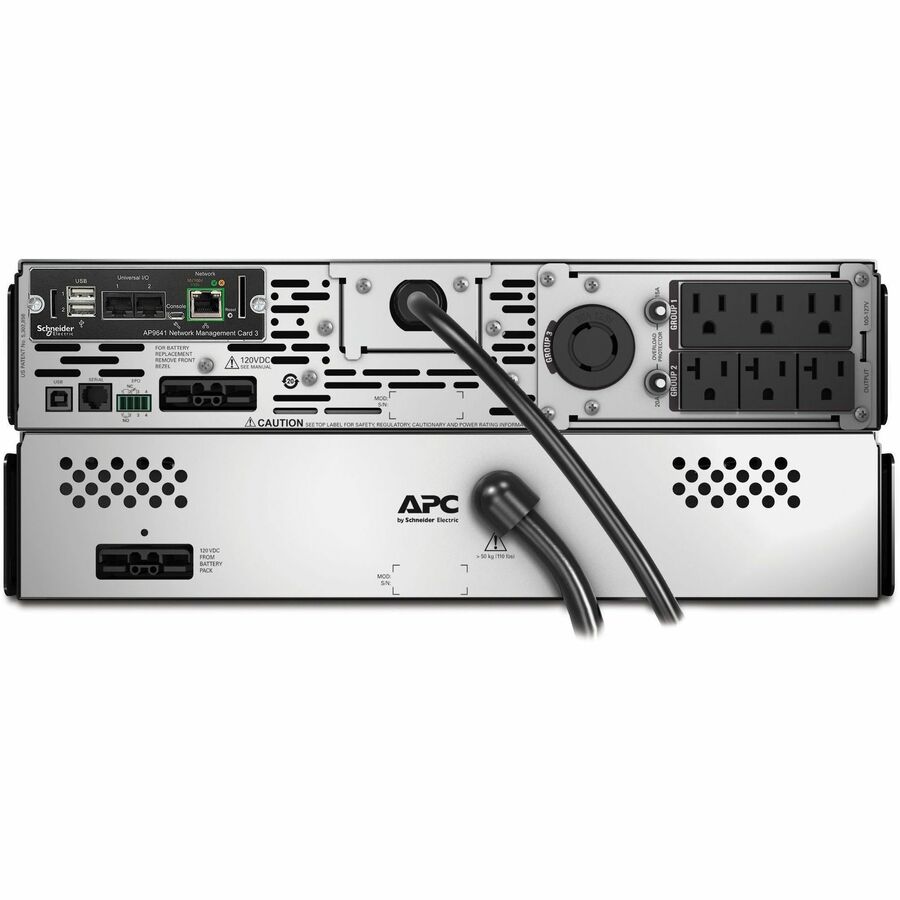

Extended runtime option

External battery pack connector for extended runtime needs.

(6)

Emergency Power Off

Immediately turns off UPS and disconnects power to all connected equipment

FAQ

Can I add external battery packs? How many?

Yes, Smart-UPS SMX3000RMLV2UNC supports up to 10 APC external battery packs SMX120RMBP2U.

What are my options for UPS management and software?

Options for monitoring and managing your UPS include EcoStruxure IT, Network Management Card and PowerChute.

Do all models come with a preinstalled Network Management Card?

Select models with an "NC" suffix come with the network management card preinstalled.

How does the 'green' mode operating mode increase efficiency?

APC’s patented ‘green’ mode bypass components that perform AVR when not needed. This results in higher efficiencies across a wide range of load conditions.

What do switched outlet groups allow me to do?

Switched outlet groups provide greater control, allowing you to reboot hung devices, program sequenced on-and-off and non-critical load shedding of equipment.

What are the key benefits of upgrading to PowerChute Network Shutdown v5.0?

PowerChute Network Shutdown v5.0 supports vSphere Cluster Services (vCLS). Ongoing software update support for the latest virtualization environment updates & troubleshooting. Latest cybersecurity updates in PKI support to harden security across the interfaces. Validated integrations with the latest virtual and HCI infrastructure versions for ease of deployment. PowerChute can be fully deployed within the VxRail cluster through the Dell VxRail API Integration (From v4.5), saving space and reducing hardware needs. VxRail cluster shutdown redundancy provided with the Network Management Card 3.
