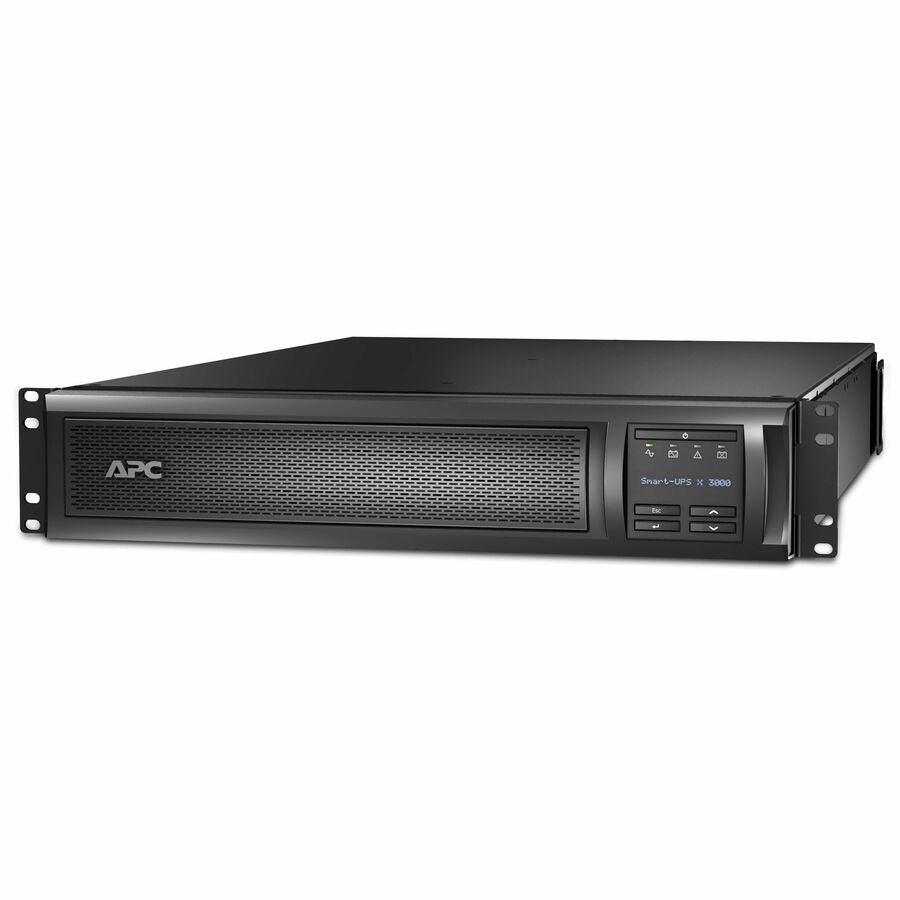

APC Smart-UPS X, Line Interactive, 3kVA, Rack/tower convertible 2U, 208V-230V, 8x C13+1x C19 IEC, SmartSlot, Extended runtime

This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 3kVA line interactive 2U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with IEC 320 C20 input (includes BS1363A, IEC 320 C20 and Schuko CEE 7/EU1-16P power cords), 8x IEC 320 C13 and 1x IEC 320 C19 outlets. The UPS has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. The 3 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies.

More from the Manufacturer

Key Features

Software and Communication Ports

Hot Spots

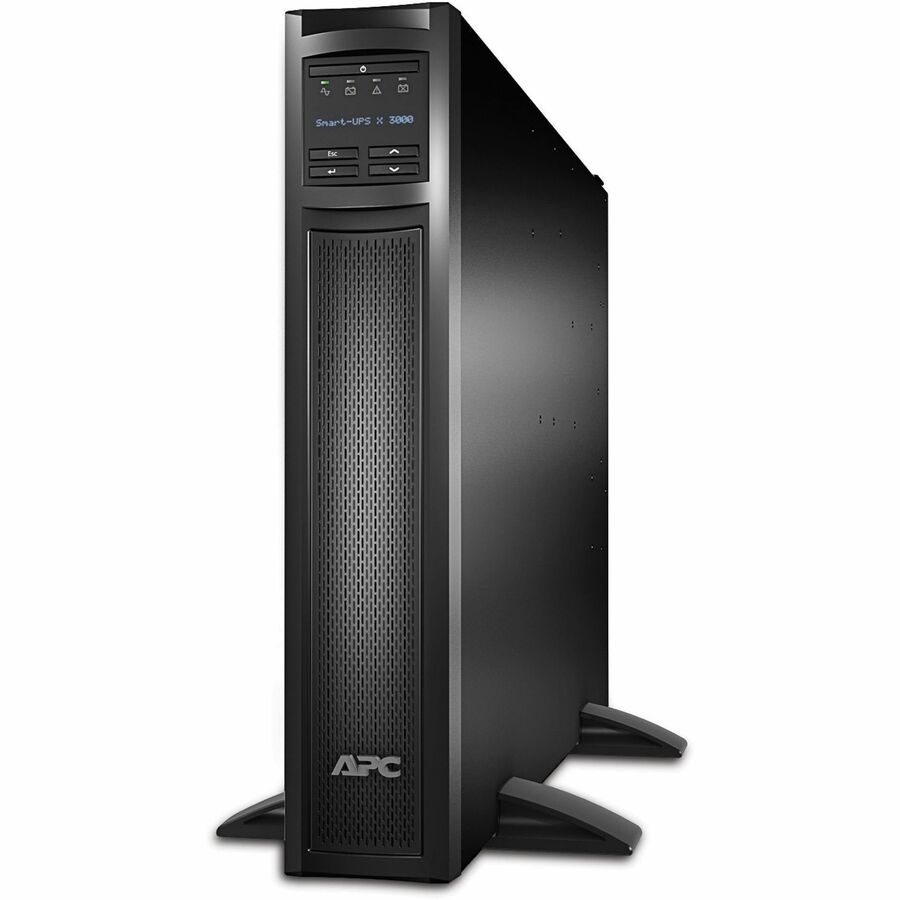

1) 2U design with flexible installation

2U design saves valuable space for IT. Rackmount and tower convertible model.

2) Graphical LCD display

Quick, easy-to-read, intuitive LCD provides information about the utility and UPS conditions.

3) SmartSlot

Add a network management card or purchase an -NC model with a pre-installed network card

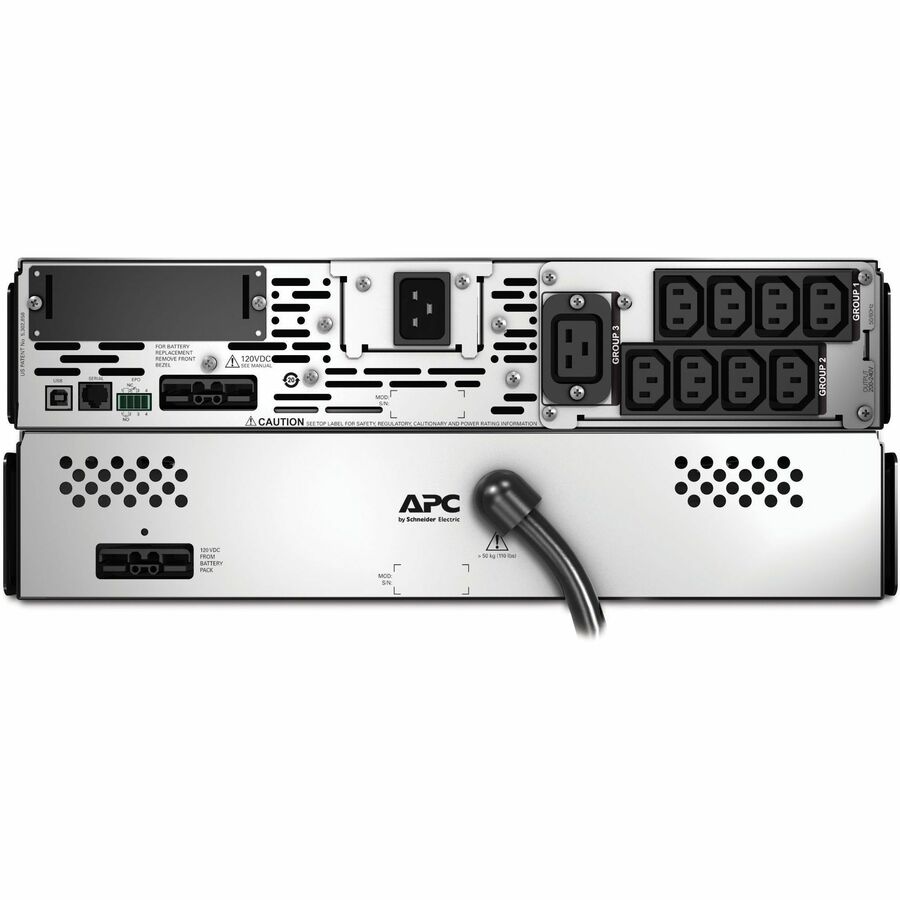

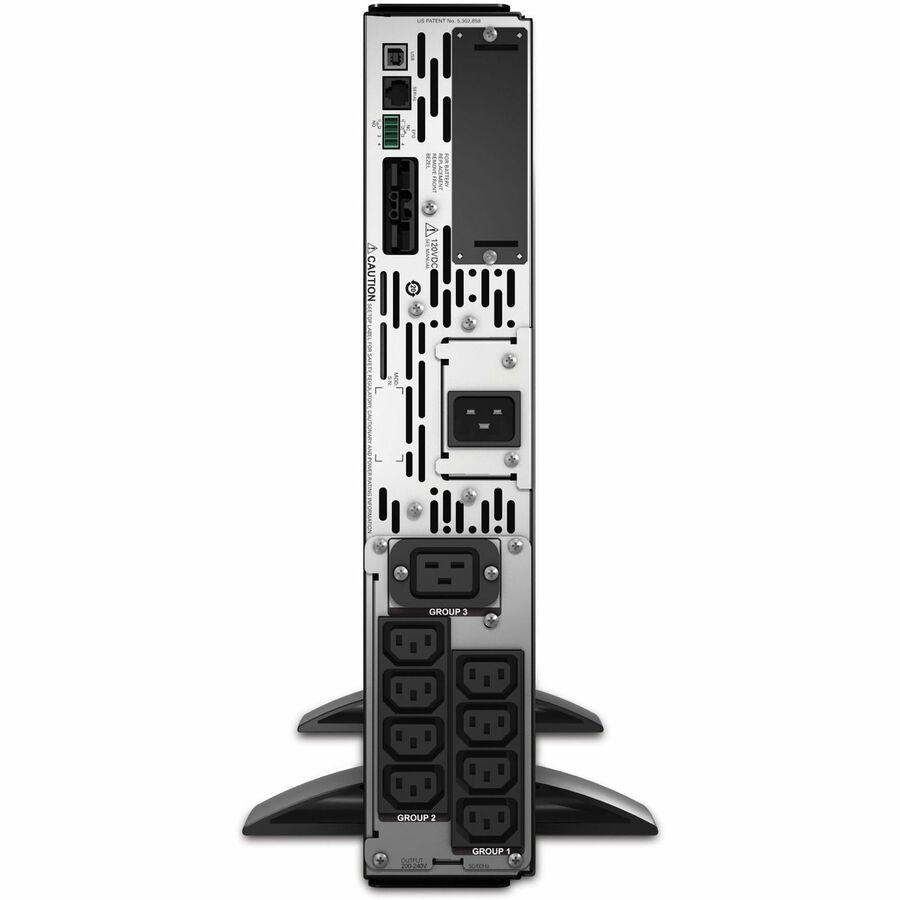

4) 9 outlets in 2U

8 IEC C13 and 1 IEC C19 outlets including 3 switched outlet groups

5)

Extended runtime option

The UPS can support up to 10 external battery packs.

6) Emergency Power Off

Immediately turns off UPS and disconnects power to all connected equipment

FAQ

Can

I add external battery packs? How many?

Yes, SMX3000RMHV2U supports up to 10 SMX120RMBP battery packs.

What are my options for UPS management and software?

Options for monitoring and managing your UPS include EcoStruxure IT, Network Management Card and PowerChute.

What do switched outlet groups allow me to do?

Switched outlet groups provide greater control, allowing you to reboot hung devices, program sequenced on-and-off and non-critical load shedding of equipment.

Do all models come with a preinstalled Network Management Card?

Select models with an "NC" suffix come with the network management card preinstalled.

How does the 'green' mode operating mode increase efficiency?

APC’s patented ‘green’ mode bypass components that perform AVR when not needed. This results in higher efficiencies across a wide range of load conditions.

What are the key benefits of upgrading to PowerChute Network Shutdown v5.0?

PowerChute Network Shutdown v5.0 supports vSphere Cluster Services (vCLS). Ongoing software update support for the latest virtualization environment updates & troubleshooting. Latest cybersecurity updates in PKI support to harden security across the interfaces. Validated integrations with the latest virtual and HCI infrastructure versions for ease of deployment. PowerChute can be fully deployed within the VxRail cluster through the Dell VxRail API Integration (From v4.5), saving space and reducing hardware needs. VxRail cluster shutdown redundancy provided with the Network Management Card 3.

Comparison Table
