APC Smart-UPS X, Line Interactive, 3kVA, Rack/tower convertible 4U, 208V-230V, 8x C13+2x C19 IEC, SmartSlot, Extended runtime, Short depth
Schneider Electric

APC Smart-UPS X, Line Interactive, 3kVA, Rack/tower convertible 4U, 208V-230V, 8x C13+2x C19 IEC, SmartSlot, Extended runtime, Short depth

4U Rack-mountable - 3 Hour Recharge - 6 Minute Stand-by - 208 V AC, 230 V AC Input - 208 V AC, 230 V AC Output - Sine Wave - Serial Port - USB - 2 x IEC 320-C19, 2 x IEC Jumper, 8 x IEC 320-C13 Receptacle(s) - 12 x Battery/Surge Outlet

SKU
SMX3000HV
Category
General Purpose UPS

MSRP$4,505.00

$3,046.71

Save 32%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Schneider Electric through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
SMX3000HV
Category
General Purpose UPS

Overview

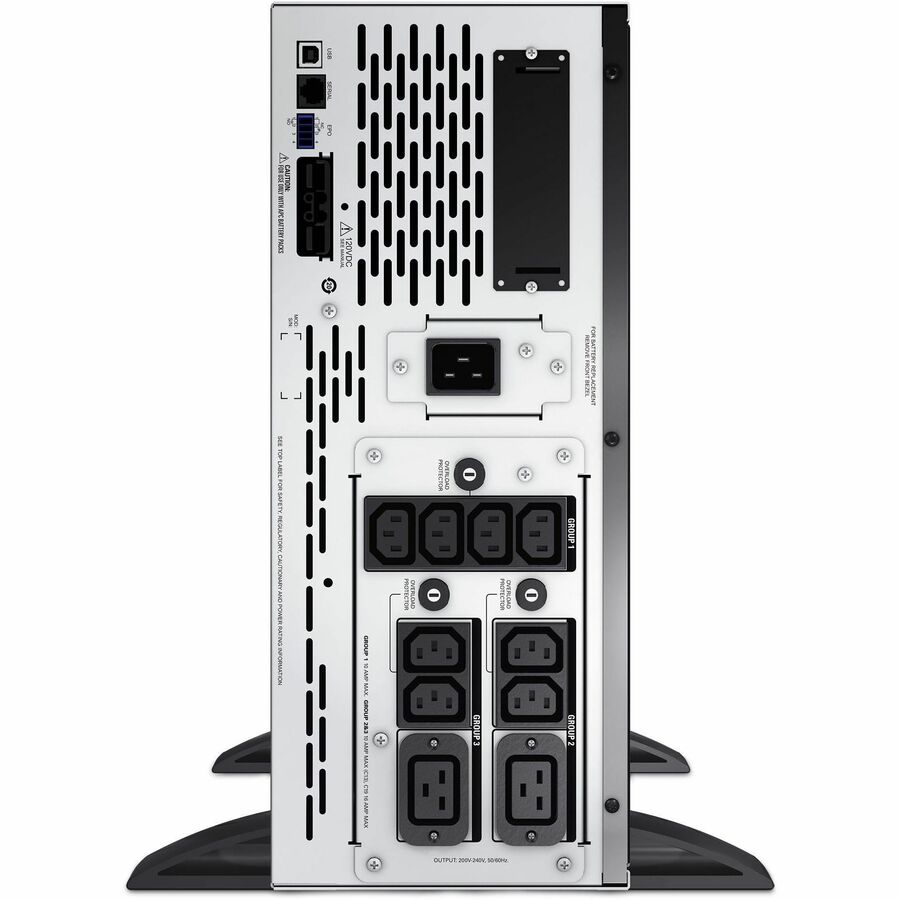

This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 3kVA line interactive 4U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with IEC 320 C20 input (includes BS1363A, IEC 320 C20 and Schuko CEE 7/EU1-16P power cords), 8x IEC 320 C13 and 2x IEC 320 C19 outlets. The UPS has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. The 3 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies.

Warranty

Additional Warranty Information: UPS: 36 month(s)|Battery: 24 month(s) Limited Warranty: 3 Year

Highlights

  • 3kVA/2700W line interactive pure sine wave 4U rack/tower UPS (rail kit AP9625 sold separately)
  • User-selectable high voltage setting of 200V-240V
  • Add up to 10 external battery packs (SMX120BP)
  • Short depth UPS provides extra space for cable management
  • Graceful shutdown using serial or USB cables via PowerChute Serial Shutdown
  • Automatic Voltage Regulation keeps output voltage within acceptable user selectable levels
  • Ideal for servers, storage, networking & commercial applications

Specifications

Additional Warranty InformationUPS: 36 month(s)|Battery: 24 month(s)
Battery ChemistryLead Acid
Package Contents
  • Smart-UPS X 3000VA Rack/Tower LCD 200-240V
  • CD with software
  • Documentation CD
  • Rack mounting brackets
  • Smart UPS signalling RS-232 cable
  • USB cable
  • User manual
Software IncludedPowerchute Serial Edition
Product TypeLine-interactive UPS
Hot SwappableYes
Input Voltage208 V AC, 230 V AC
Manufacturer Part NumberSMX3000HV
Limited Warranty3 Year
Output Voltage208 V AC, 230 V AC
Weight (Approximate)85.19 lb
Form FactorRack-mountable
ManufacturerSchneider Electric SA
Product NameSmart-UPS X 3000VA Rack/Tower LCD 200-240V
Product LineSmart-UPS
Surge Energy Rating645 J
Waveform TypeSine Wave
Product SeriesSMX
Rack Height4U
Brand NameAPC
Plug/Connector TypeBritish BS1363A, IEC 320-C20
AlarmLow Battery, On Battery, Configurable Delay
Country of OriginPhilippines
Cord Length6 ft
Height17.01"
Width7.01"
Depth19.02"
Receptacle TypeSchuko CEE 7/EU1-16P
Environmentally FriendlyYes
USBYes
Serial PortYes
Backup/Run Time (Half Load)18 Minute
Backup/Run Time (Full Load)6 Minute
Battery CharacteristicsSpill-proof, Maintenance-free
Load Capacity (VA)3000 VA
Load Capacity (Watt)2700 W
Number of Battery & Surge Outlets12
Typical Battery Recharge Time3 Hour
Product ColorBlack
Receptacle Detail2 x IEC 320-C19, 2 x IEC Jumper, 8 x IEC 320-C13
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
Single-use Plastic (SUP) Free Shipping PackagingNo
