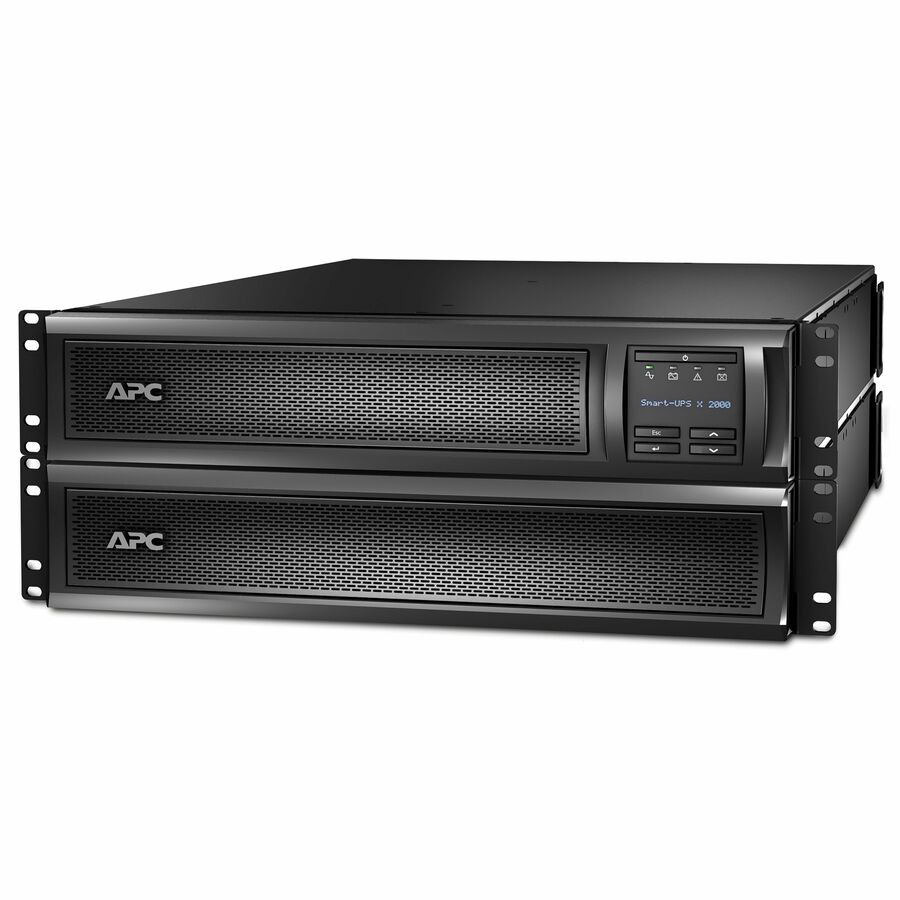

APC Smart-UPS X, Line Interactive, 2000VA,Rack/tower convertible 2U, 100V-127V, 3x 5-15R+3x 5-20R+1x L5-20R NEMA,NMC,Extended runtime,10 Ft input cord
2U Rack-mountable - AVR - 3 Hour Recharge - 10.90 Minute Stand-by - 120 V AC Input - 120 V AC Output - Single Phase - Sine Wave - Serial Port - 1 x NEMA L5-20R, 3 x NEMA 5-15R, 3 x NEMA 5-20R Receptacle(s) - 7 x Battery/Surge Outlet
- SKU
- SMX2KR2UNCX145
- Category
- General Purpose UPS
MSRP$3,460.00
$2,356.18
Save 32%Back ordered — ships when restocked.
Genuine Schneider Electric through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- SMX2KR2UNCX145
- Category
- General Purpose UPS
Overview
This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 2000VA line interactive 2U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with NEMA 5-20P input, 3x NEMA 5-15R, 3x NEMA 5-20R and 1x NEMA L5-20R outlets. The UPS has a preinstalled Network Management Card for UPS network-based monitoring and management. The Smart-UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. It comes with APC temperature sensor AP9335T for monitoring temperature. The 3 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies.
Warranty
Additional Warranty Information: UPS: 36 month(s)|Battery: 24 month(s) Limited Warranty: 3 Year
Highlights
- 1920VA/1800W line interactive pure sine wave 2U rack/tower UPS (rail kit included)
- User-selectable low voltage setting of 100V-127V
- Add up to 10 external battery packs (SMX120RMBP2U)
- Preinstalled NMC for network-based UPS monitoring & management
- 1-Year Secure Network Management Card subscription included
- Automatic Voltage Regulation keeps output voltage within acceptable user selectable levels
- Ideal for servers, storage, networking & commercial applications
- Graceful shutdown of physical servers, virtual machines and HCI clusters
Specifications
| Additional Warranty Information | UPS: 36 month(s)|Battery: 24 month(s) |
|---|---|
| Application/Usage | Server, POS Terminal, Router, Switch, Network Hub, Critical System, Storage Device, Network Device, Business, Security System, Communication System, IT Equipment |
| Battery Chemistry | Lead Acid |
| Package Contents |
|
| Software Included | Powerchute® Business Edition Software |
| Product Type | Line-interactive UPS |
| Hot Swappable | Yes |
| Input Voltage | 120 V AC |
| Manufacturer Part Number | SMX2KR2UNCX145 |
| Limited Warranty | 3 Year |
| Output Voltage | 120 V AC |
| Weight (Approximate) | 84.77 lb |
| Form Factor | Rack-mountable |
| Status Indicators | LED Status Indicators: Unit Status Power Status On Line On Battery Replace Battery Overload |
| Manufacturer | Schneider Electric SA |
| Product Name | Smart-UPS X 1920VA Rack/Tower UPS |
| Network Management | USB |
| Product Line | Smart-UPS |
| Surge Energy Rating | 540 J |
| Thermal Dissipation | 59.49 W |
| Waveform Type | Sine Wave |
| Product Series | X |
| Rack Height | 2U |
| Brand Name | APC |
| Plug/Connector Type | NEMA L5-20P |
| Input Voltage Range | 70 V AC - 153 V AC |
| Output Frequency | 60 Hz |
| Alarm | On Battery, Low Battery, Overload, Configurable Delay, Changing Utility Power, UPS Power Condition |
| Country of Origin | Philippines |
| Cord Length | 10 ft |
| Height | 3.35" |
| Width | 17.01" |
| Depth | 26.26" |
| Input Frequency | 60 Hz |
| Phase | Single Phase |
| Receptacle Type | NEMA L5-20P |
| Environmentally Friendly | Yes |
| Battery Energy | 2484 kJ |
| Maximum Operating Temperature | 104°F (40°C) |
| Network (RJ-45) | Yes |
| Serial Port | Yes |
| Number of Batteries | 1 |
| Backup/Run Time (Half Load) | 27.60 Minute |
| Backup/Run Time (Full Load) | 10.90 Minute |
| Battery Characteristics | Maintenance-free, Sealed, Leak-proof |
| Load Capacity (VA) | 1920 VA |
| Load Capacity (Watt) | 1800 W |
| Replaceable Battery | Yes |
| AVR | Yes |
| USB (HID Compliant) Port | Yes |
| Maximum Operating Elevation | 9842.52 ft |
| Maximum Storage Elevation | 49212.60 ft |
| Number of Battery & Surge Outlets | 7 |
| Storage Relative Humidity | 0% - 95% |
| Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
| Transfer Time | 4 ms |
| Typical Battery Recharge Time | 3 Hour |
| Product Color | Black |
| Receptacle Detail | 1 x NEMA L5-20R, 3 x NEMA 5-15R, 3 x NEMA 5-20R |
| Sound Emission (A-Weighted) | 55 dB(A) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Battery Directive |
| Single-use Plastic (SUP) Free Shipping Packaging | No |
